Home >> Chevrolet >> 2002 >> Camaro V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Connector Views >> Rear Defogger

Rear Defogger

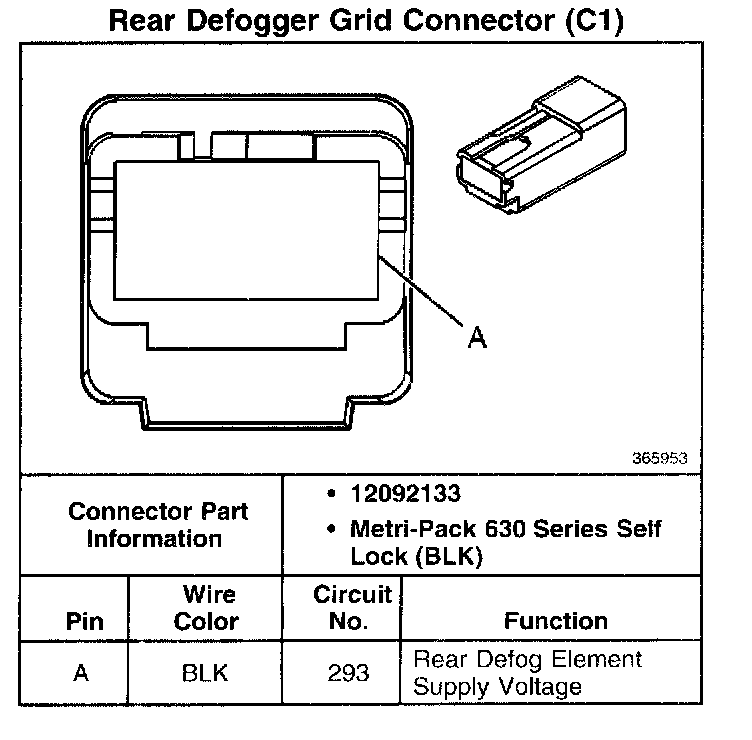

Rear Defogger Grid Connector (C1):

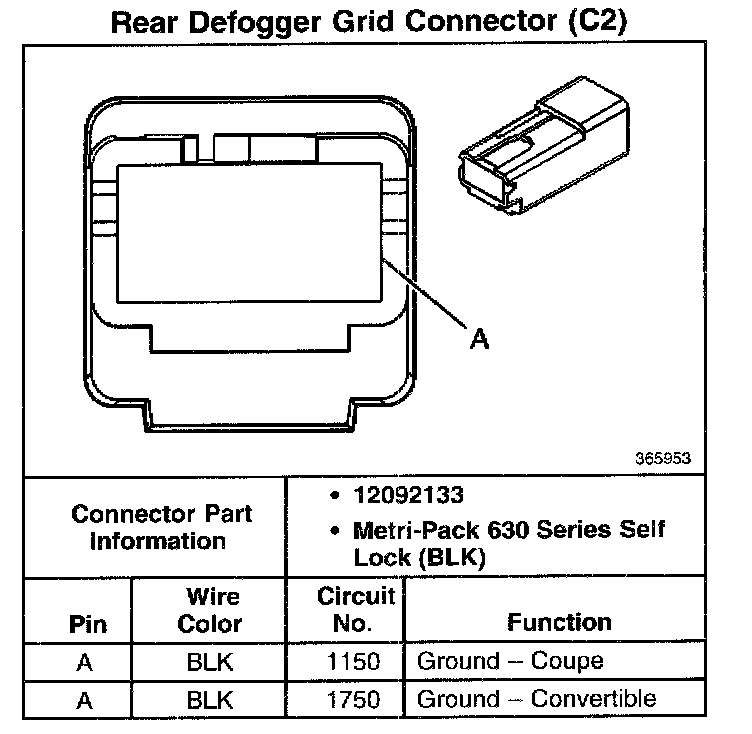

Rear Defogger Grid Connector (C2):
