Chevrolet
>>
2001
>>
Lumina V6-3.1L VIN J
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Computers and Control Systems
>>
Body Control Module
Body Control Module

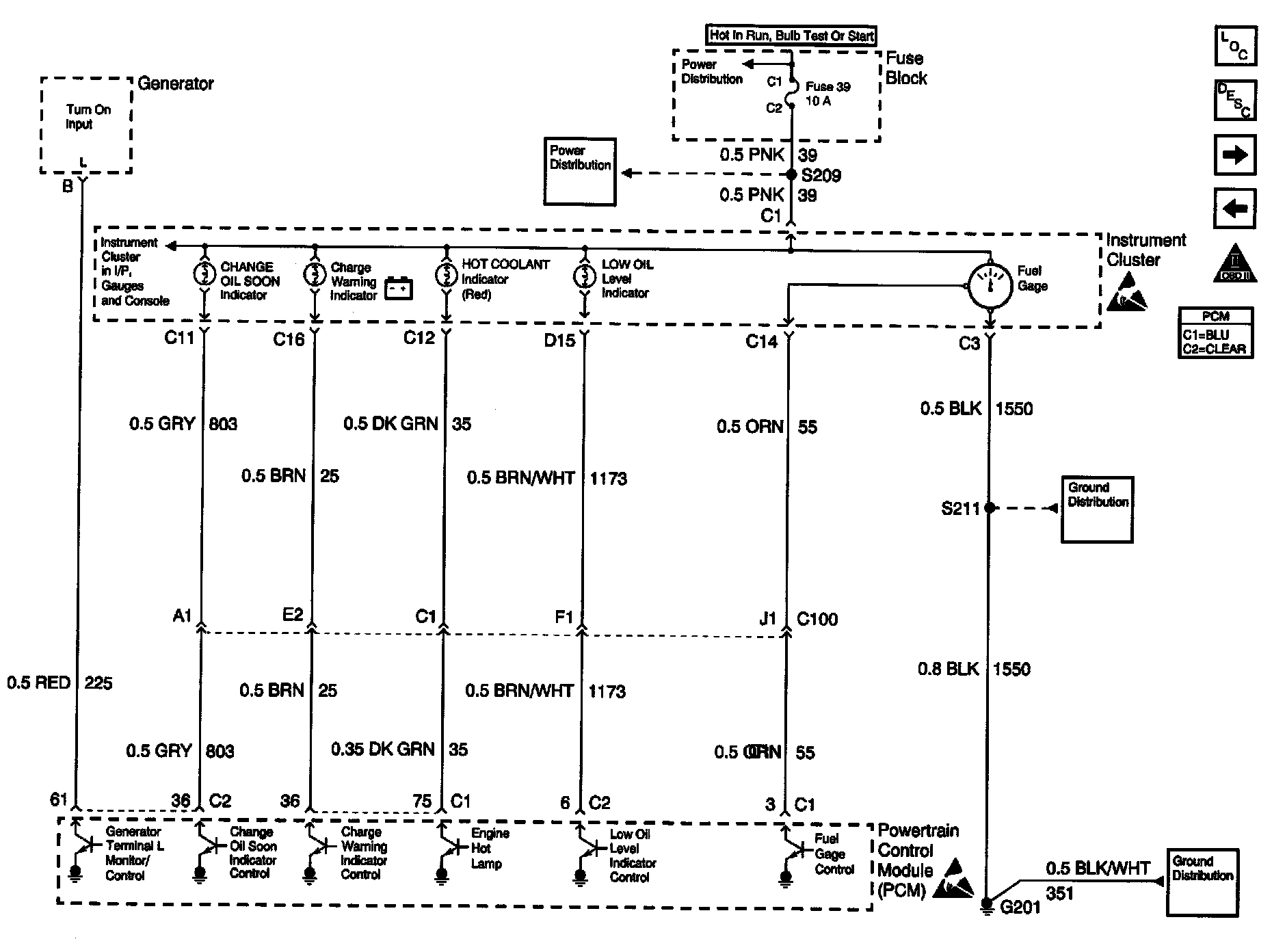

Engine Controls Schematics: I/P And Generator:
