Chevrolet
>>
2000
>>
Monte Carlo V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse Block
>>
Application and ID
>>
Instrument Panel Fuse Blocks
>>
RH Instrument Panel Fuse Block
>>

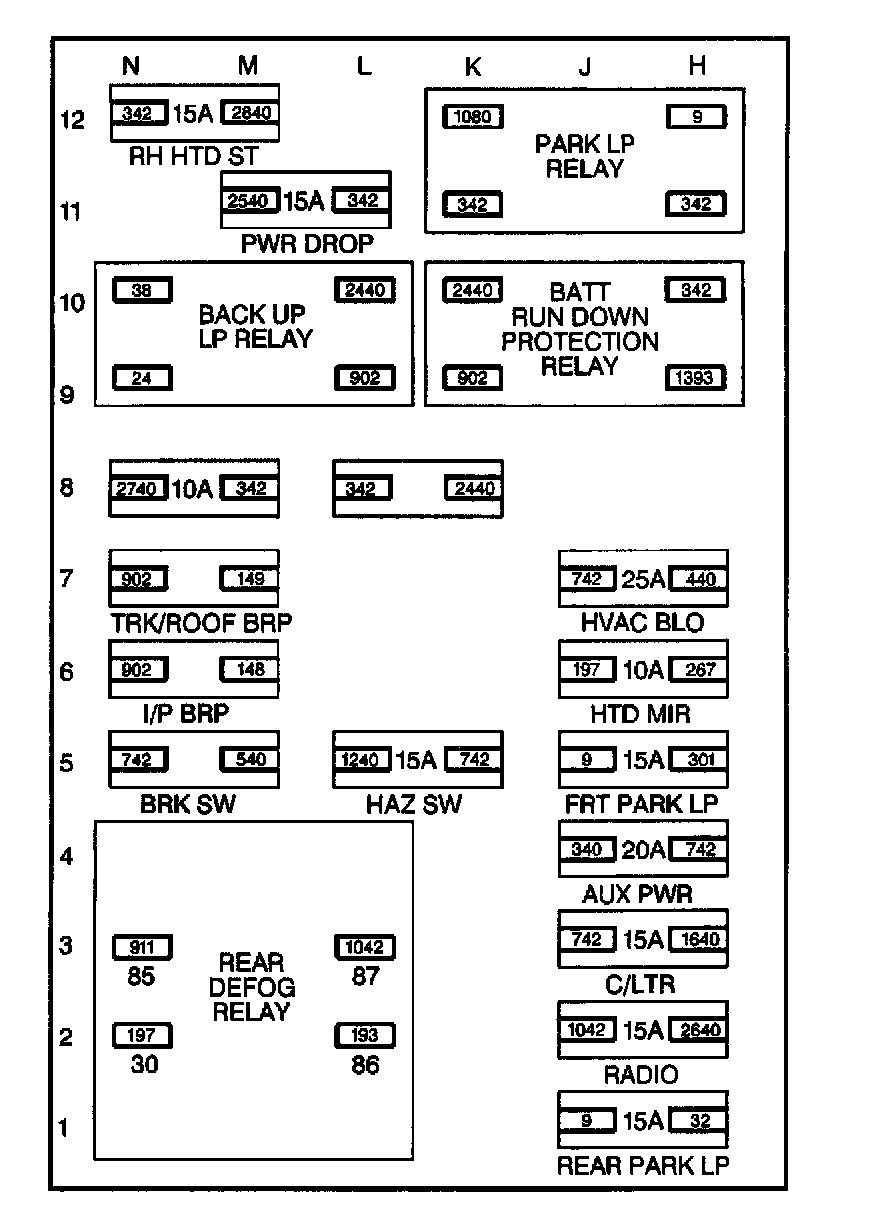

RH Instrument Panel Fuse Block, Top View
RH Instrument Panel Fuse Block, Top View
RH Instrument Panel Fuse Block, Top View:
