Chevrolet
>>
1998
>>
Corvette V8-5.7L VIN G
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Relays and Modules - Computers and Control Systems
>>
Body Control Module
>>
Diagrams
>>
Electrical Diagrams
>>
Folding Top & Rear Fog Lamp Control
Folding Top & Rear Fog Lamp Control

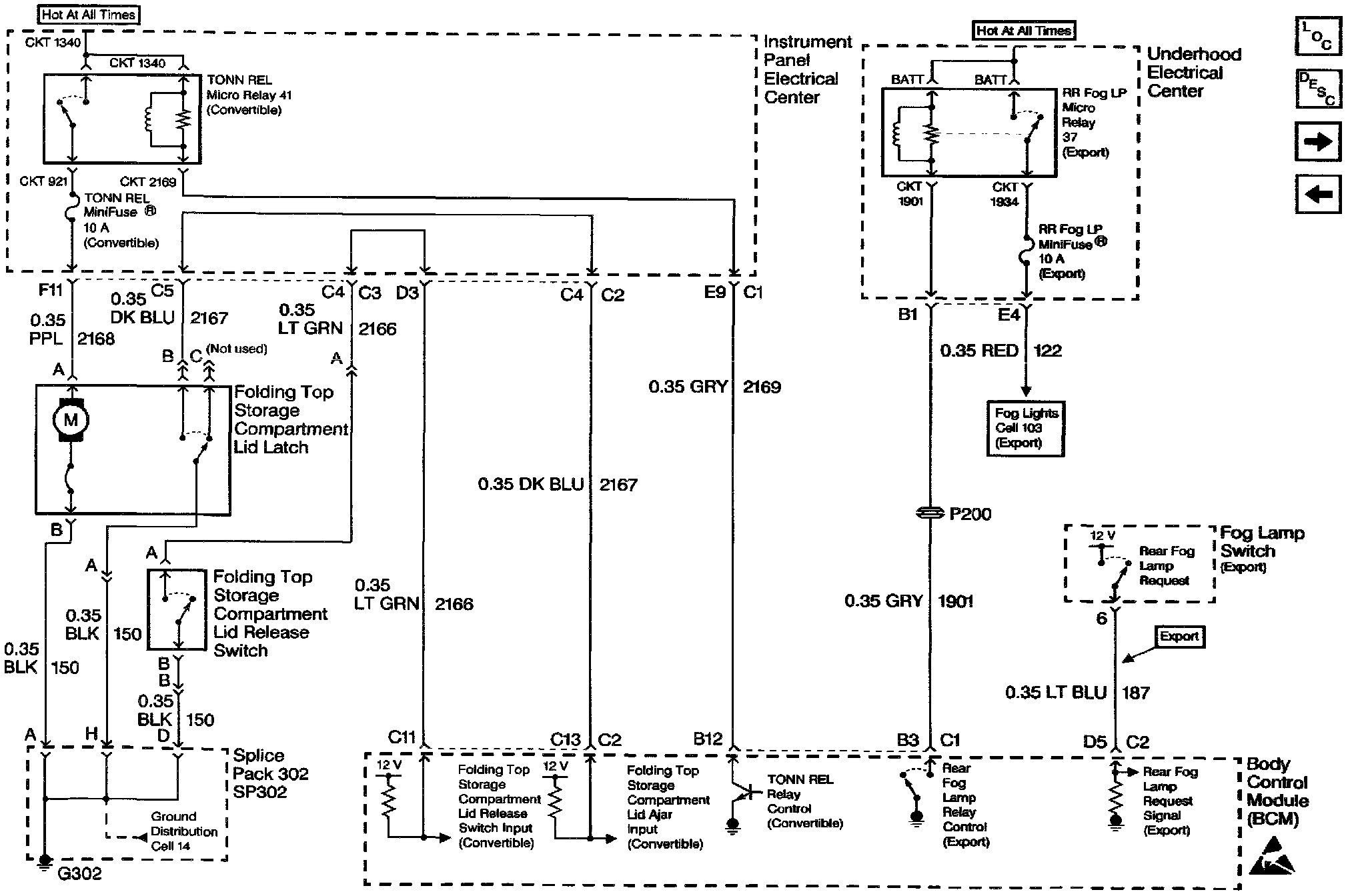

Body Control Module Schematics: Folding Top & Rear Fog Lamp Control:
