Lamp & Monitored Relay Control
Lamp & Monitored Relay Control

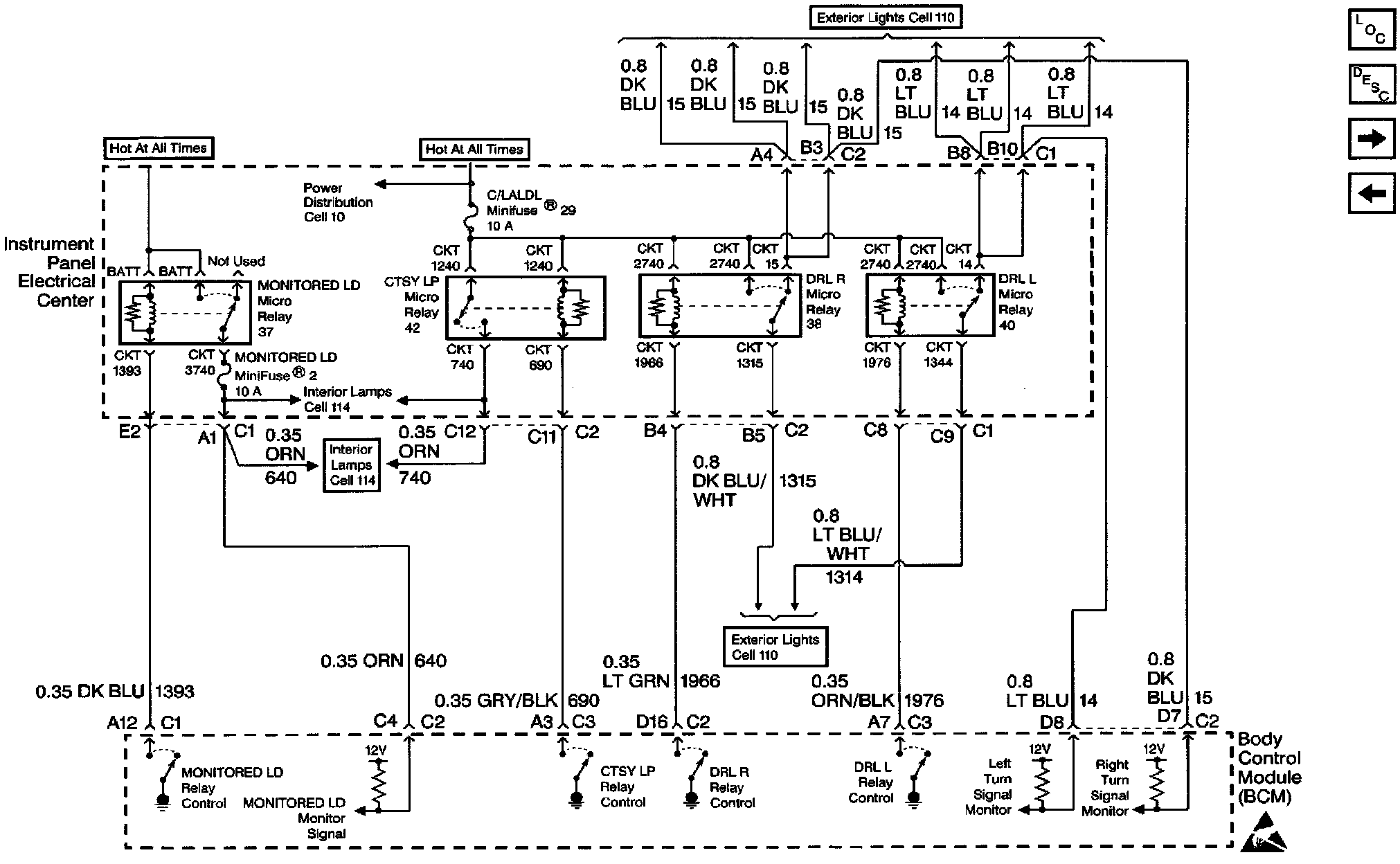

Body Control Module Schematics: Lamp & Monitored Relay Control:
