Home
>>
Chevrolet
>>
1998
>>
Camaro V8-5.7L VIN G
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Oxygen Sensor
>>
Diagrams
>>

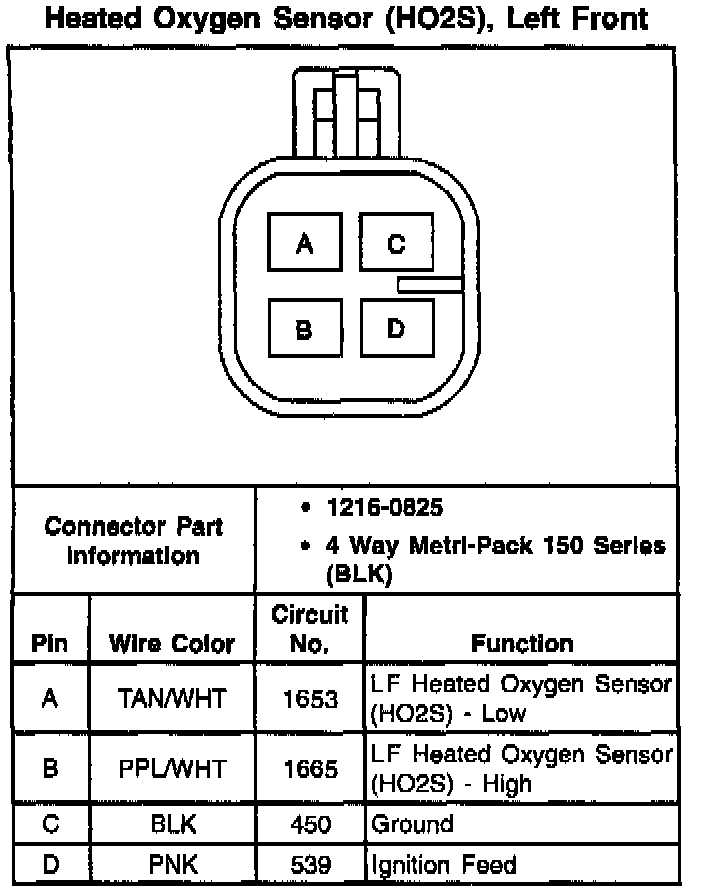

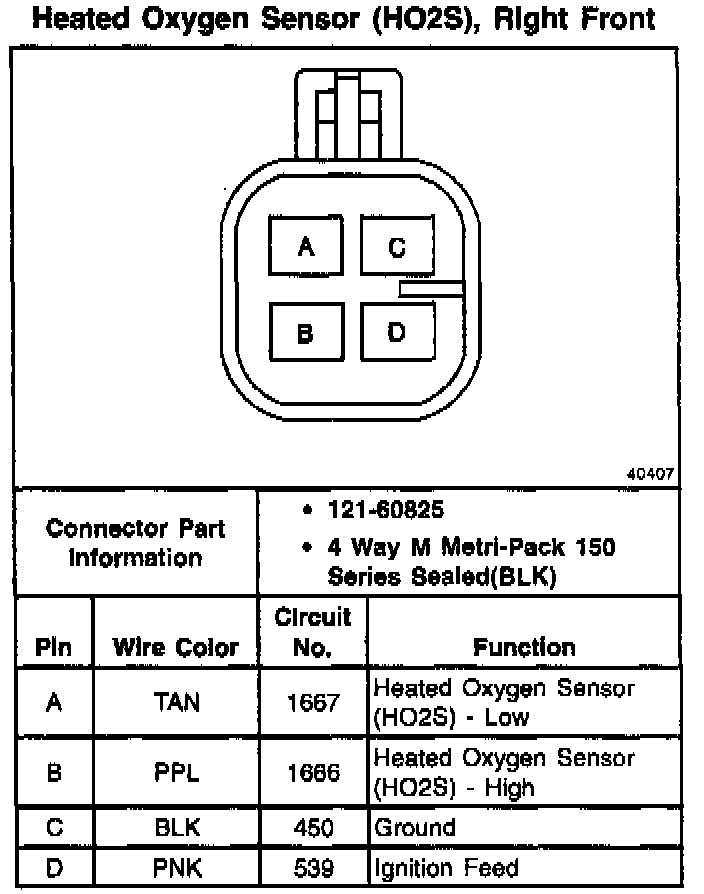

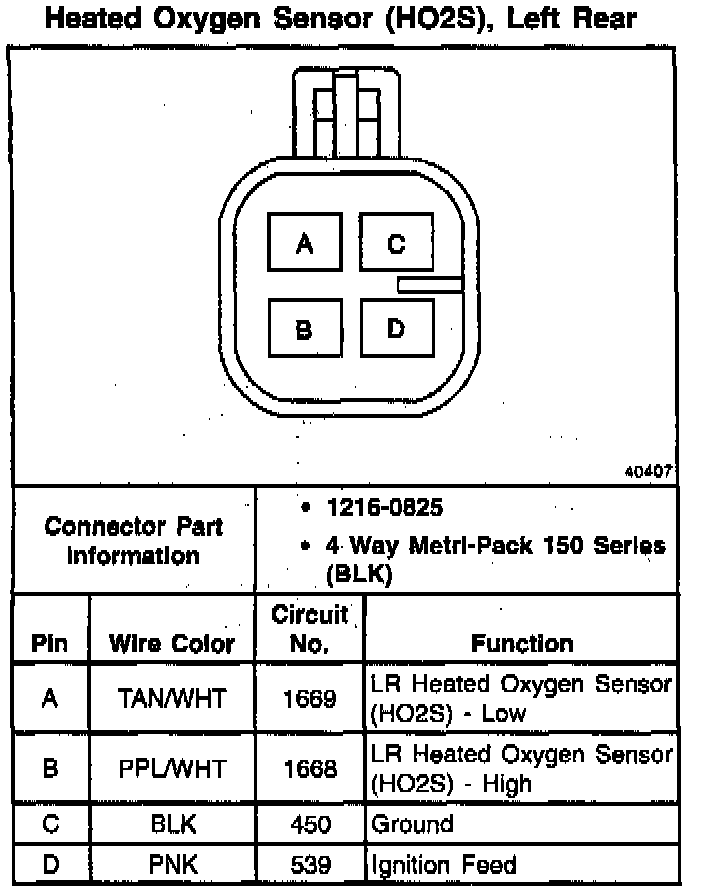

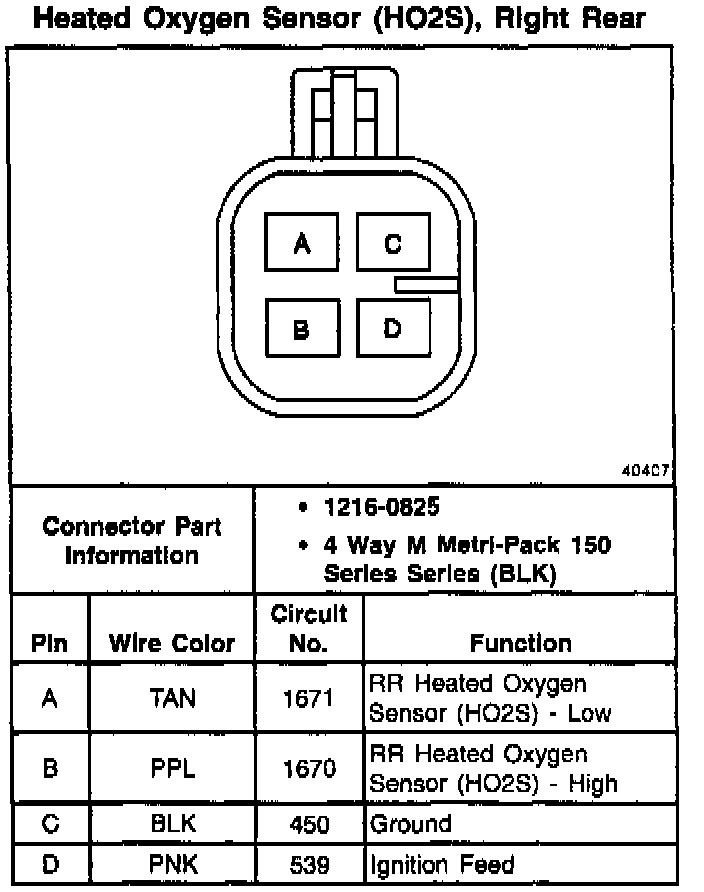

Connector Views
Connector Views
Connector:
Connector:
Connector:
Connector:
