Home >> Chevrolet >> 1998 >> Camaro V6-3.8L VIN K >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Relays and Modules - Computers and Control Systems >> Engine Control Module >> Diagrams >> Connector Views >> C2 (Clear) >> Harness Connector

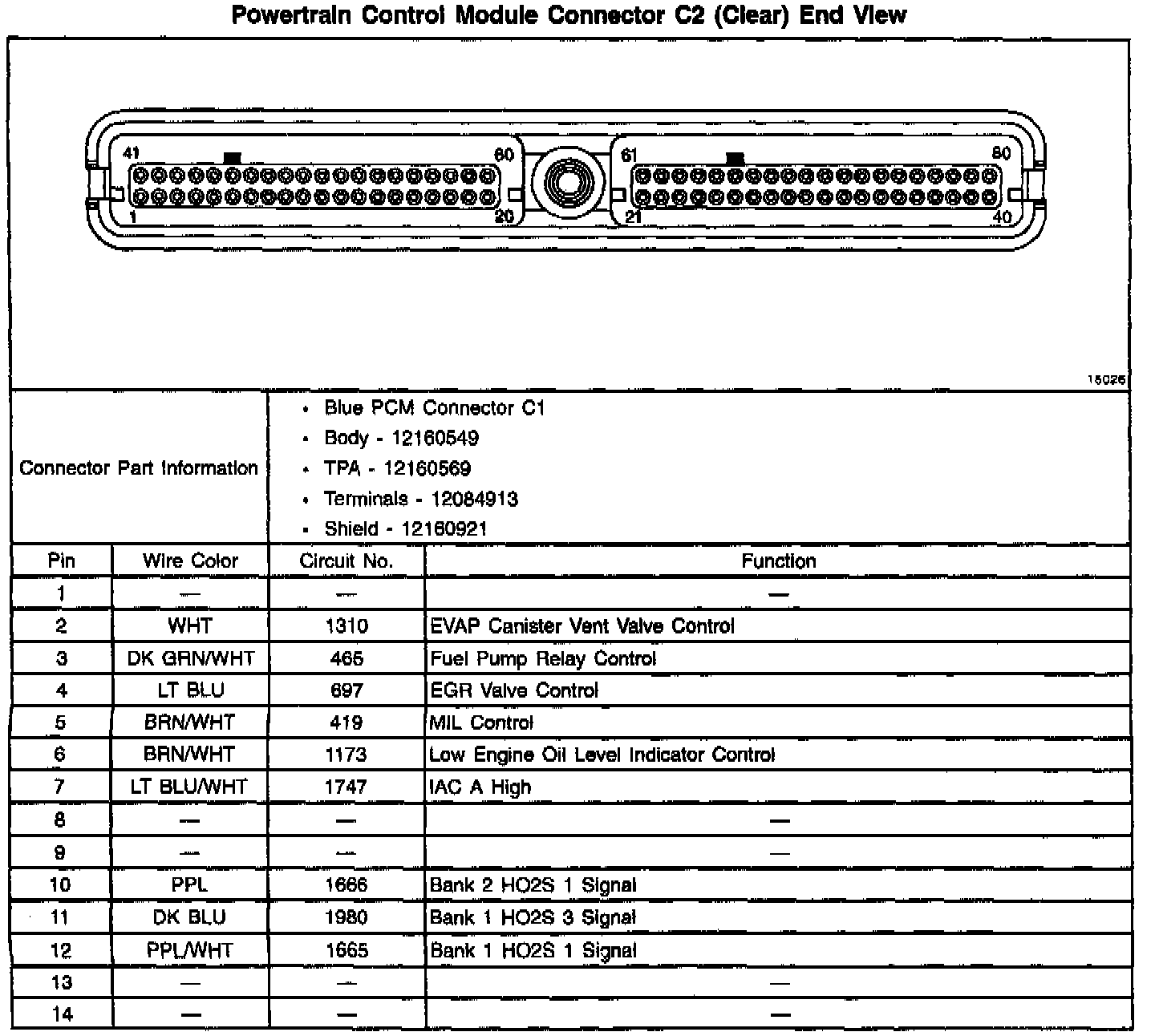

Harness Connector

C2 (CLEAR) 1-14:
