Home >> Chevrolet >> 1998 >> Camaro V6-3.8L VIN K >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Diagrams >> Connector Views >> C1 (Blue) >> Pin Information >> Pins 68-80

Pins 68-80

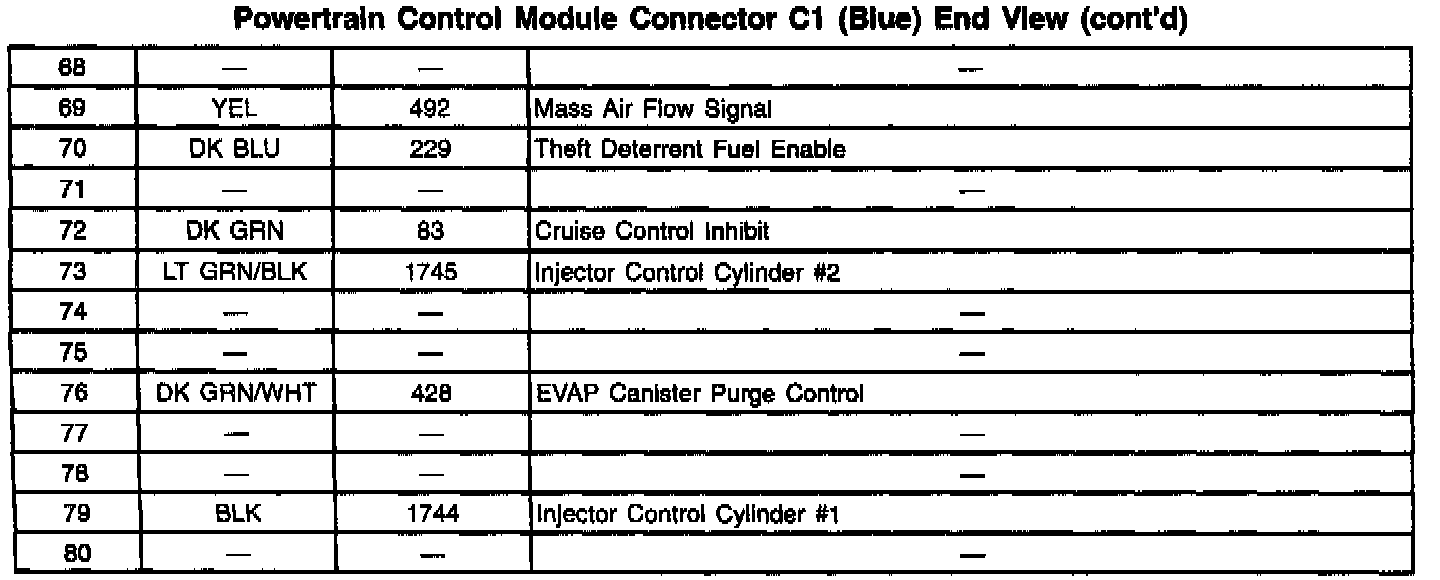

C1 (BLUE) 68-80:
