Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1996
>>
Camaro V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Cuts Out/Misses
Cuts Out/Misses

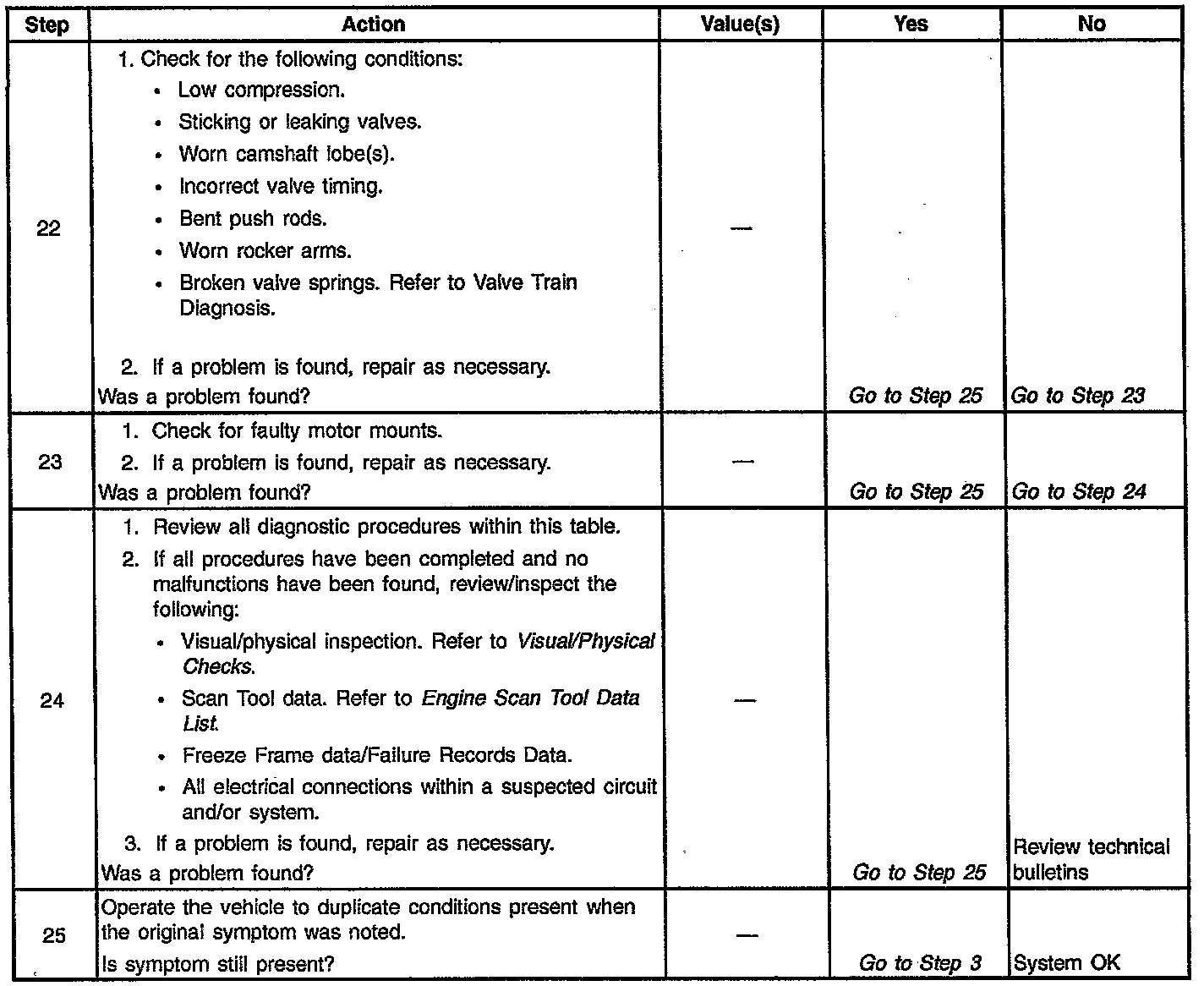

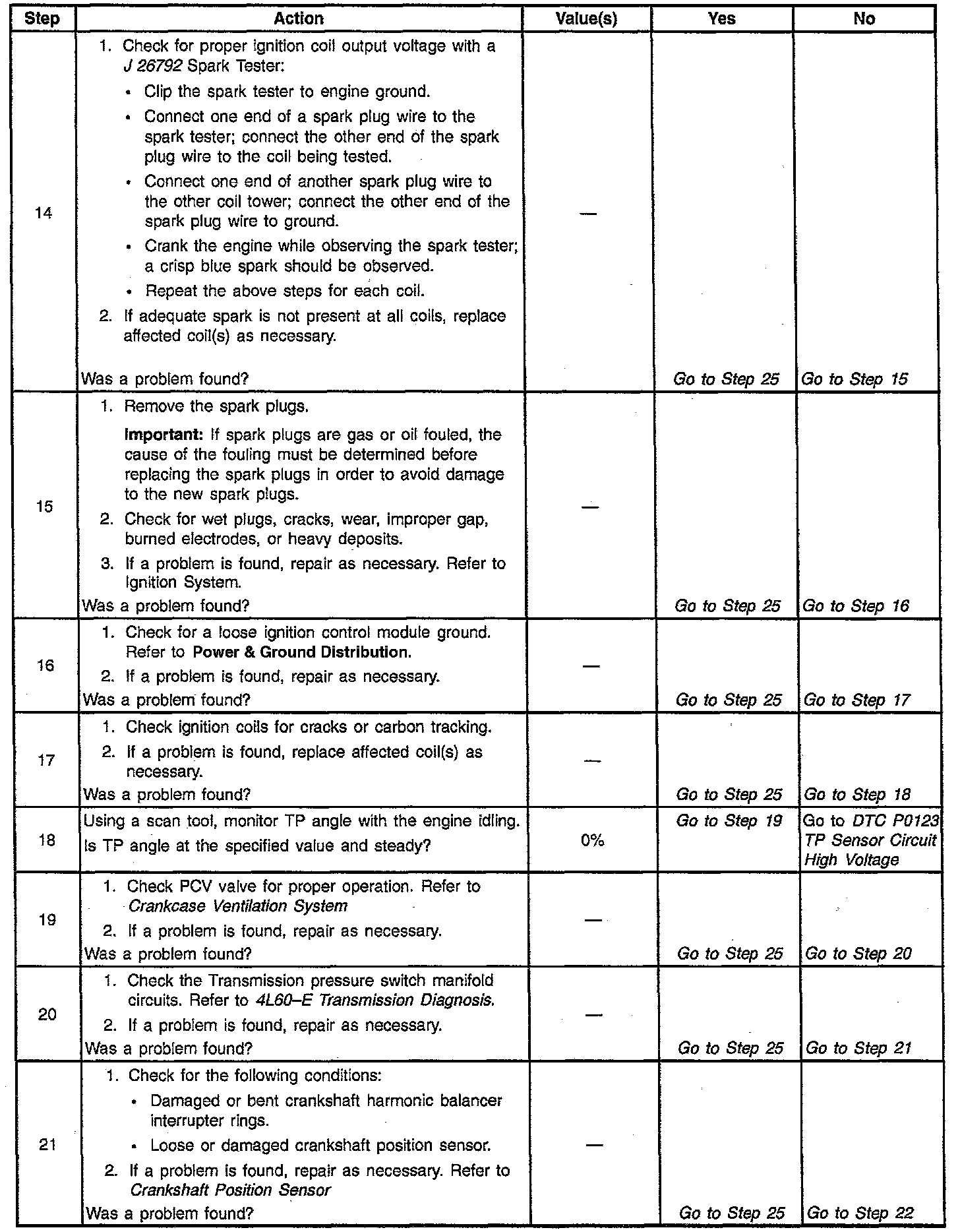

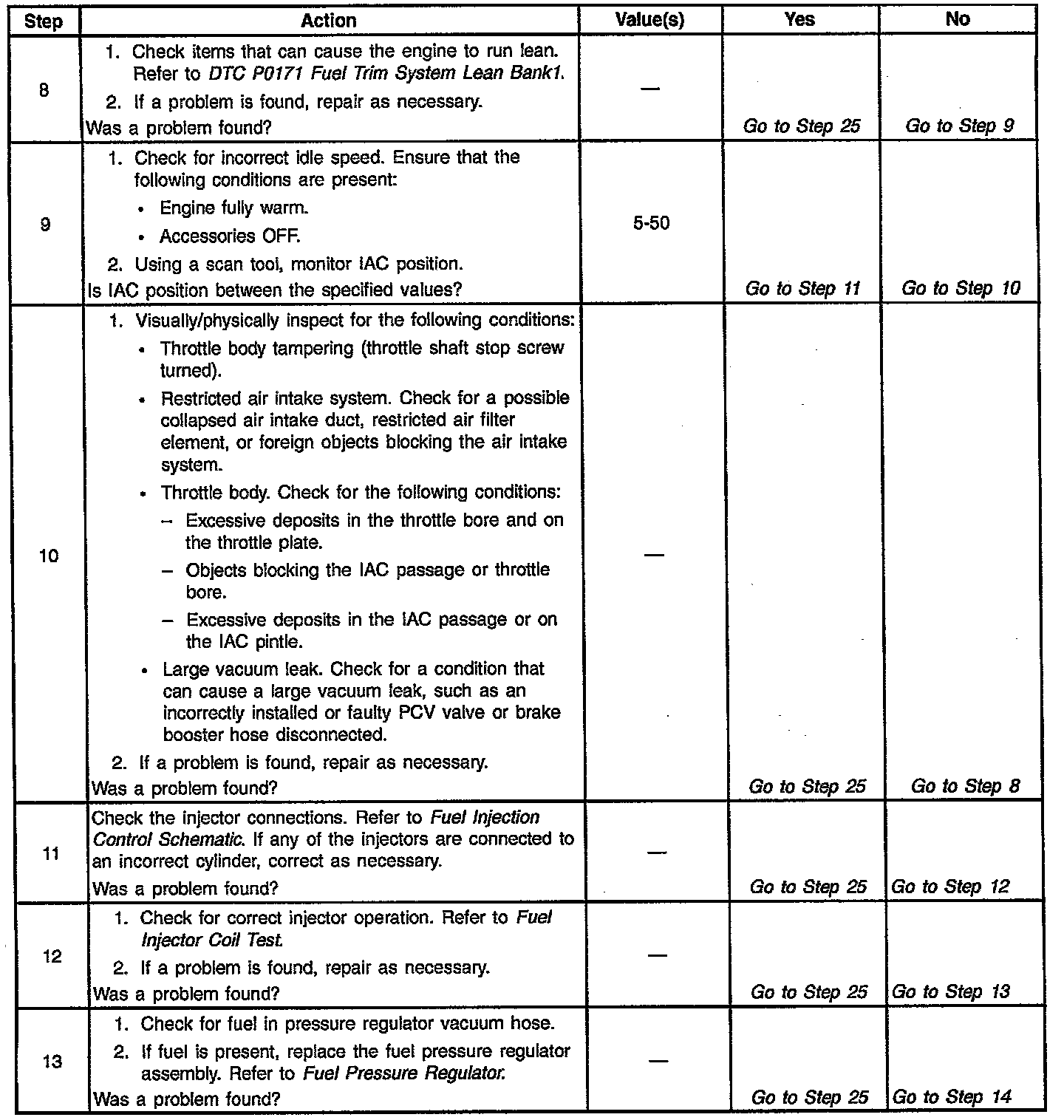

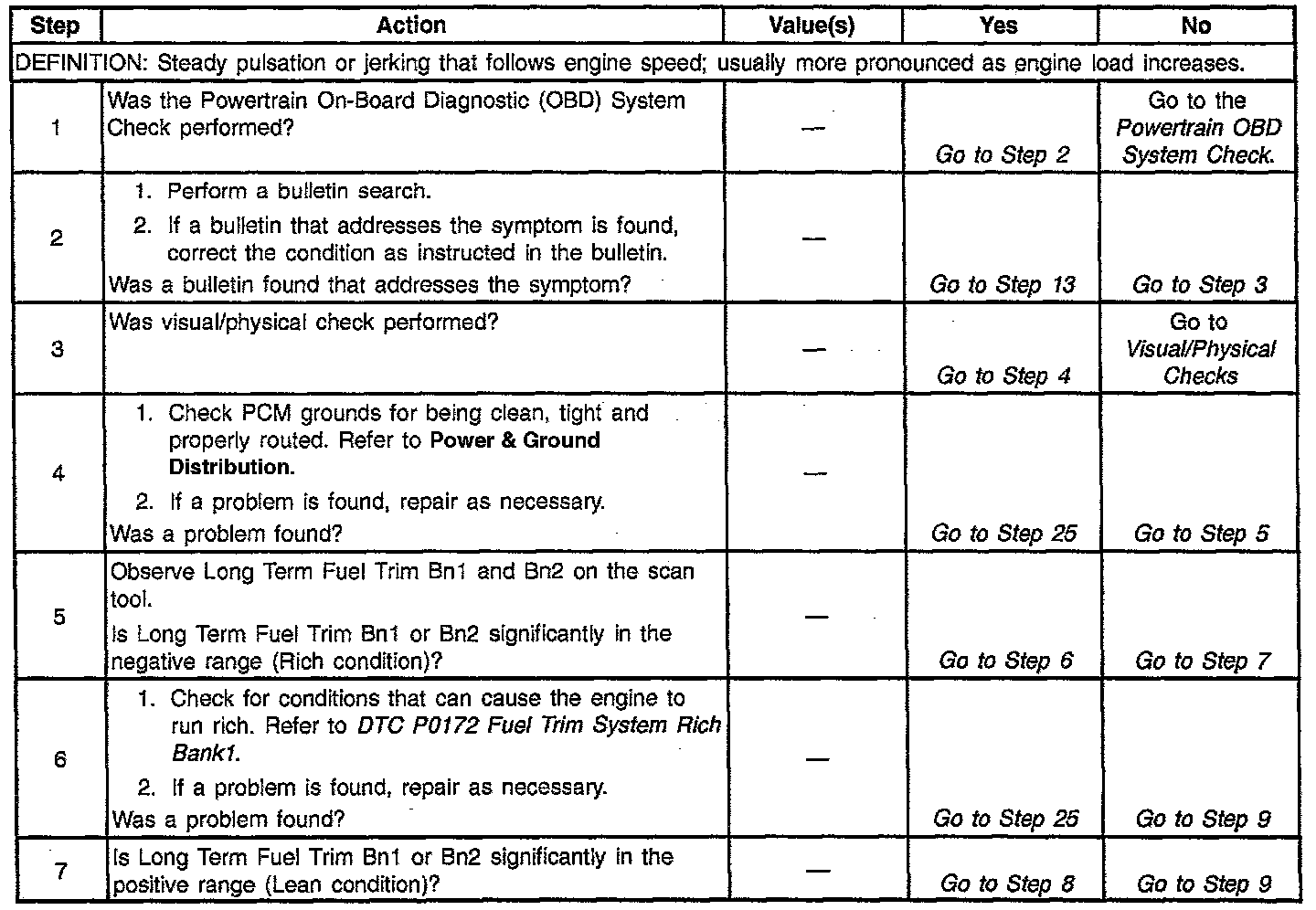

Diagnostic Chart:
Diagnostic Chart (cont'd):
Diagnostic Chart (cont'd):
Diagnostic Chart (cont'd):
