Home >> Chevrolet >> 1990 >> Beretta V6-191 3.1L >> Repair and Diagnosis >> Heating and Air Conditioning >> Compressor HVAC >> Testing and Inspection >> Component Tests and General Diagnostics >> A: ECM Compressor Control Test >> Table 2

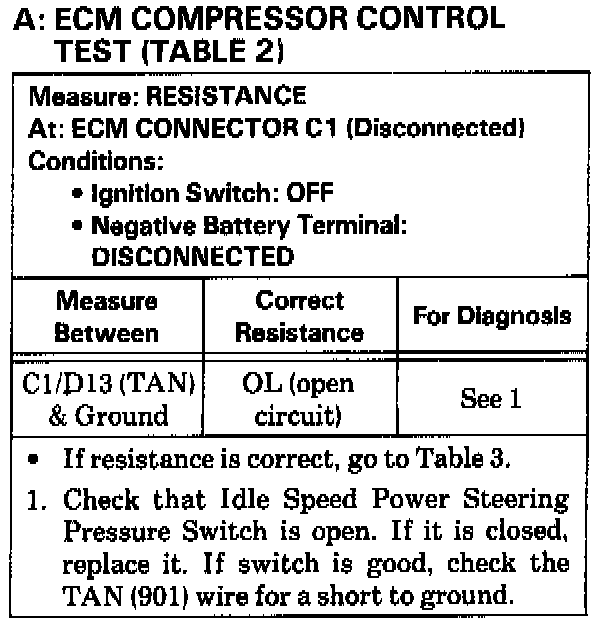

Table 2

Test A ( Table 2 ):
