A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
DTC 21
>>
Full Function System
Full Function System

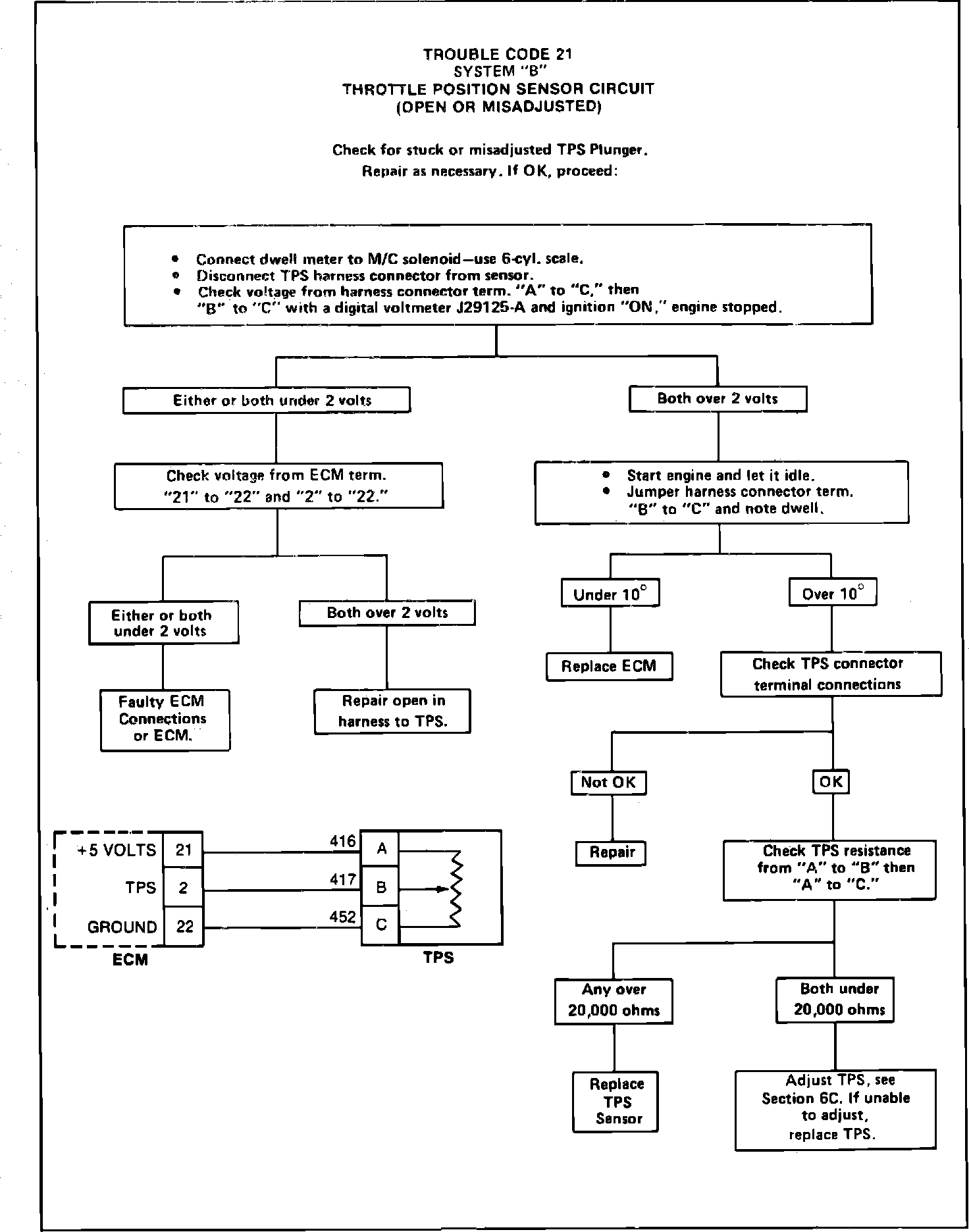

Fig. 16 Code 21 Throttle Position Sensor Circuit:
