Ultrasonic Sensor, Antitheft
>>
Intrusion Sensor Defeat Switch (Export)
Intrusion Sensor Defeat Switch (Export)

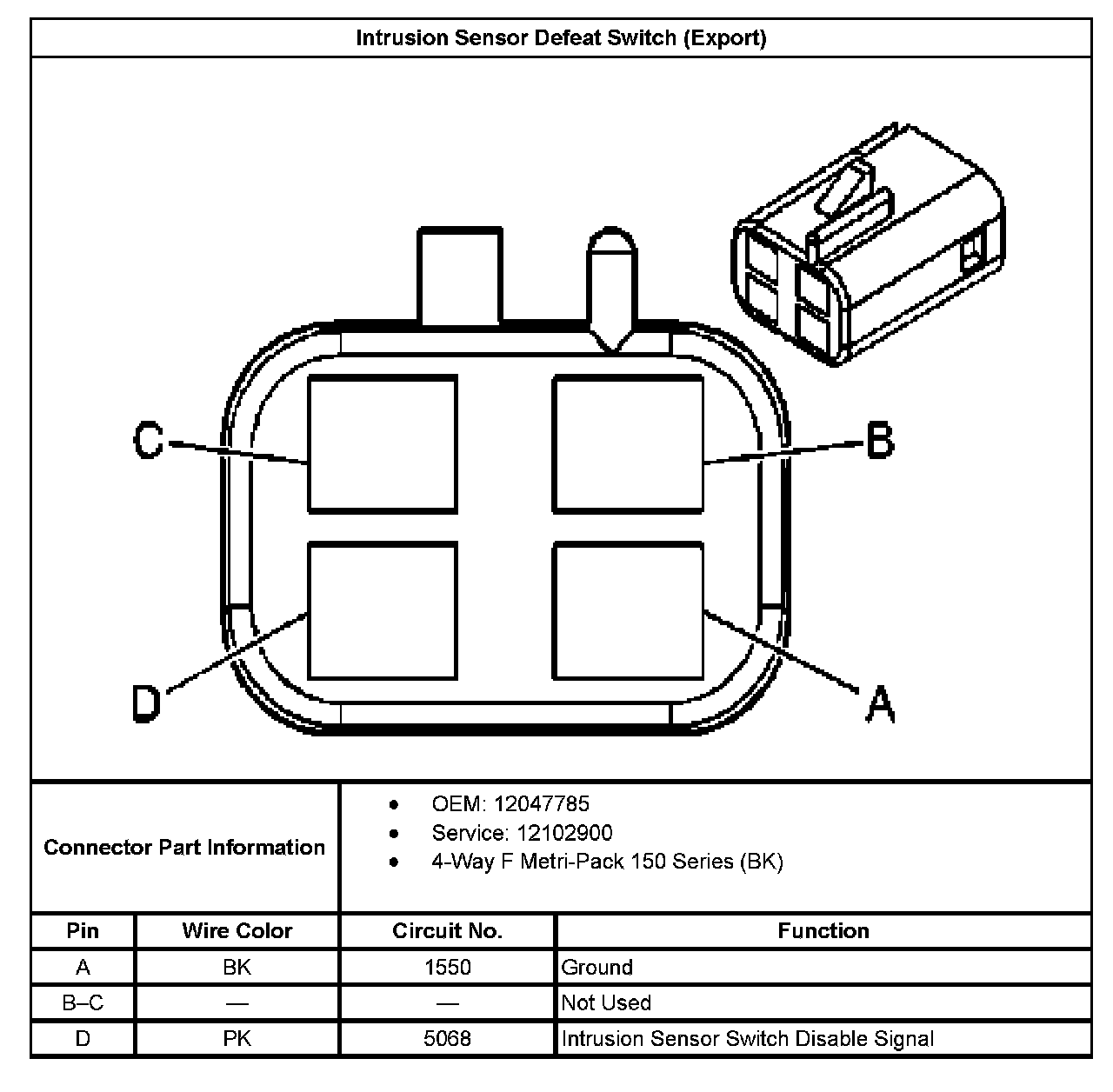

Intrustion Sensor Defect Switch (Export):
