Left Cylinder Head Rear Face

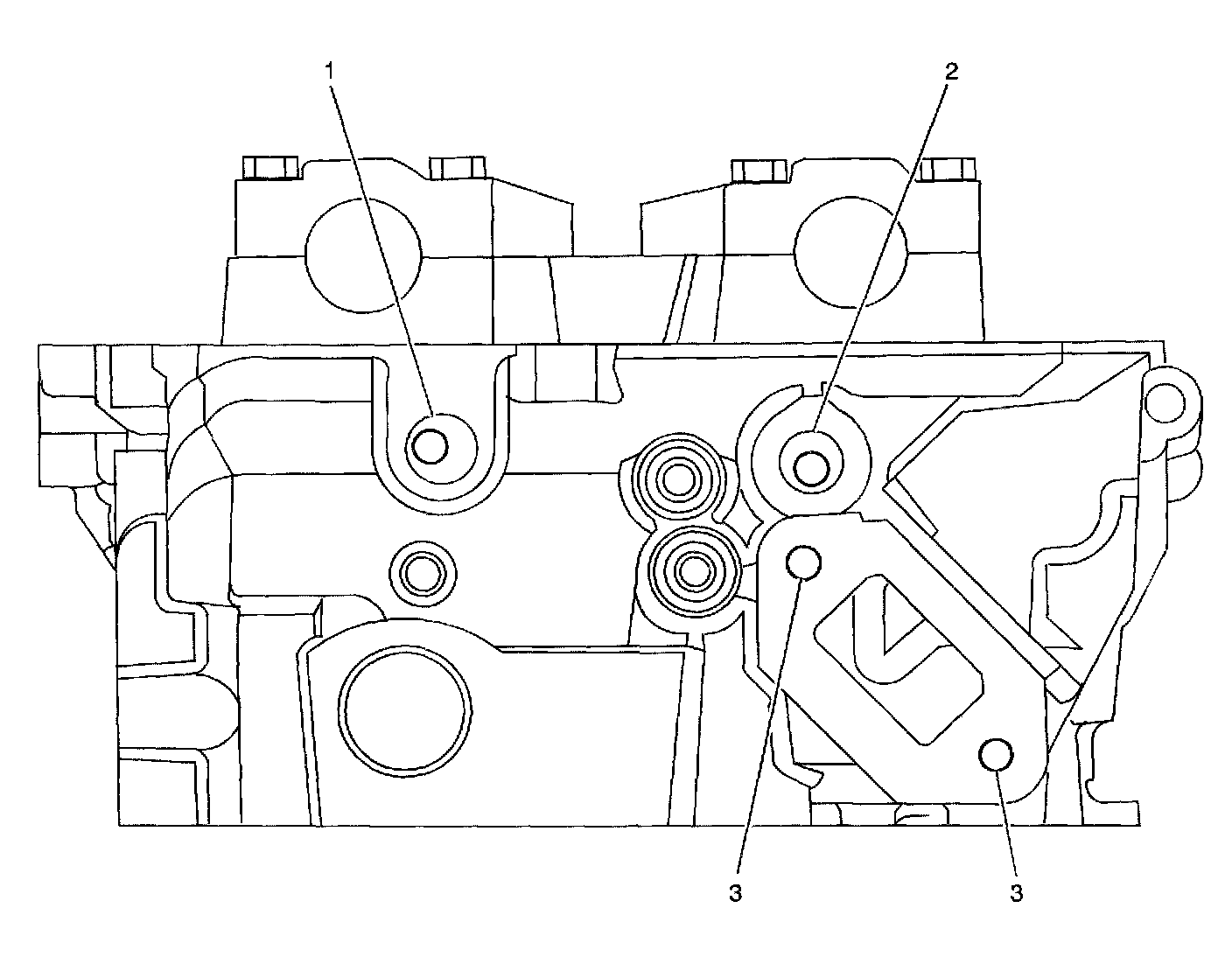

Left Cylinder Head Rear Face Part 1:

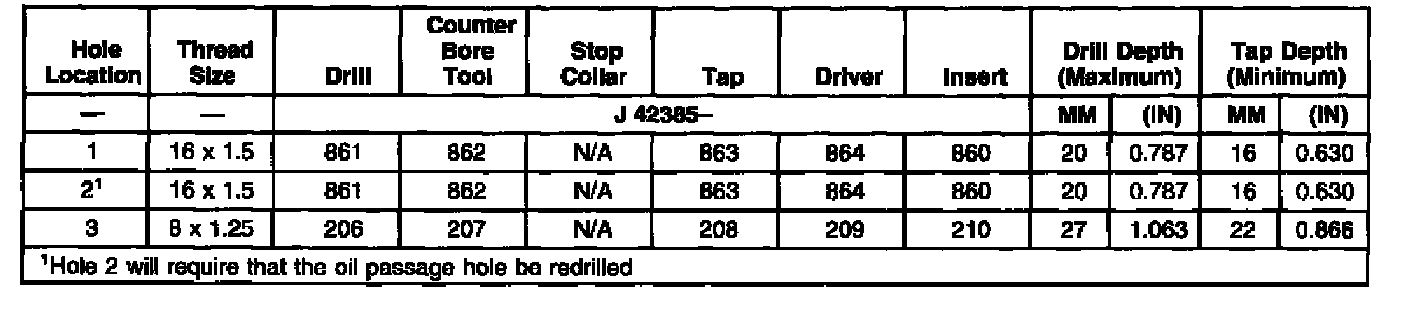

Left Cylinder Head Rear Face Part 2:
