Home >> Cadillac >> 2004 >> DeVille V8-4.6L VIN 9 >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Thread Repair Specifications >> Engine Block Left Deck Face

Engine Block Left Deck Face

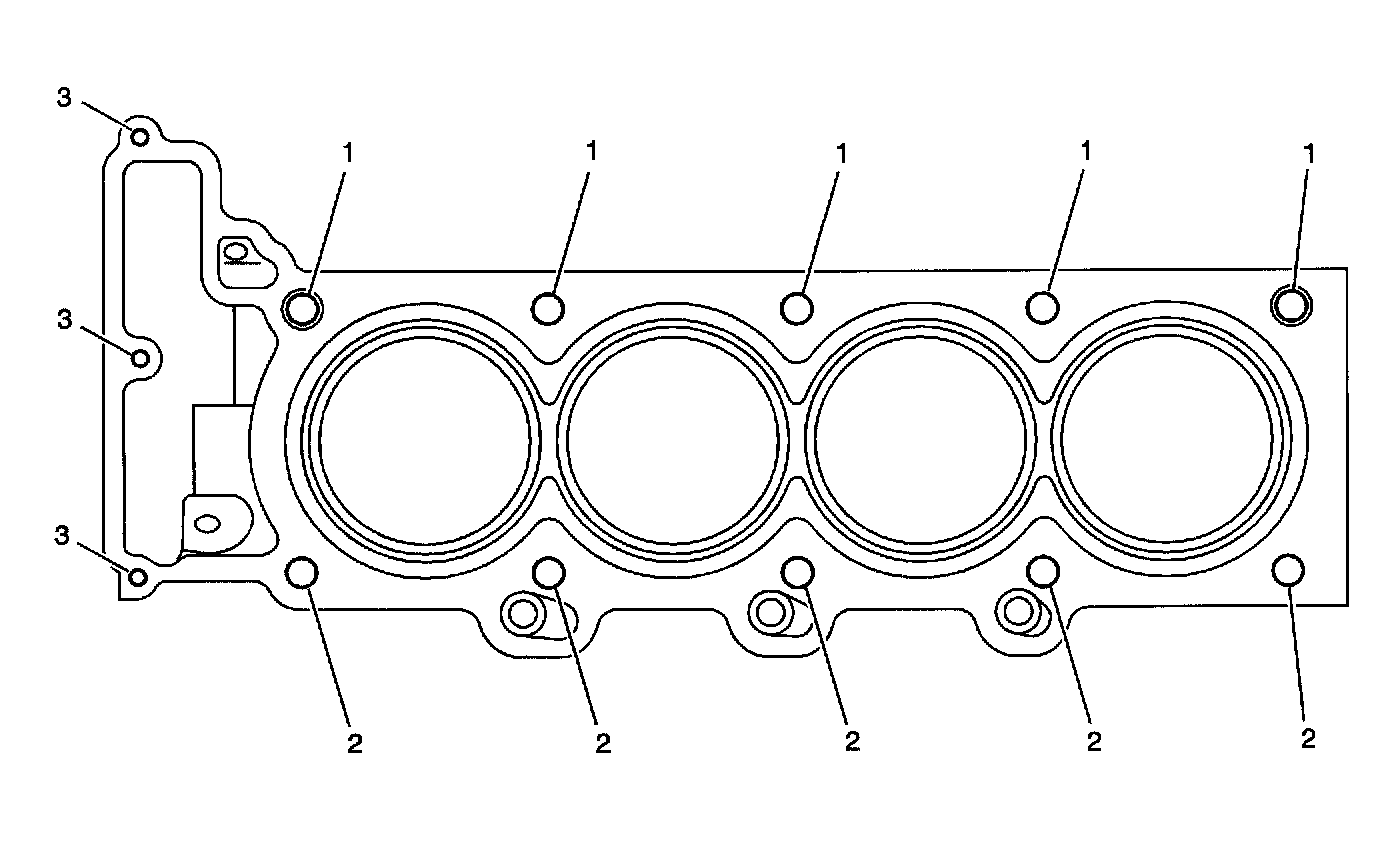

Engine Block Left Deck Face Part 1:

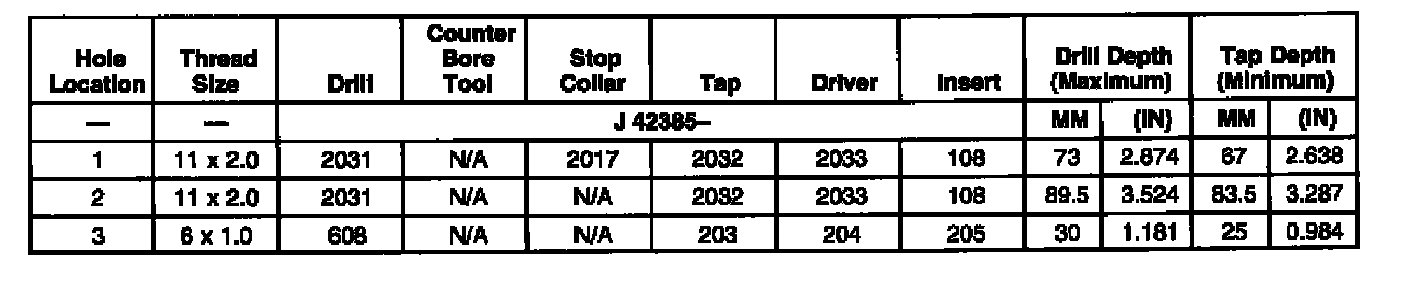

Engine Block Left Deck Face Part 2:
