Oil Pressure Sensor
>>
Diagrams
>>
Connector Views
Connector Views

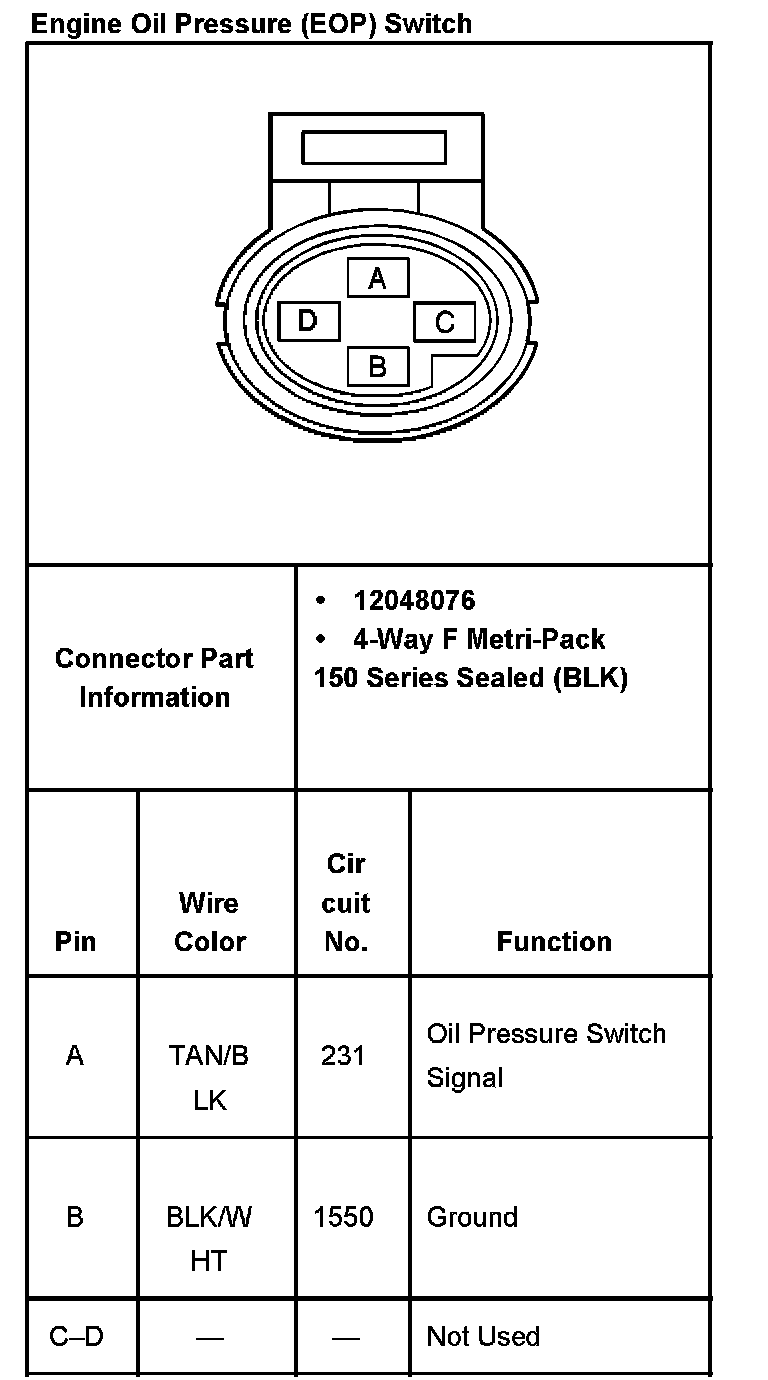

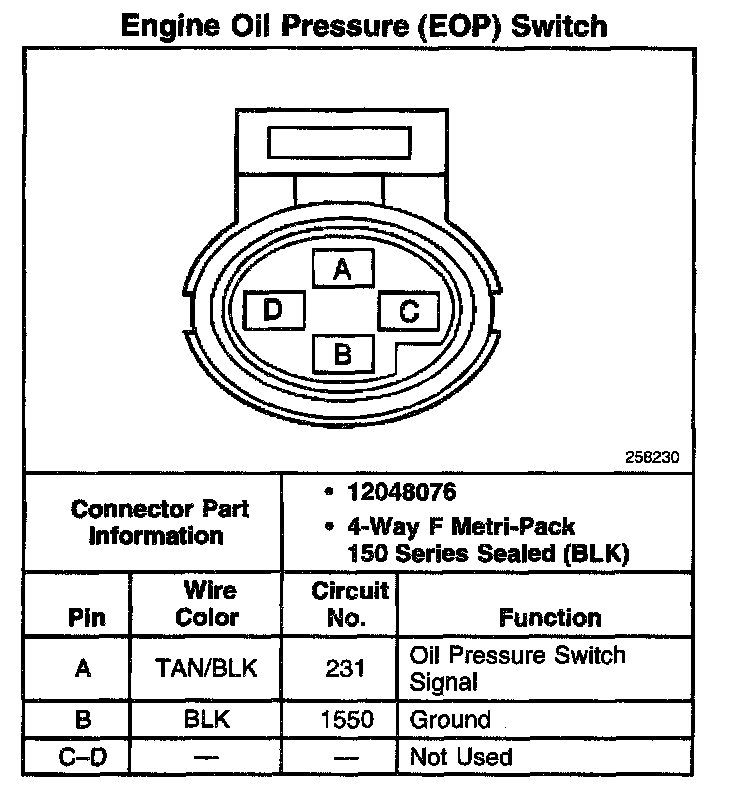

Engine Oil Pressure (EOP) Switch:
Engine Oil Pressure (EOP) Switch:
