Curiosii for ever!: Car repair manuals for everyone.
Home >> Cadillac >> 2003 >> DeVille V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> Upper Control Valve Body Assembly

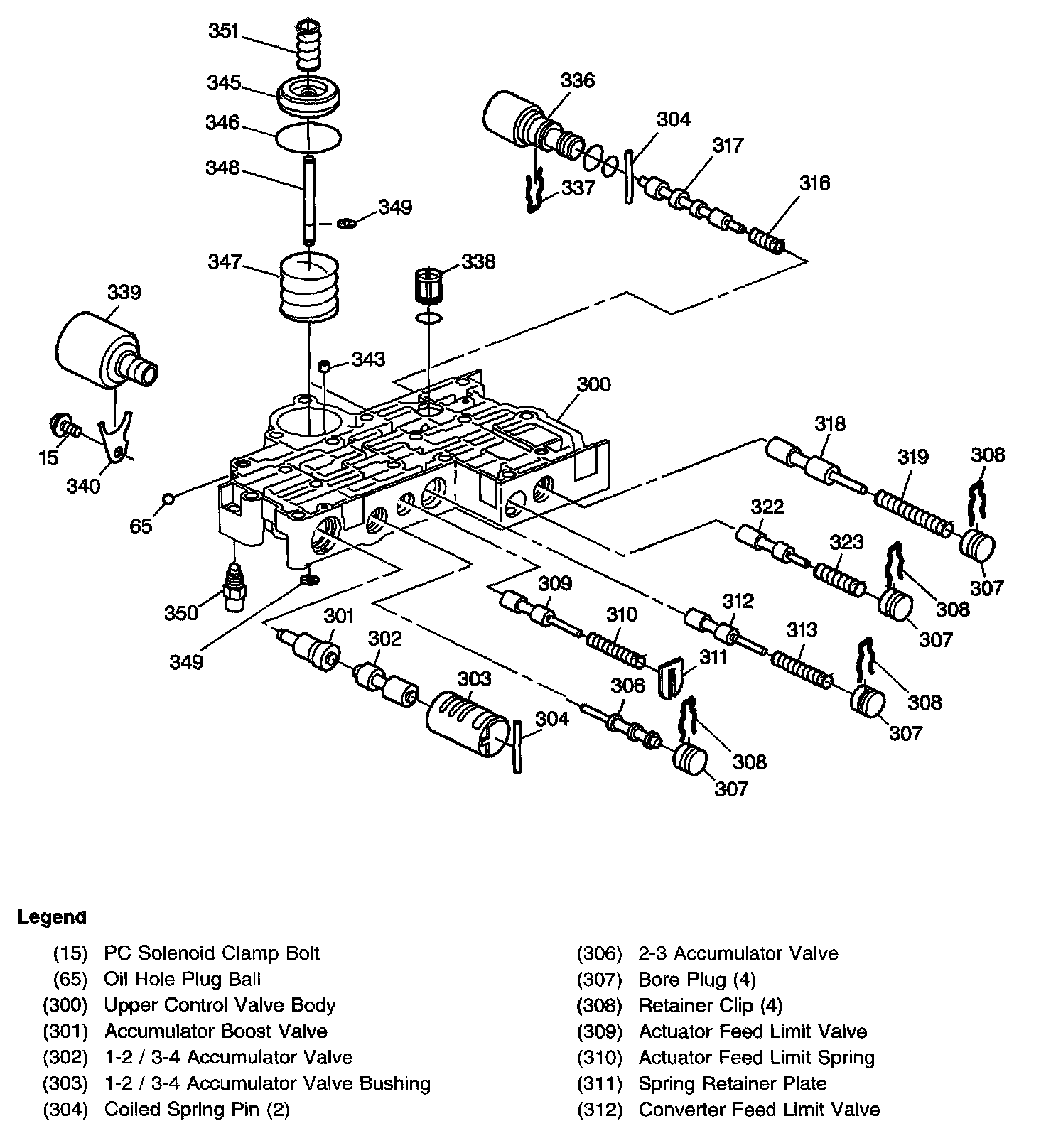

Upper Control Valve Body Assembly

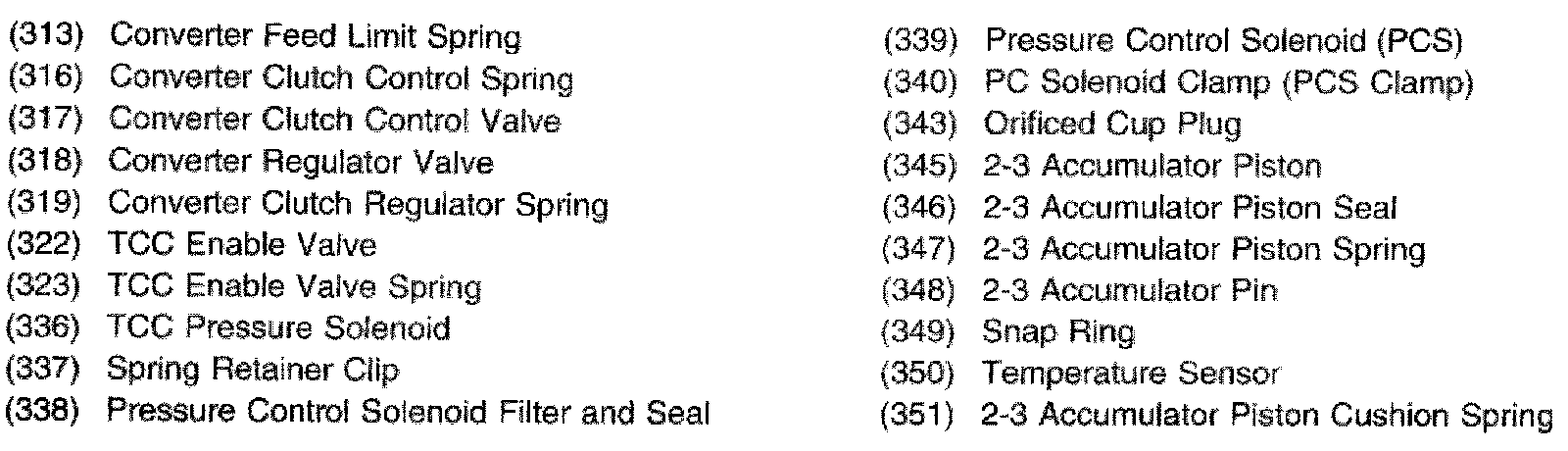

Upper Control Valve Body Assembly (continues):



Upper Control Valve Body Assembly:
