Home
>>
Cadillac
>>
2003
>>
DeVille V8-4.6L VIN 9
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
Final Drive Assembly
Final Drive Assembly

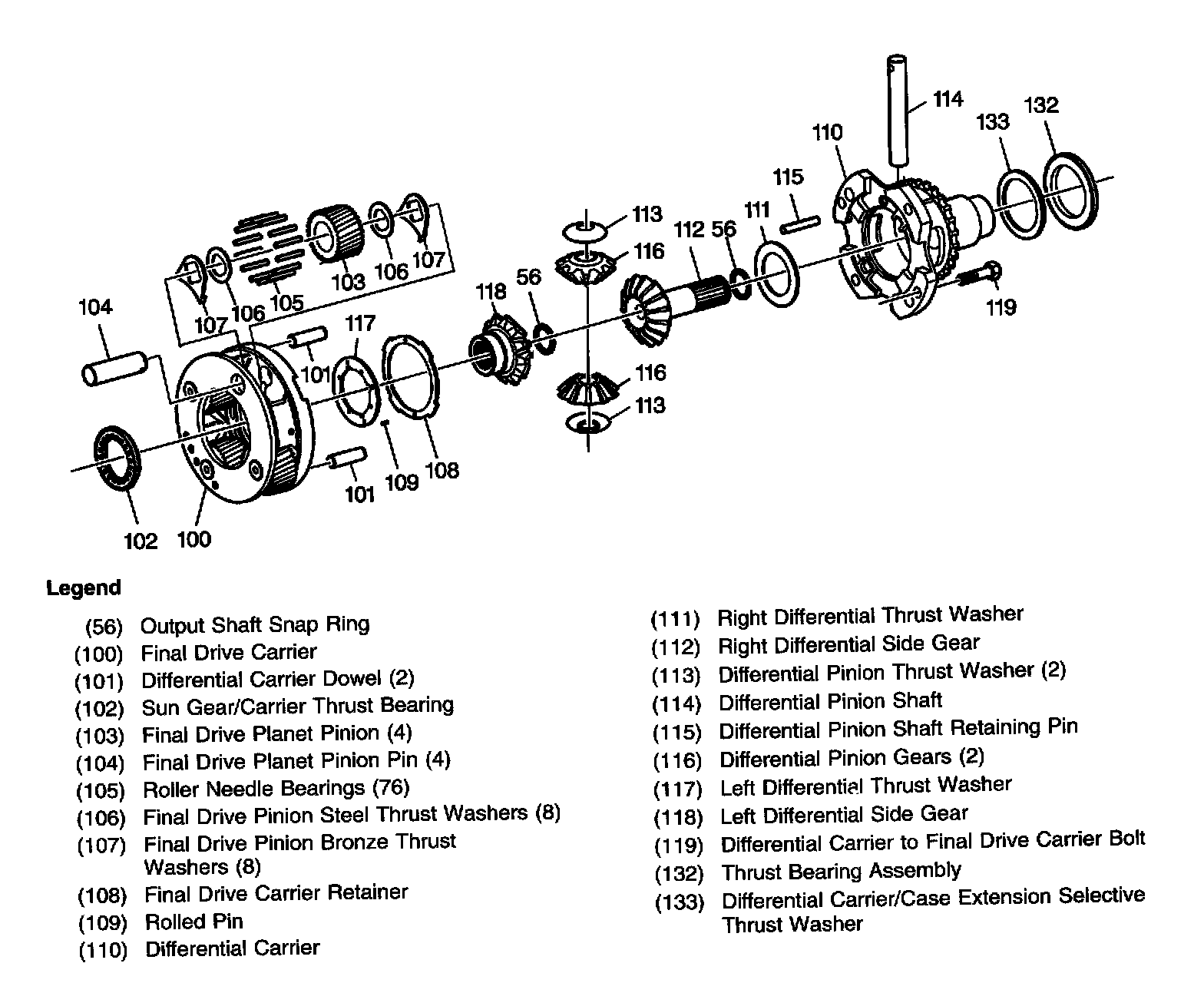

Final Drive Assembly:
