Navigation System
>>
TV Antenna Module
TV Antenna Module

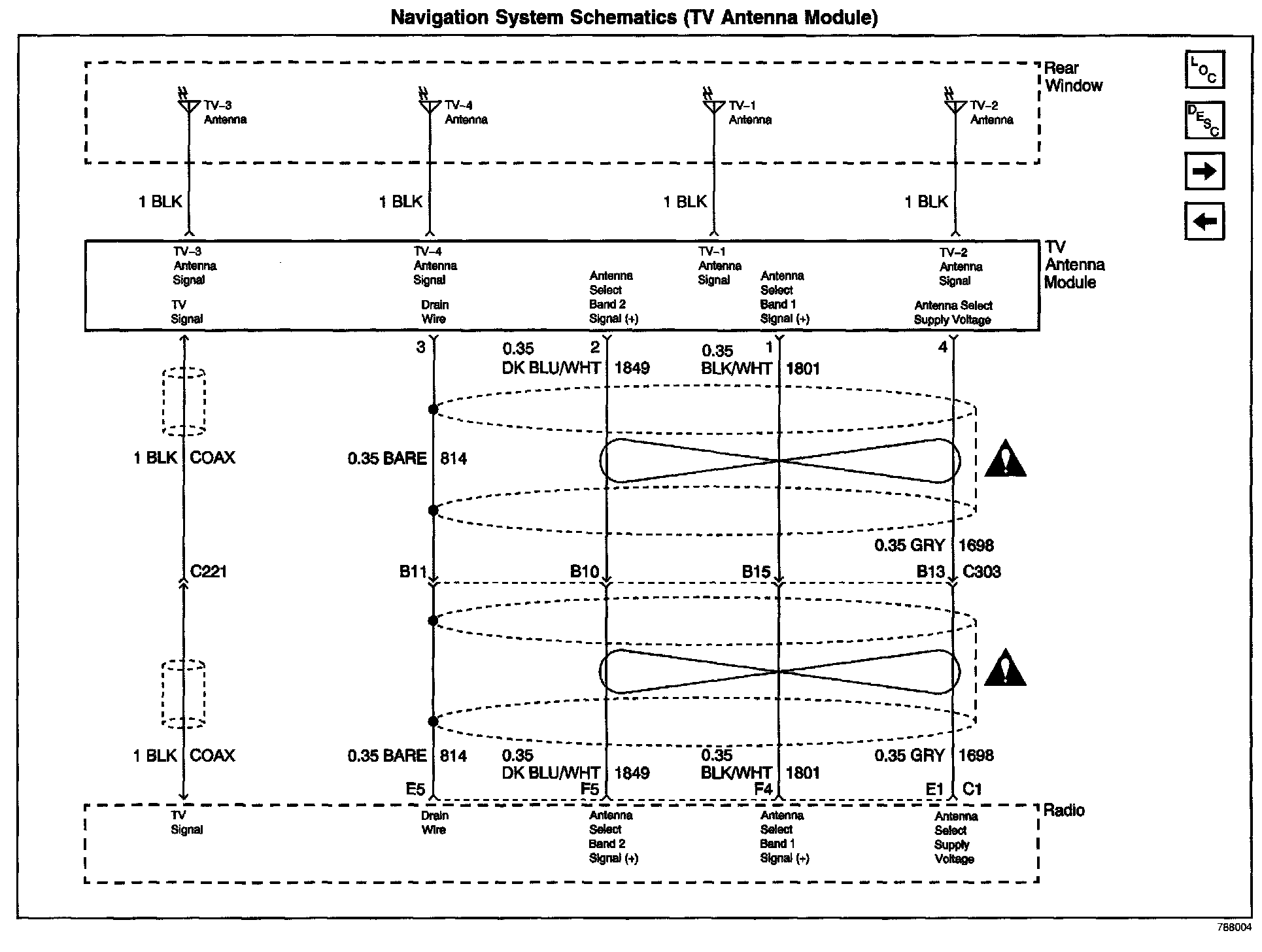

Navigation System Schematics: TV Antenna Module:
