Door Module
>>
Power Door Serial Data
Power Door Serial Data

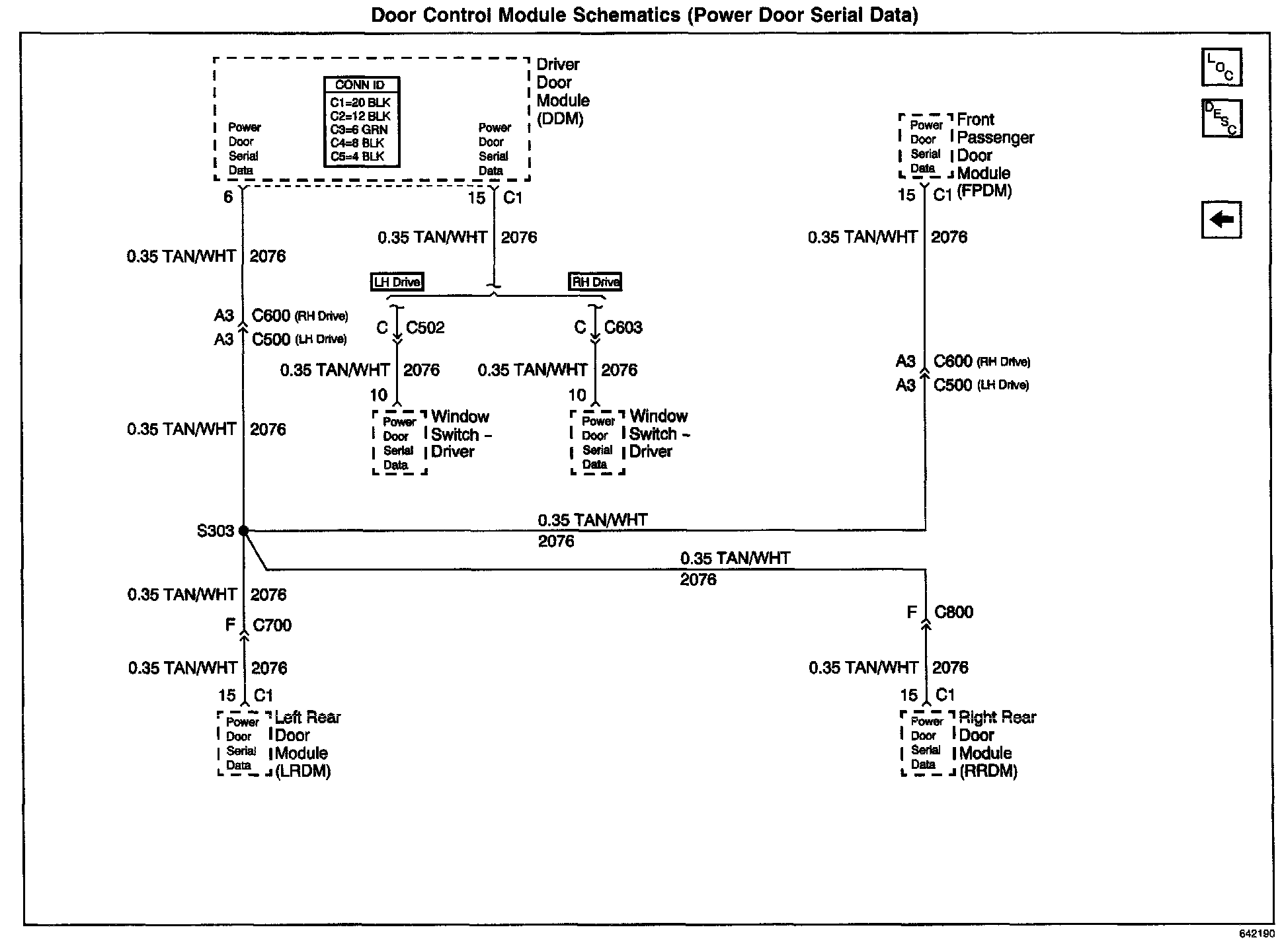

Door Control Module Schematics: Power Door Serial Data:
