Seat Temperature Control Module
>>
Heated Seat Module - Front Passenger
Heated Seat Module - Front Passenger

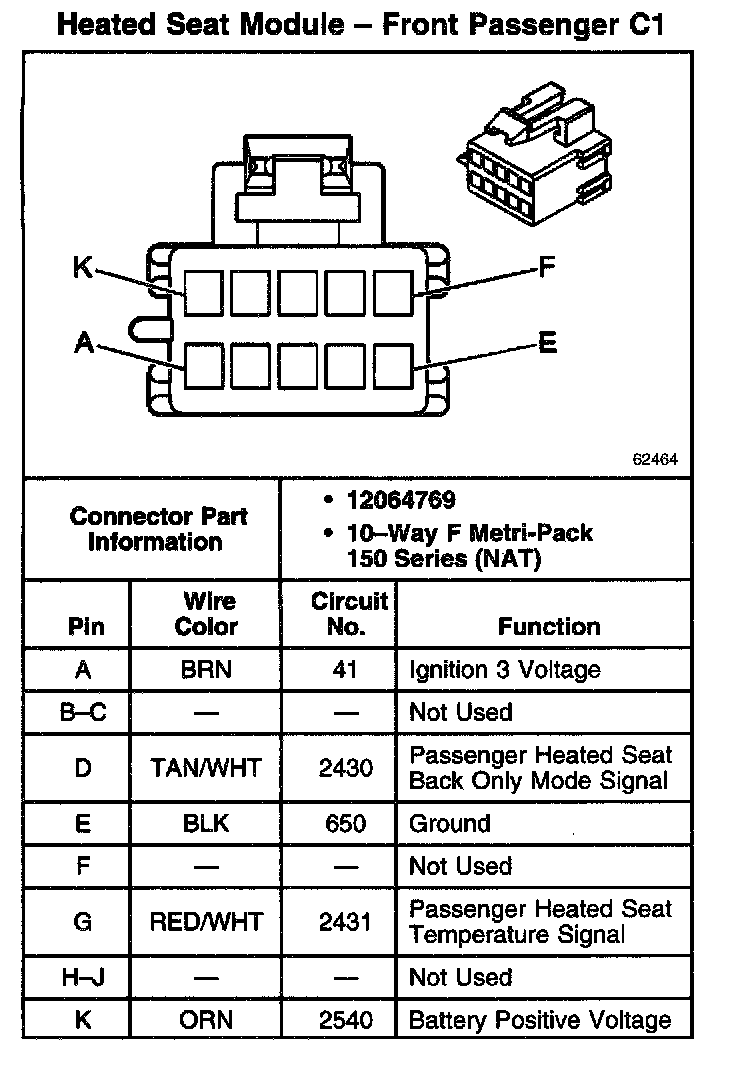

Heated Seat Module - Front Passenger C1:

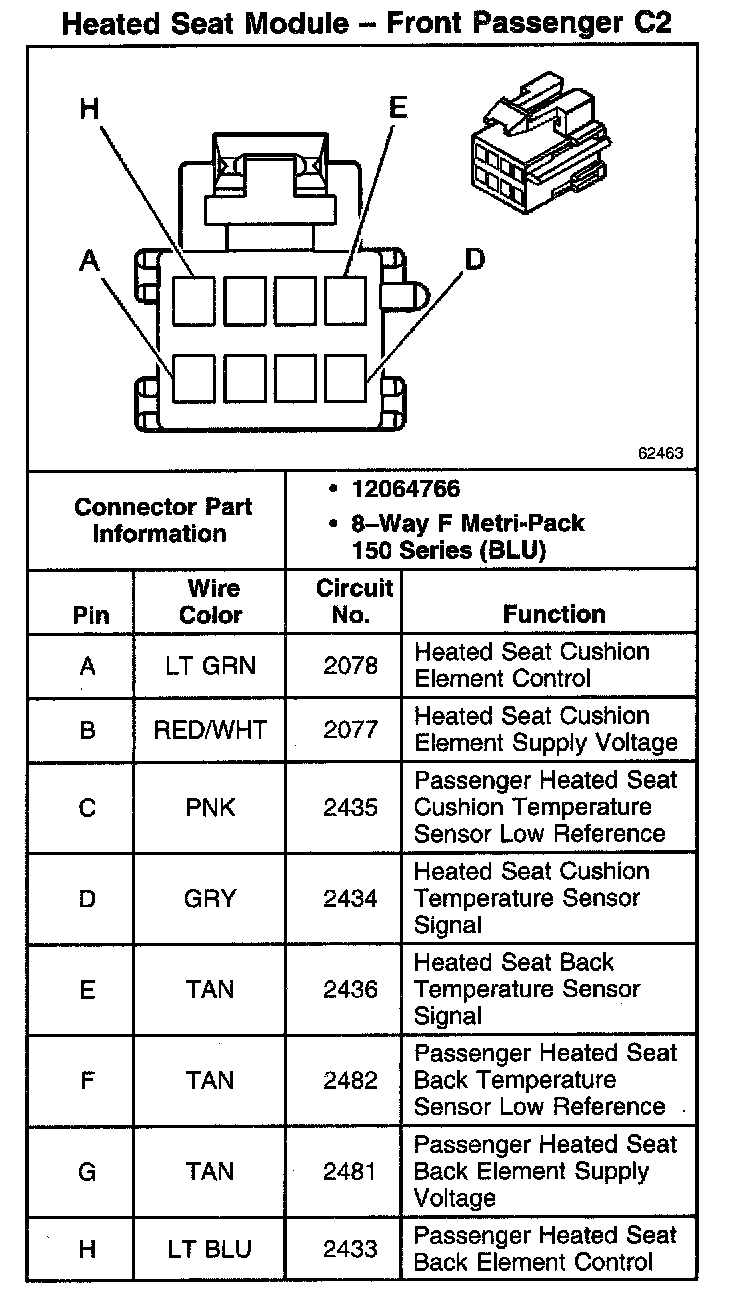

Heated Seat Module - Front Passenger C2:
