Home
>>
Cadillac
>>
2001
>>
Seville STS V8-4.6L VIN 9
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Door Lock Control Module
>>
Right Rear Door Module (RRDM) C5
Right Rear Door Module (RRDM) C5

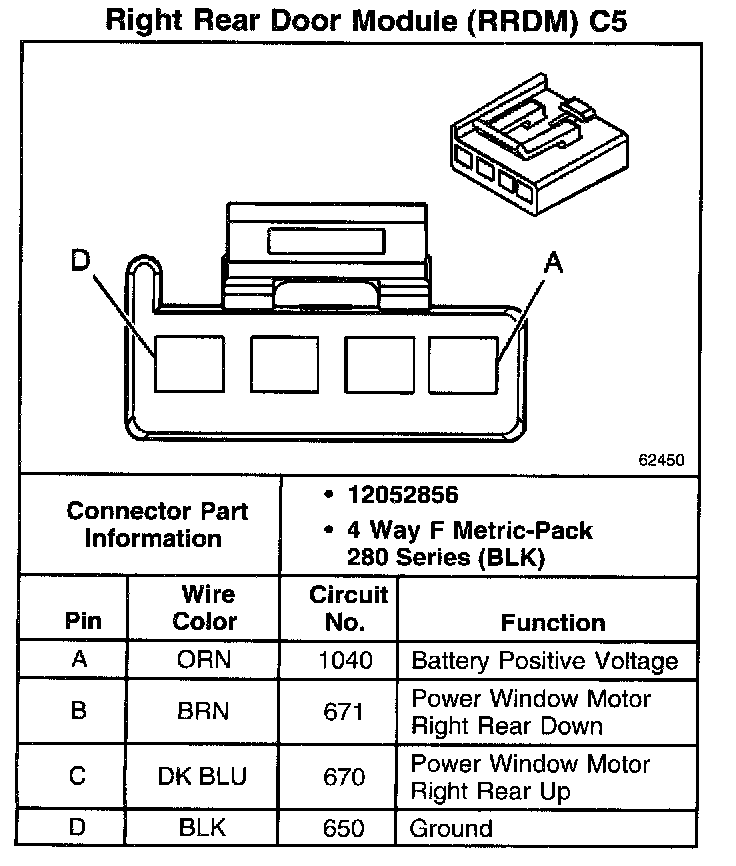

Right Rear Door Module (RRDM) C5:
