Home
>>
Cadillac
>>
2001
>>
Seville STS V8-4.6L VIN 9
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Heating and Air Conditioning
>>
Control Module HVAC
>>
Instrument Panel Integration Module (IPM) C2
Instrument Panel Integration Module (IPM) C2

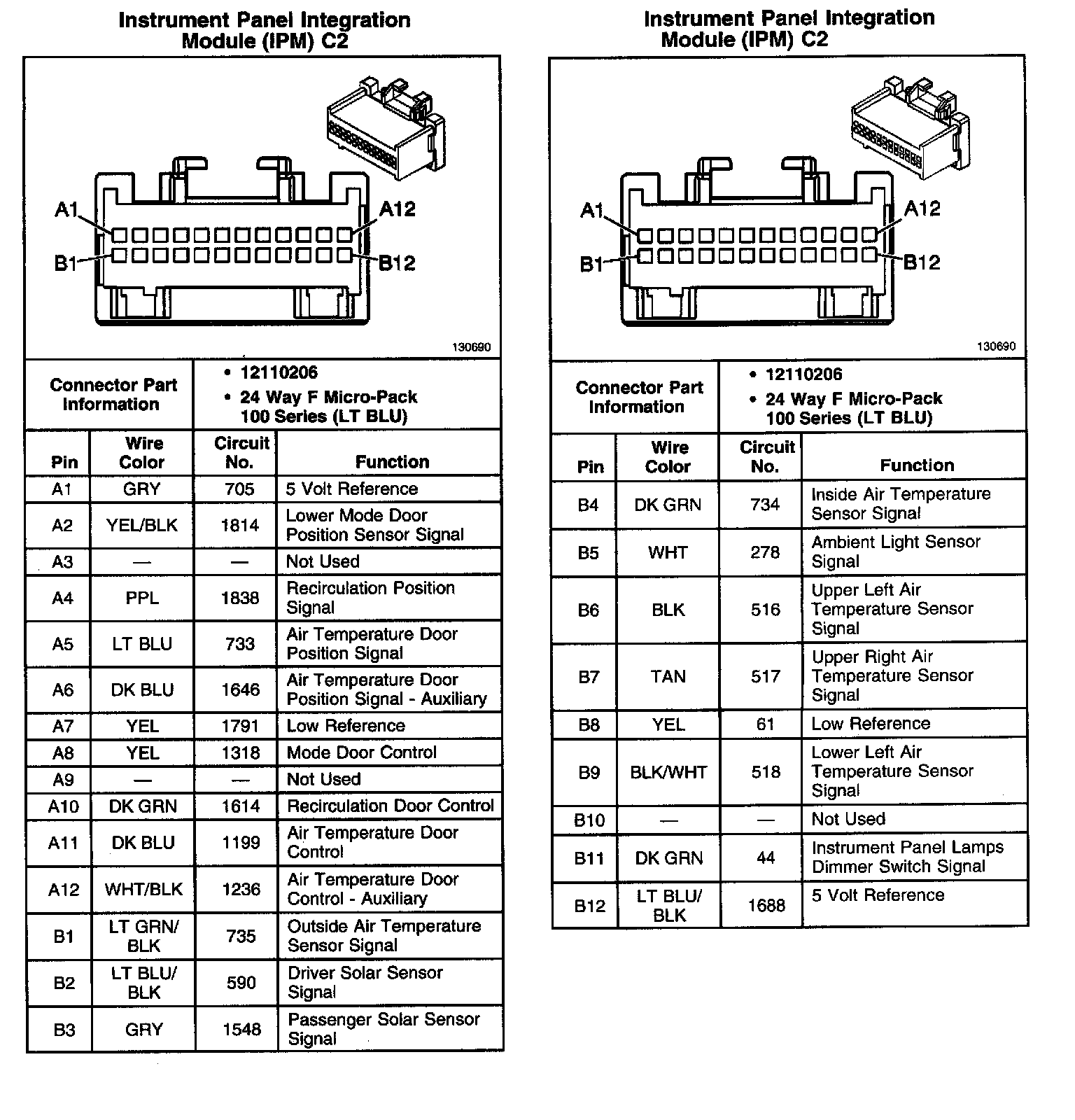

Instrument Panel Integration Module (IPM) C2:
