Navigation Display Head
Navigation Display Head

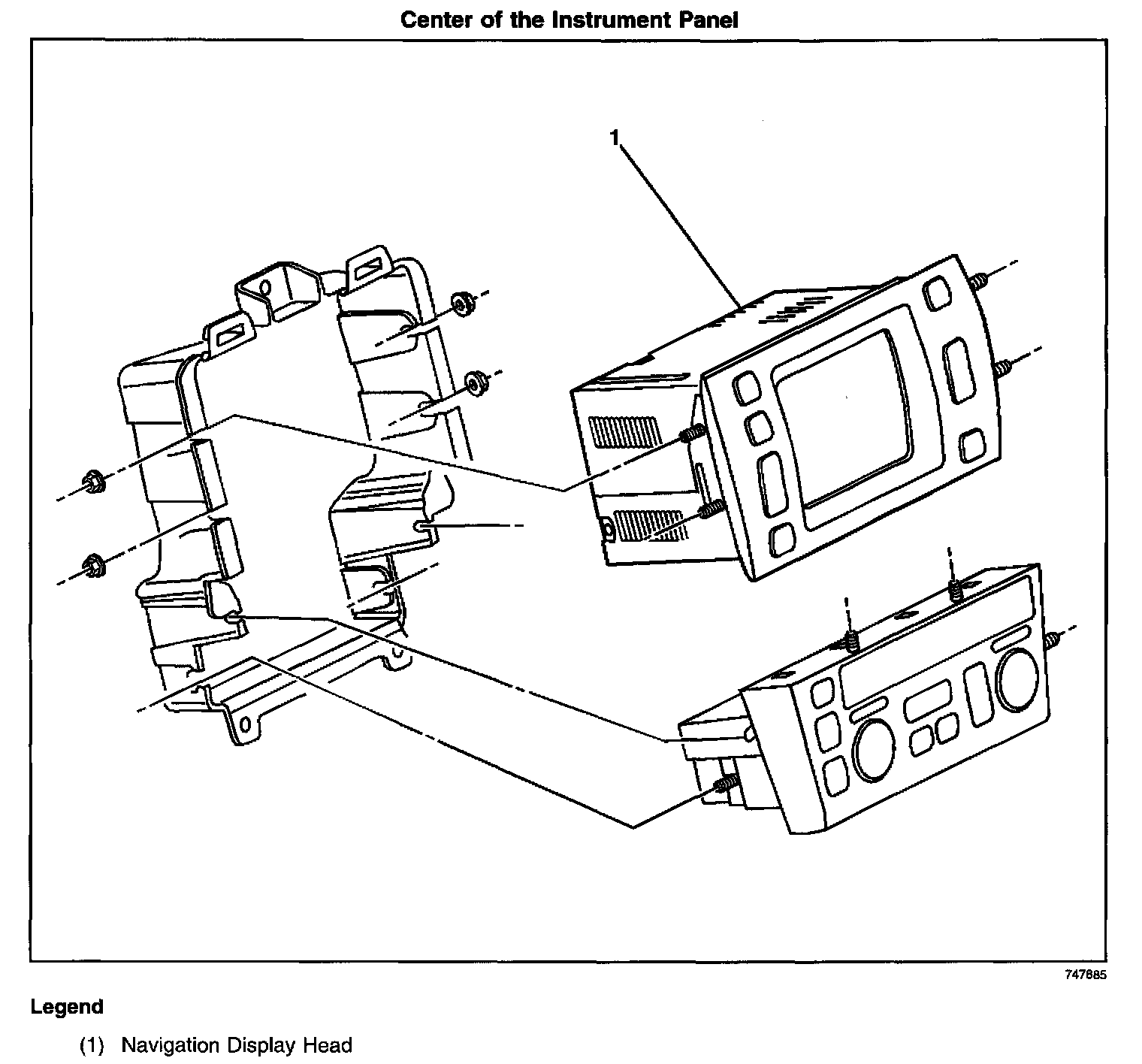

Locations View:
Center of the instrument panel, above the IPM
