Ignition Control Module
Ignition Control Module

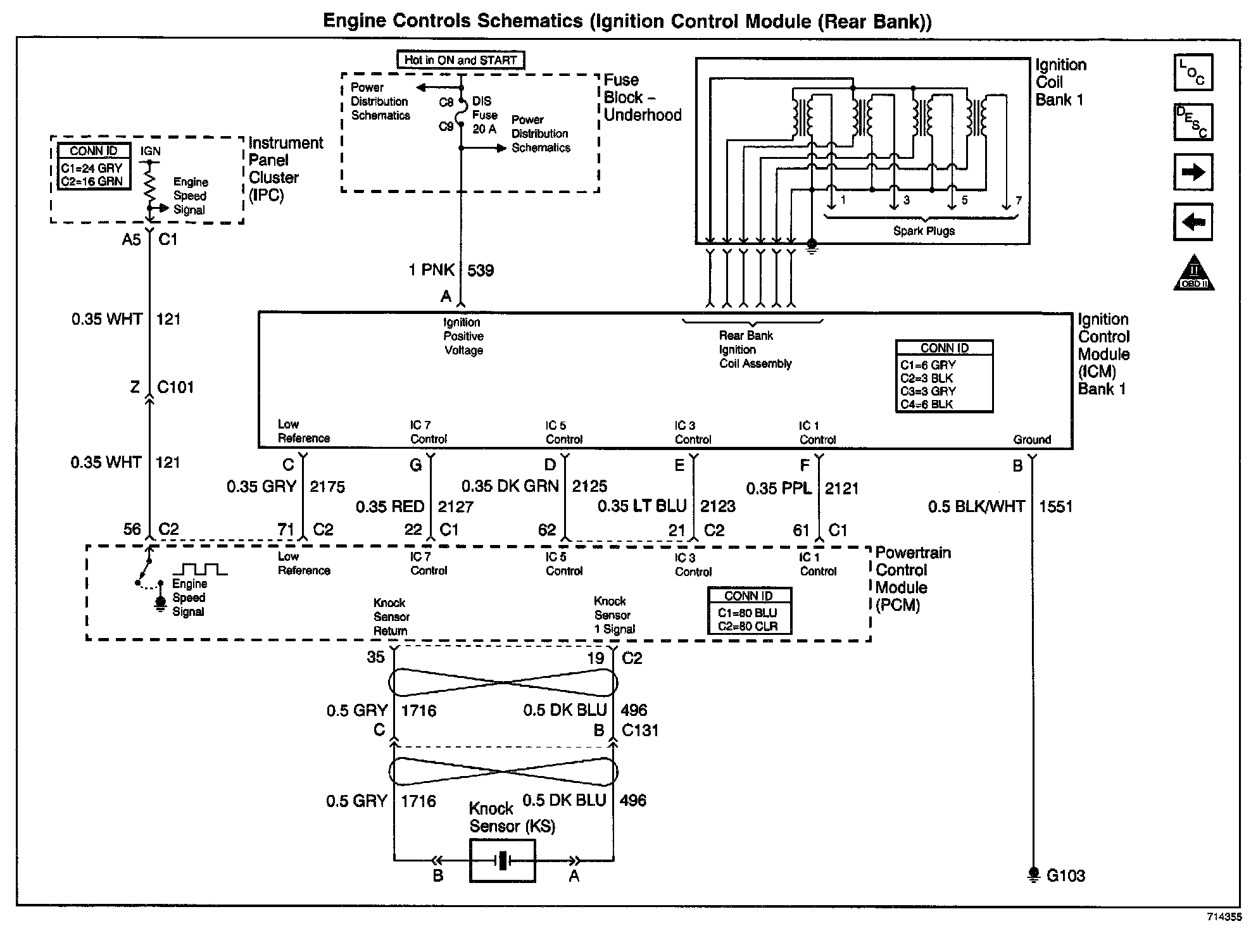

Engine Controls Schematics: Ignition Control Module (Rear Bank):
