Home
>>
Cadillac
>>
2001
>>
DeVille V8-4.6L VIN 9
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Seat Control Module
>>
Adaptive Seat Lumbar Module - Front Passenger C2
Adaptive Seat Lumbar Module - Front Passenger C2

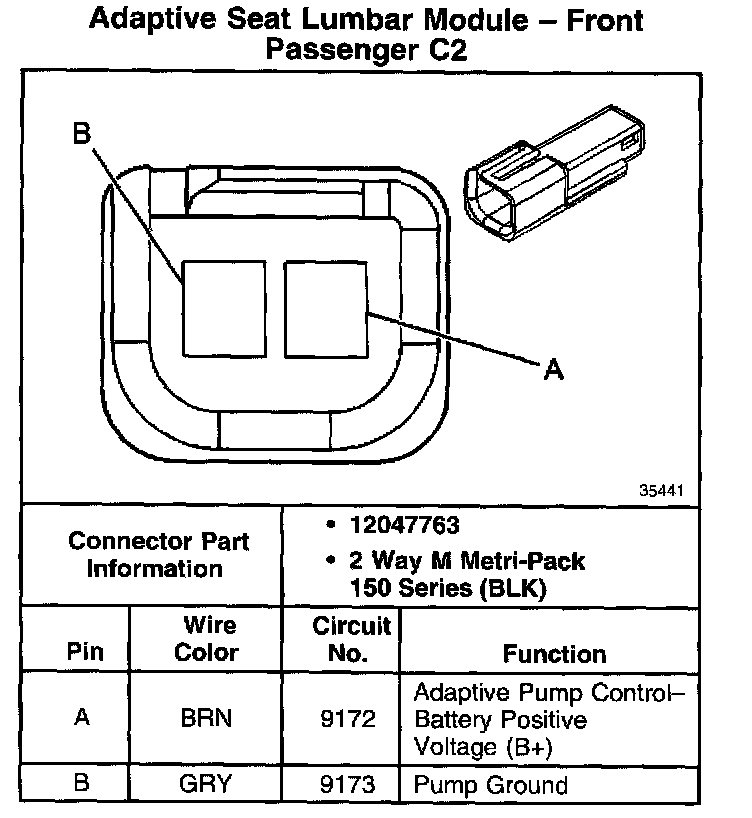

Adaptive Seat Lumbar Module - Front Passenger C2:
