Home
>>
Cadillac
>>
2001
>>
DeVille V8-4.6L VIN 9
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Memory Positioning Systems
>>
System Diagram
System Diagram

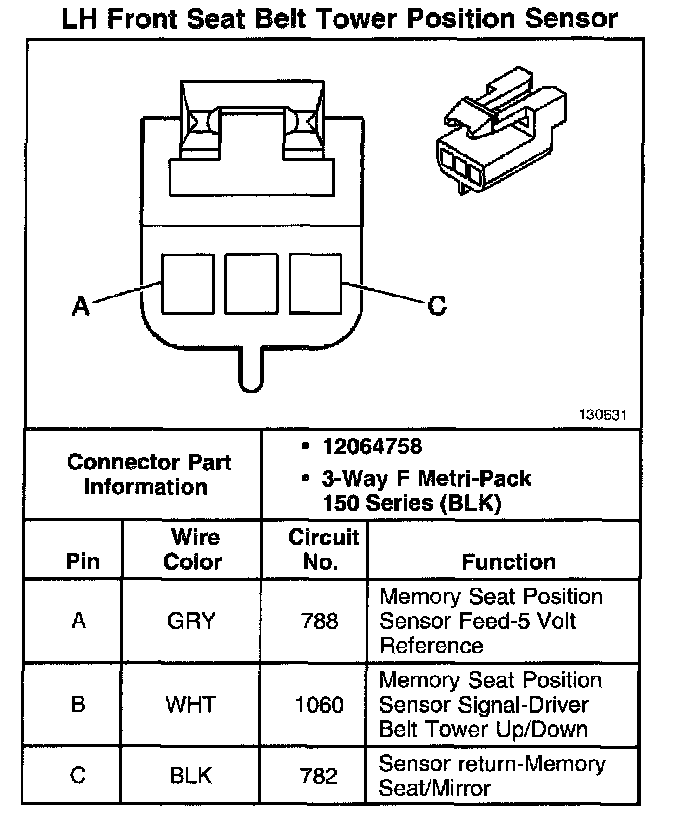

LH Front Seat Belt Tower Position Sensor:
