Home >> Cadillac >> 2000 >> Eldorado V8-4.6L VIN Y >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seats >> Power Seat Control Module >> C3

C3

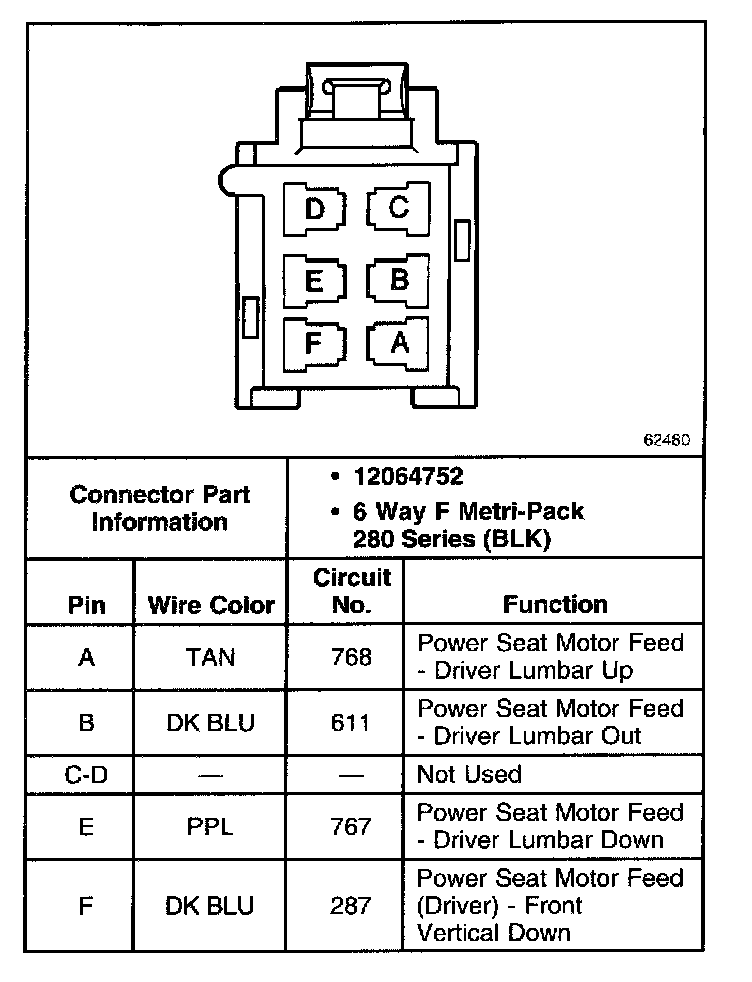

Memory Seat Module (MSM) C3:
