Cadillac
>>
2000
>>
Catera V6-3.0L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Transmission Control Systems
>>
Automatic Transmission Controls Schematics
Automatic Transmission Controls Schematics

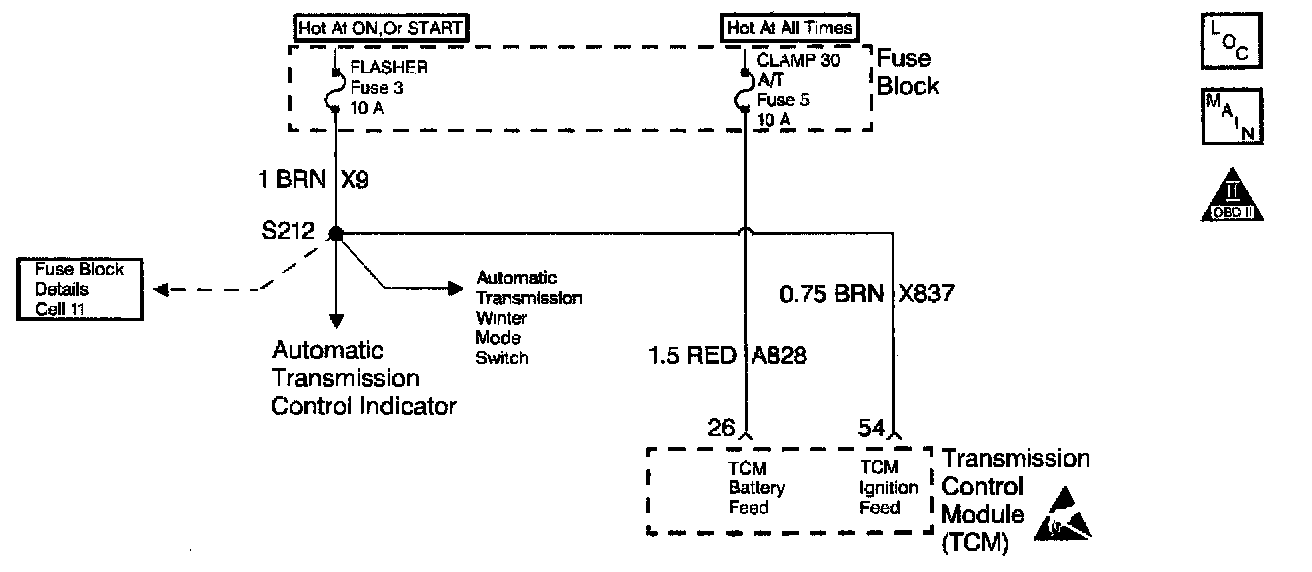

Schematic:

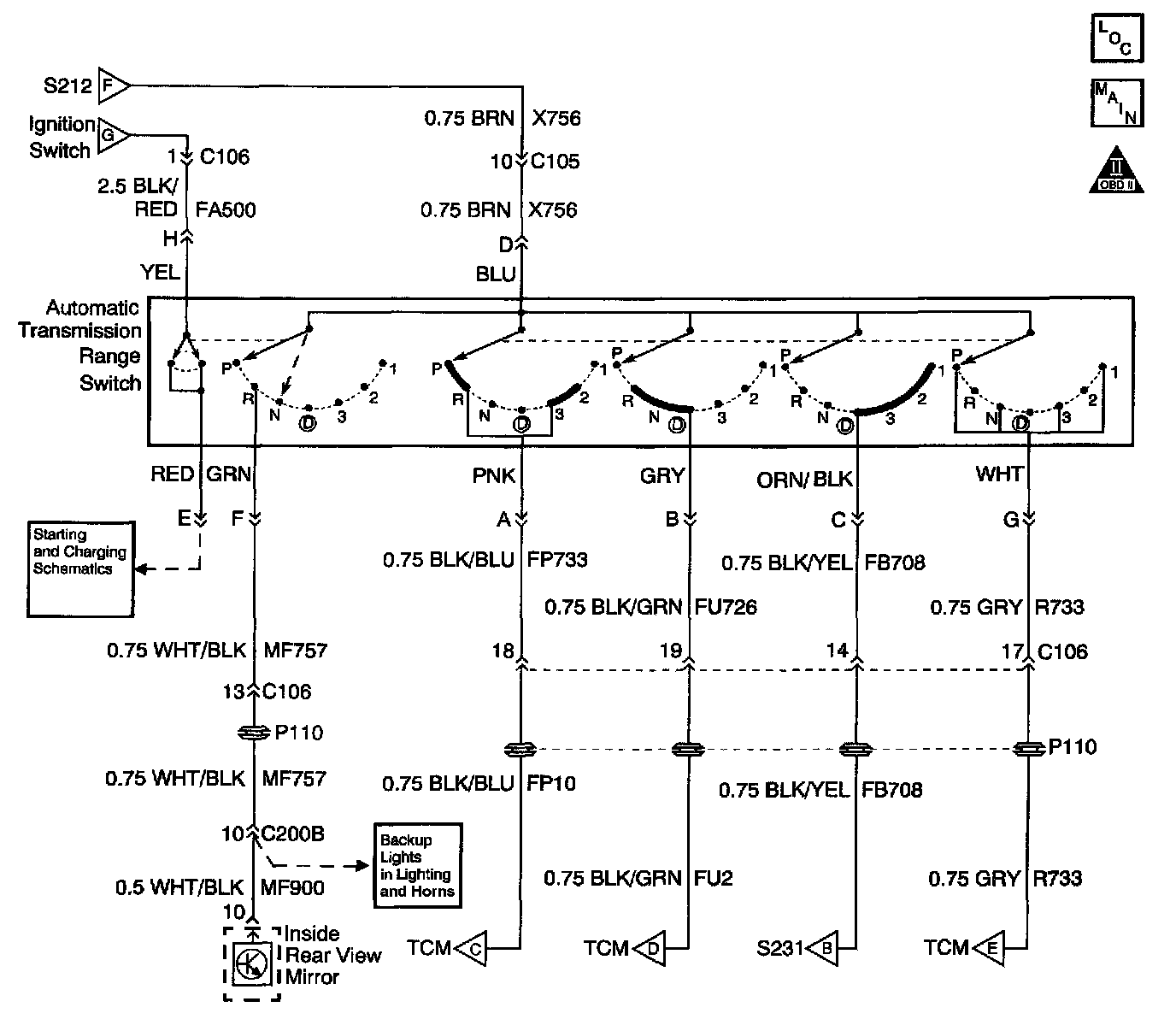

Schematic:
