Multifunction Relay K134
Multifunction Relay K134

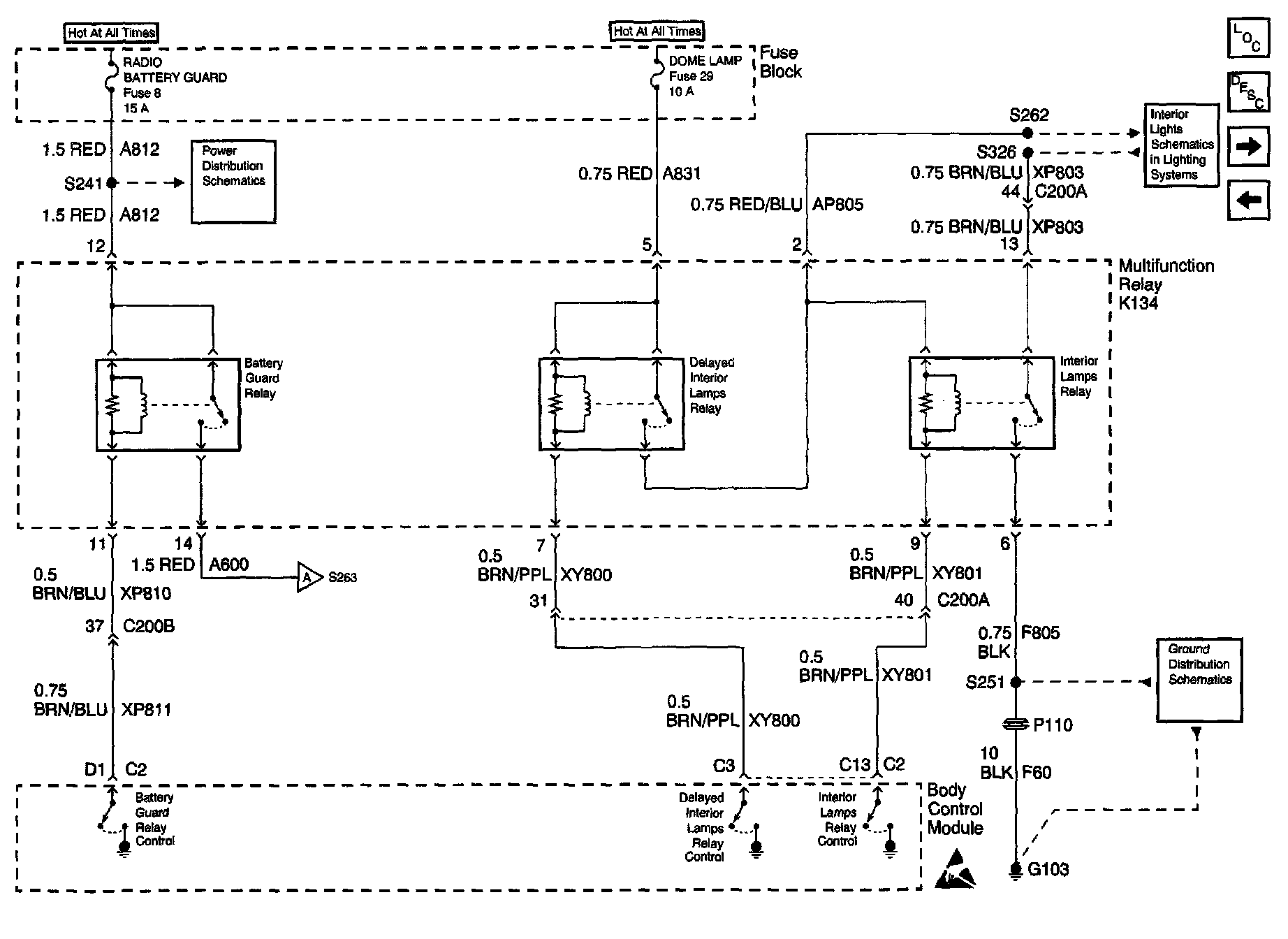

Body Control Module Schematics: Multifunction Relay K134:
