Cadillac
>>
2000
>>
Catera V6-3.0L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cruise Control
>>
Cruise Control Switch
>>
TP Sensor and APP Sensor
TP Sensor and APP Sensor

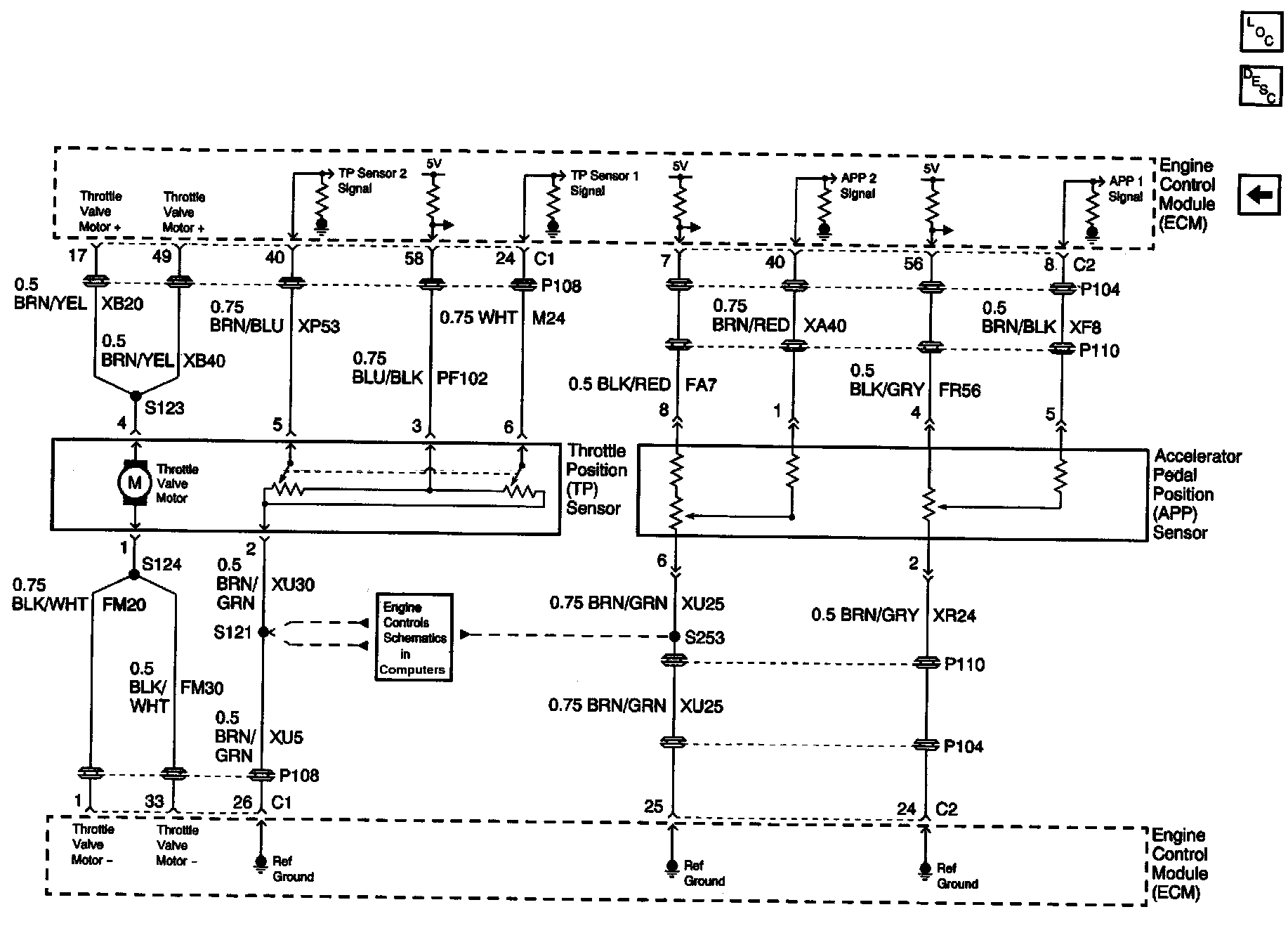

Cruise Control Schematics: TP Sensor And APP Sensor:
