Cadillac
>>
2000
>>
Catera V6-3.0L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antitheft and Alarm Systems
>>
System Diagram
>>
Engine Control Schematics
Engine Control Schematics

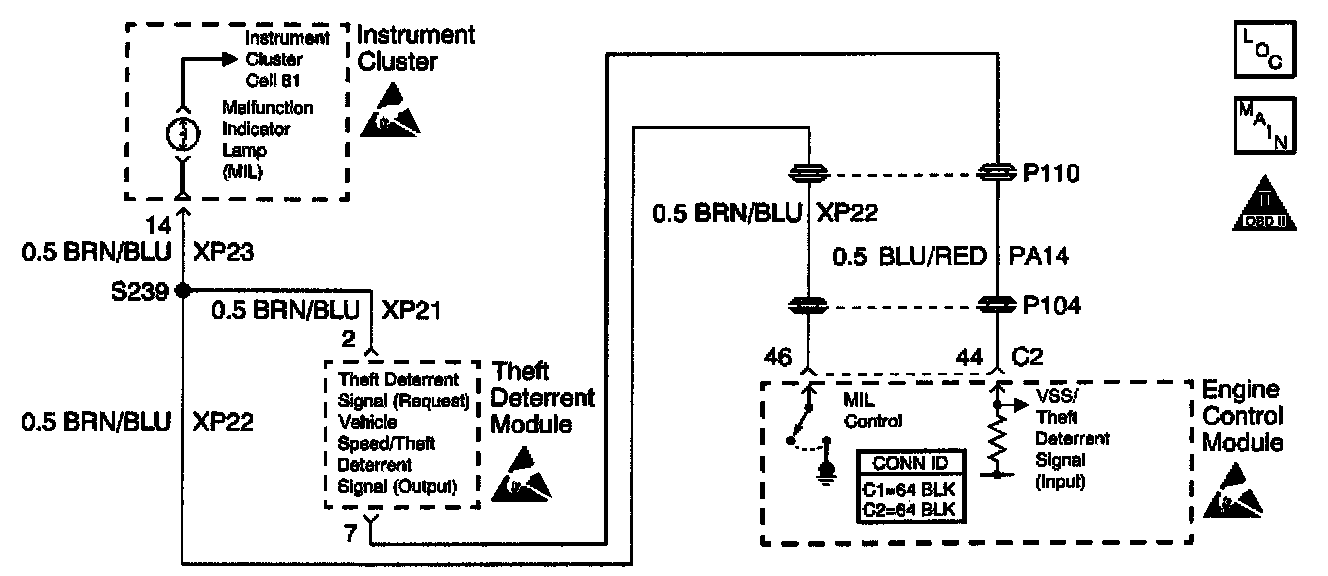

Schematic:
