RIM Inputs and Outputs
RIM Inputs and Outputs

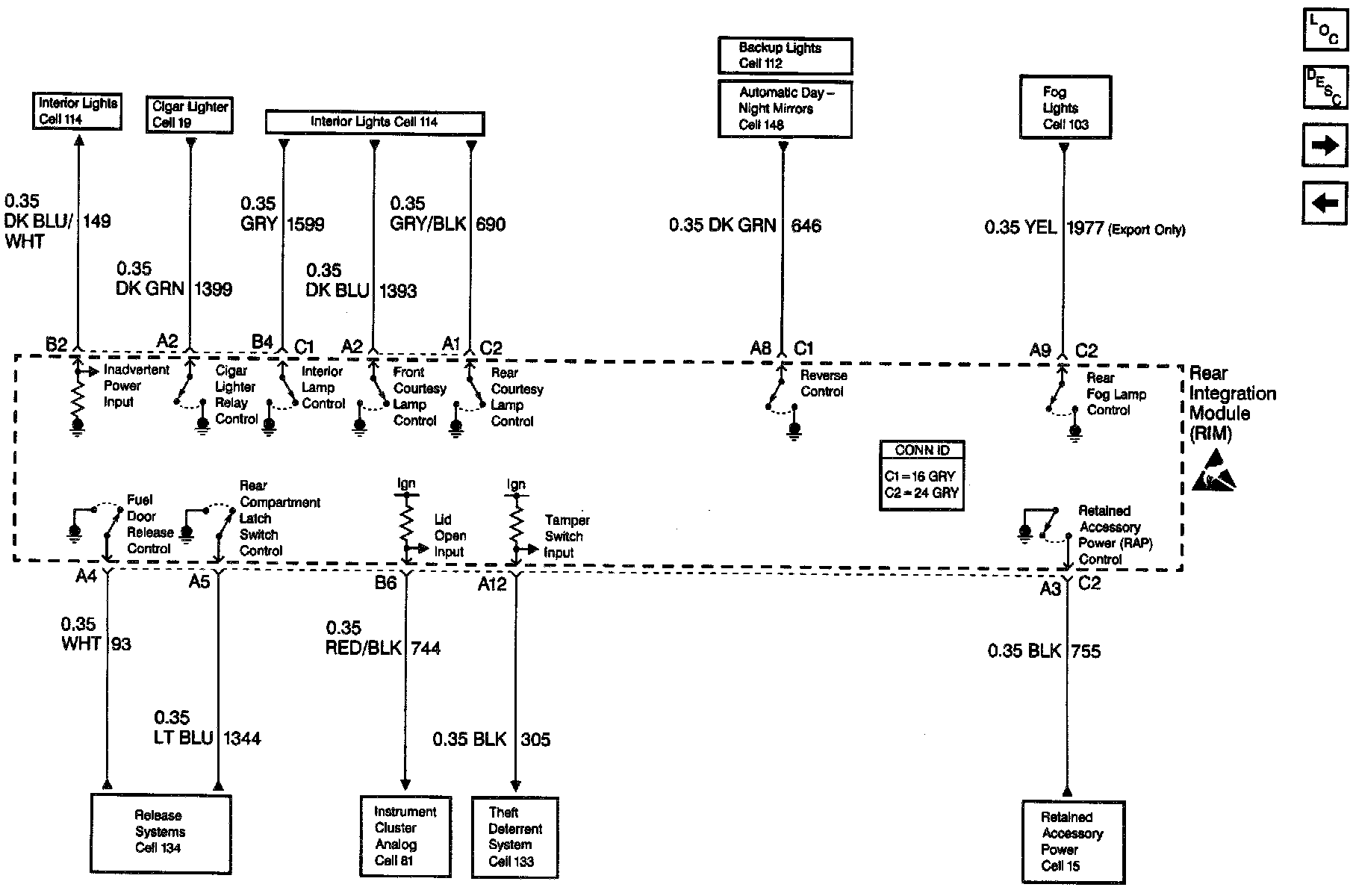

Body Control Module Schematics: RIM Inputs And Outputs:

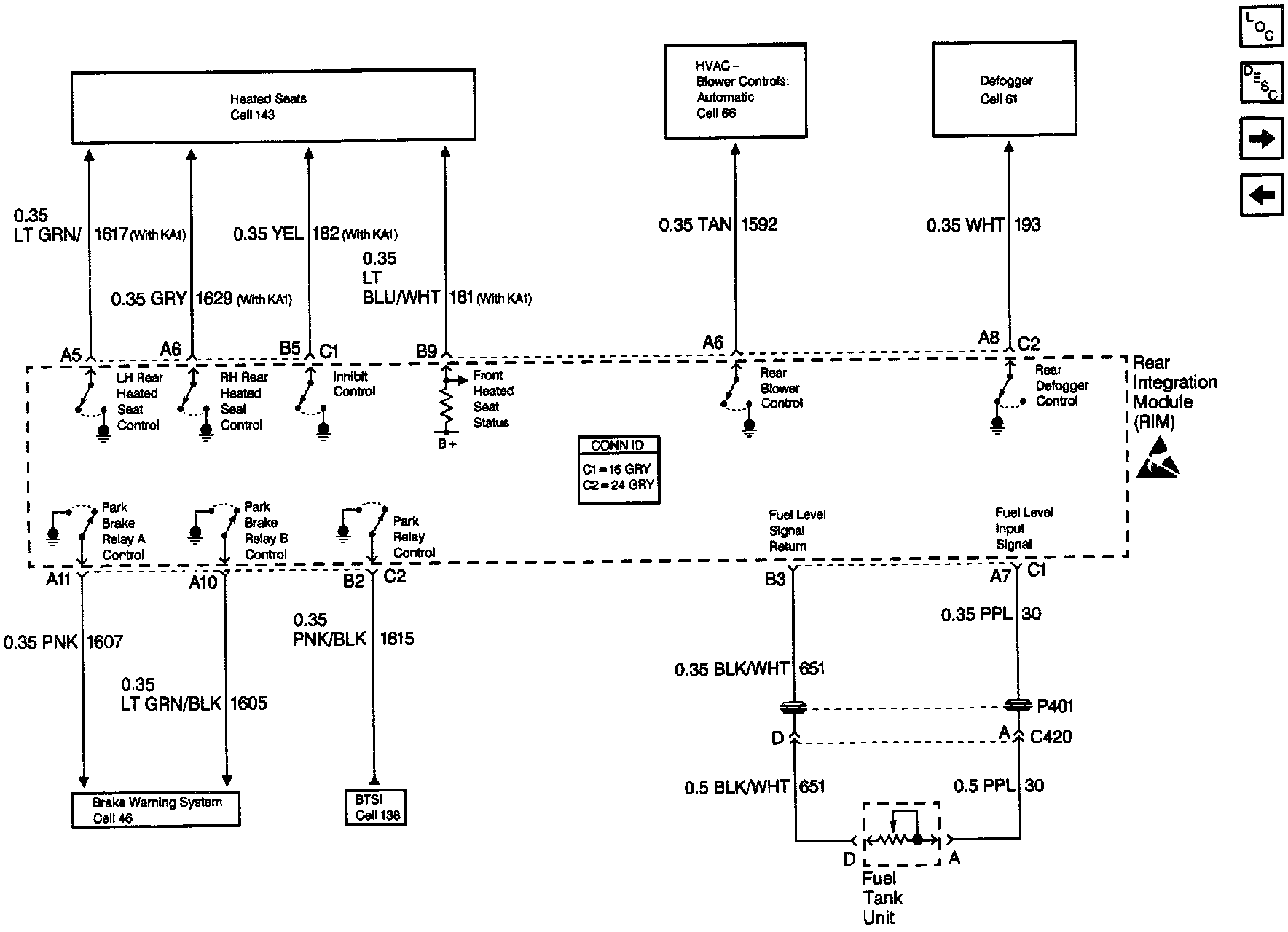

Body Control Module Schematics: RIM Inputs And Outputs:
