Home >> Cadillac >> 1998 >> Seville STS V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Doors >> Door Control Module Schematics >> LH Front Power Window Switch

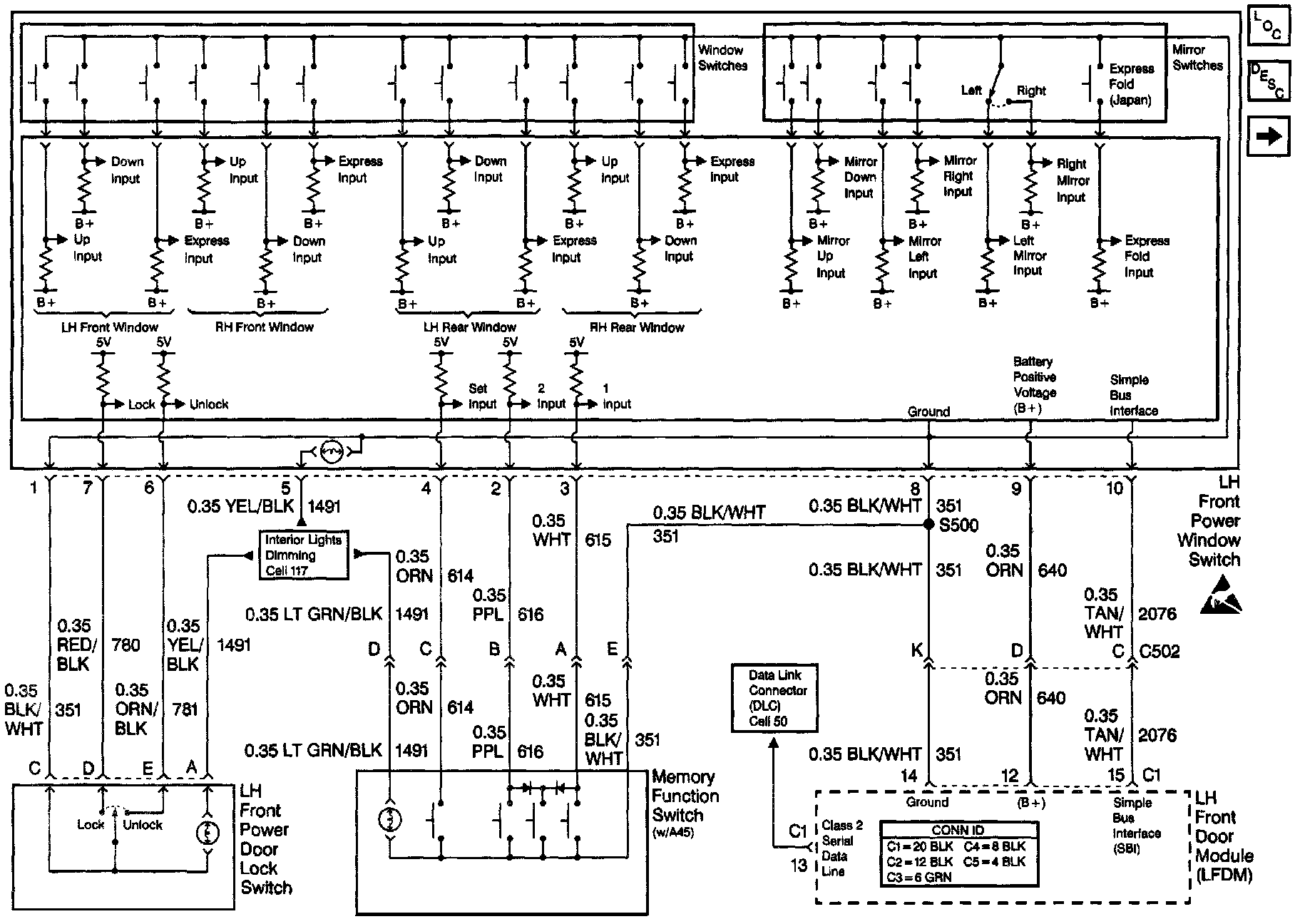

LH Front Power Window Switch

Door Control Module Schematics: LH Front Power Window Switch:
