Cadillac
>>
1998
>>
Seville STS V8-4.6L VIN 9
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Temperature Control Module
>>
Front
>>
LH
>>
C2
C2

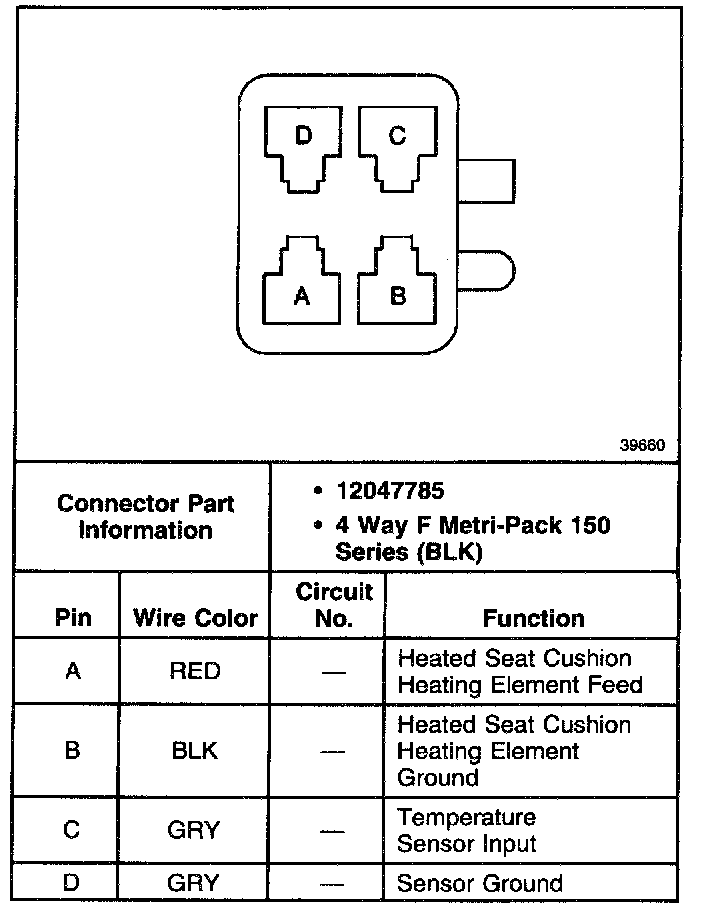

LH Front Heated Seat Module: C2:
