Home >> Cadillac >> 1998 >> Eldorado V8-4.6L VIN Y >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Seat Control Module >> Seat Relay Module >> LH

LH

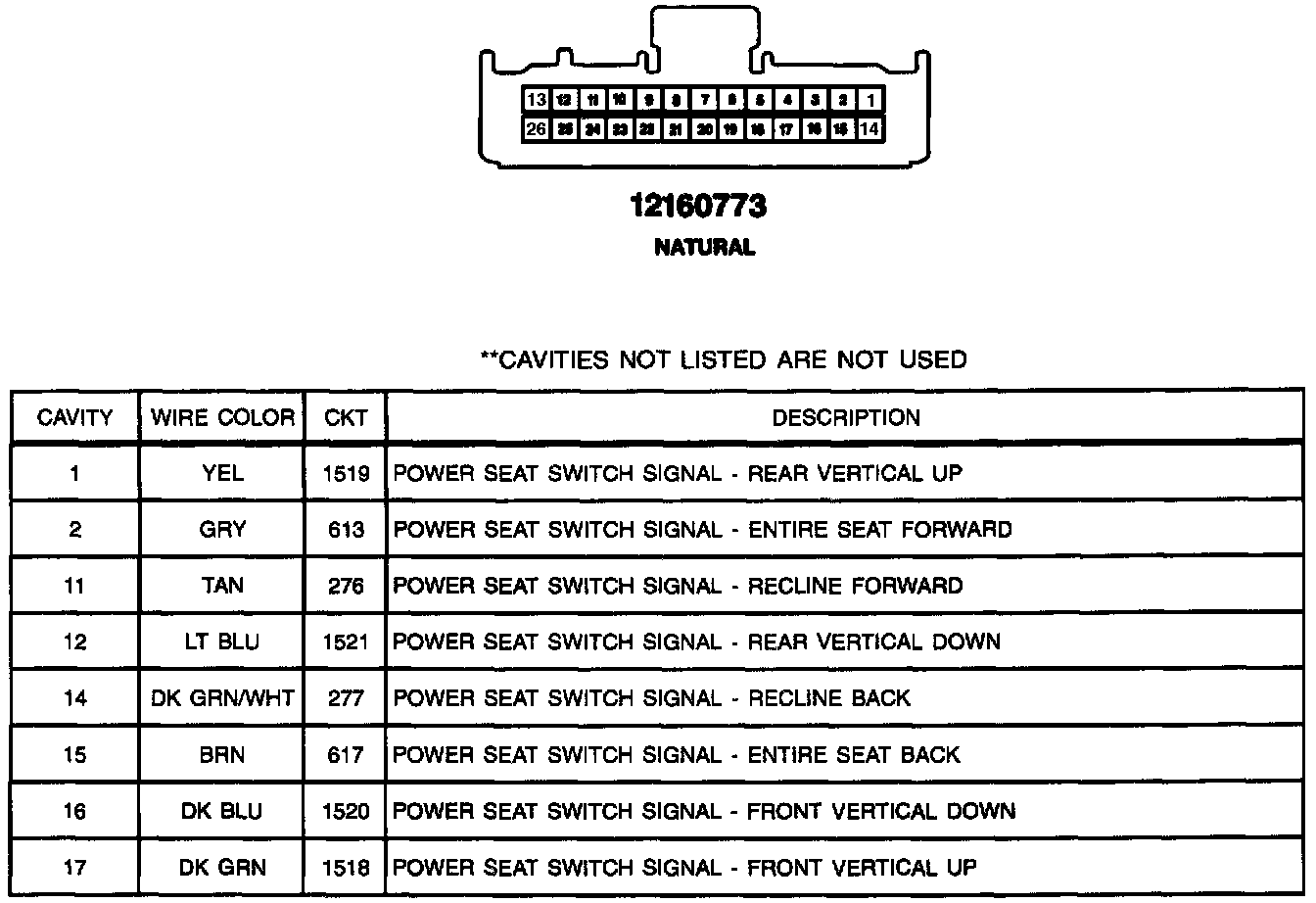

LH Seat Relay Module C1:
