Door Lock Switches, Twilight Sensor And On Star Inputs
Door Lock Switches, Twilight Sensor And On Star Inputs

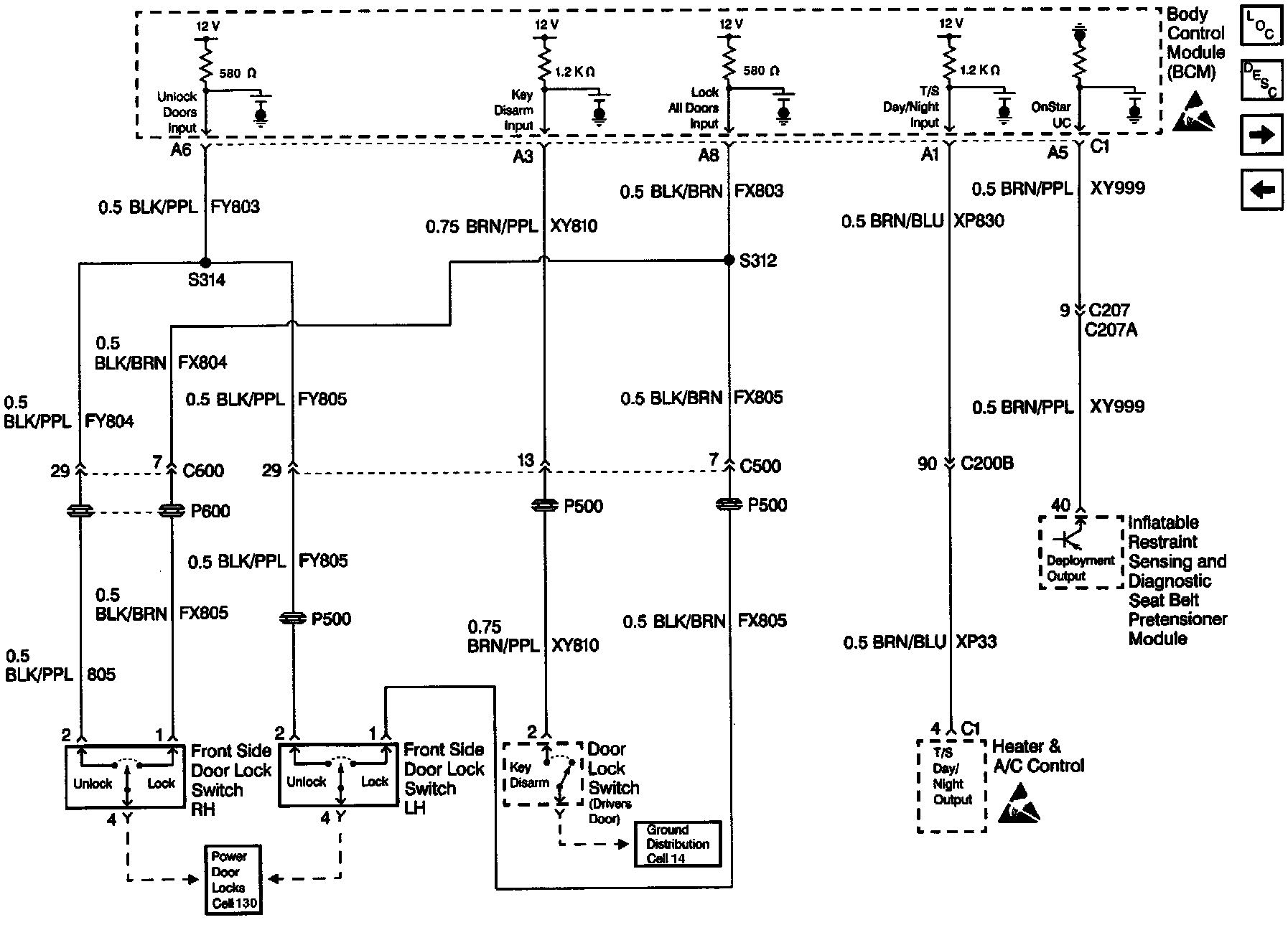

Body Control Module Schematics: Door Lock Switches, Twilight Sensor And On Star Inputs:
