Home
>>
Cadillac
>>
1997
>>
Seville STS V8-4.6L VIN 9
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Heating and Air Conditioning
>>
Control Module HVAC
>>
C2
C2

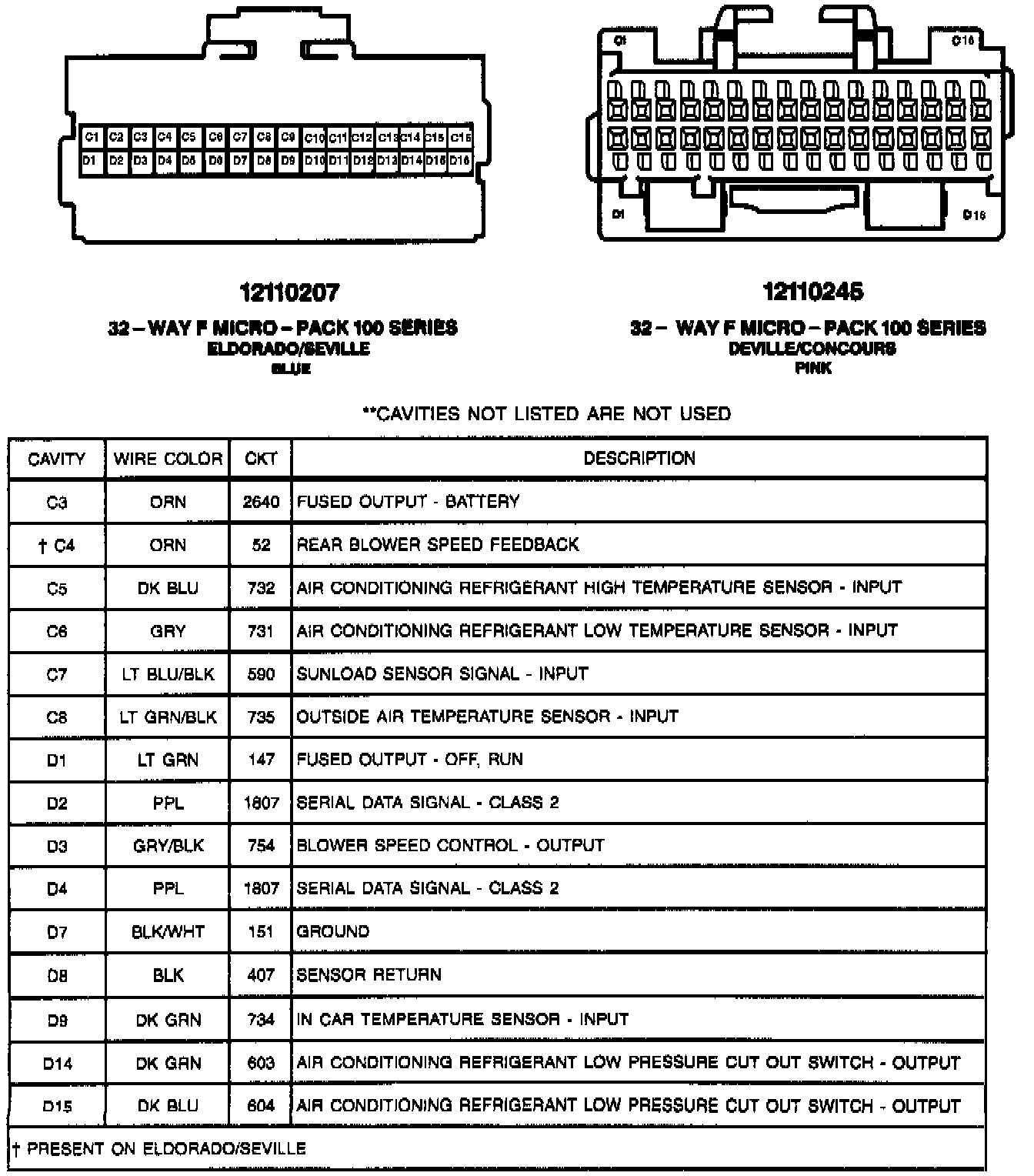

Heater And A/C Programmer (ACM) C2:
