Cadillac
>>
1997
>>
Catera V6-3.0L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

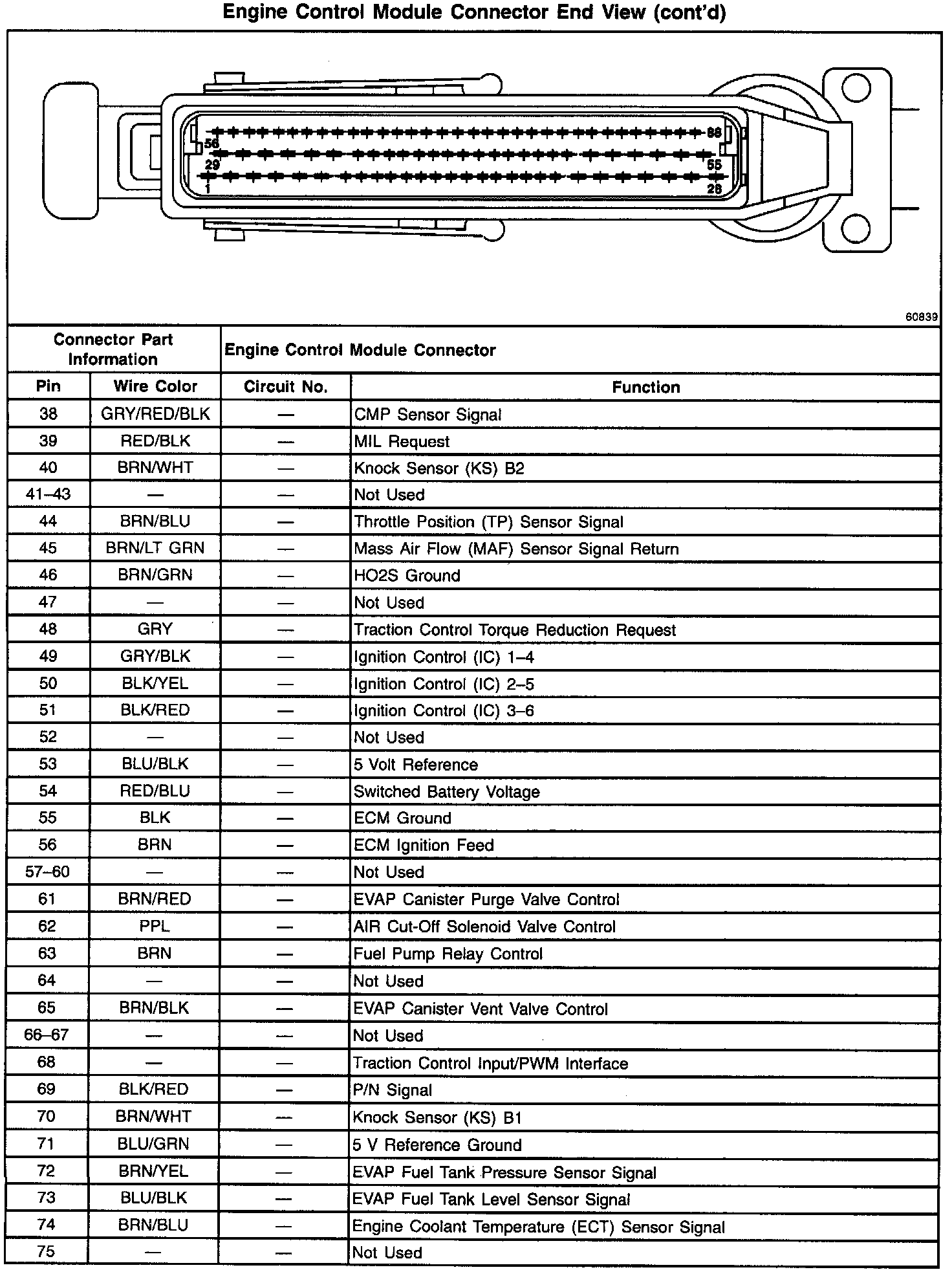

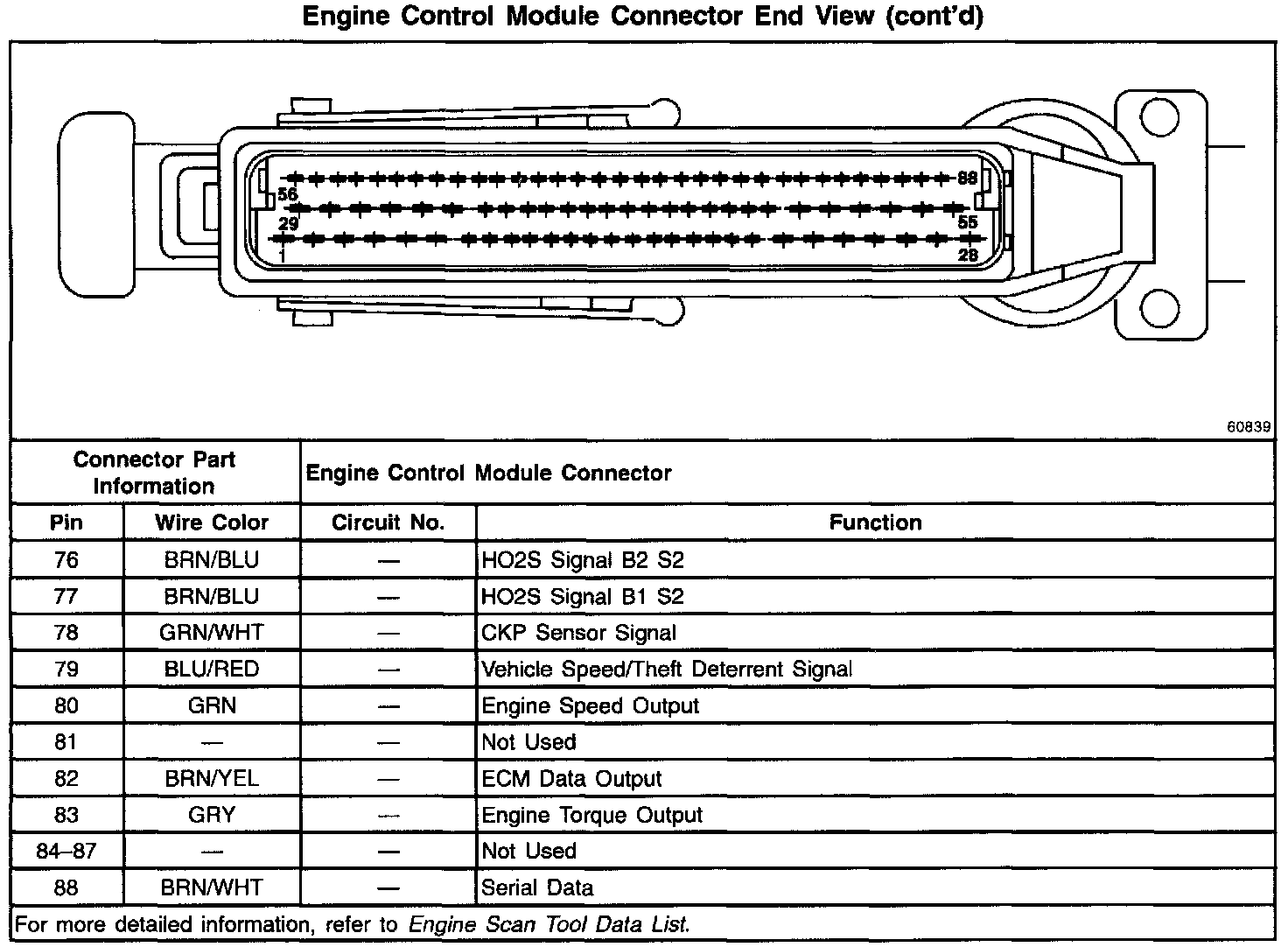

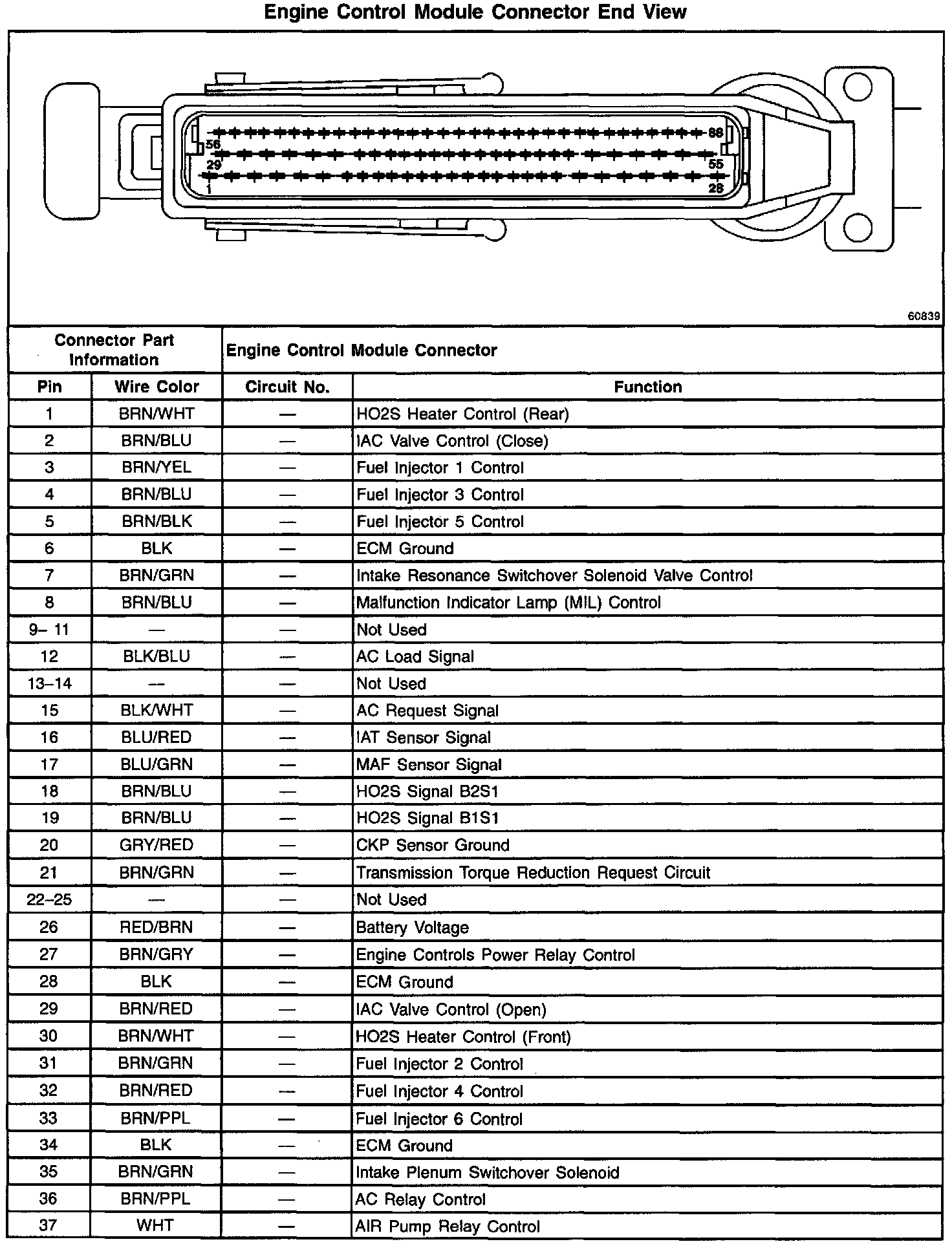

Engine Control Module
Engine Control Module
Diagram Chart:
Diagram Chart:
Diagram Chart:
