Powertrain Control Module - PCM
Powertrain Control Module - PCM
PCM Circuit:

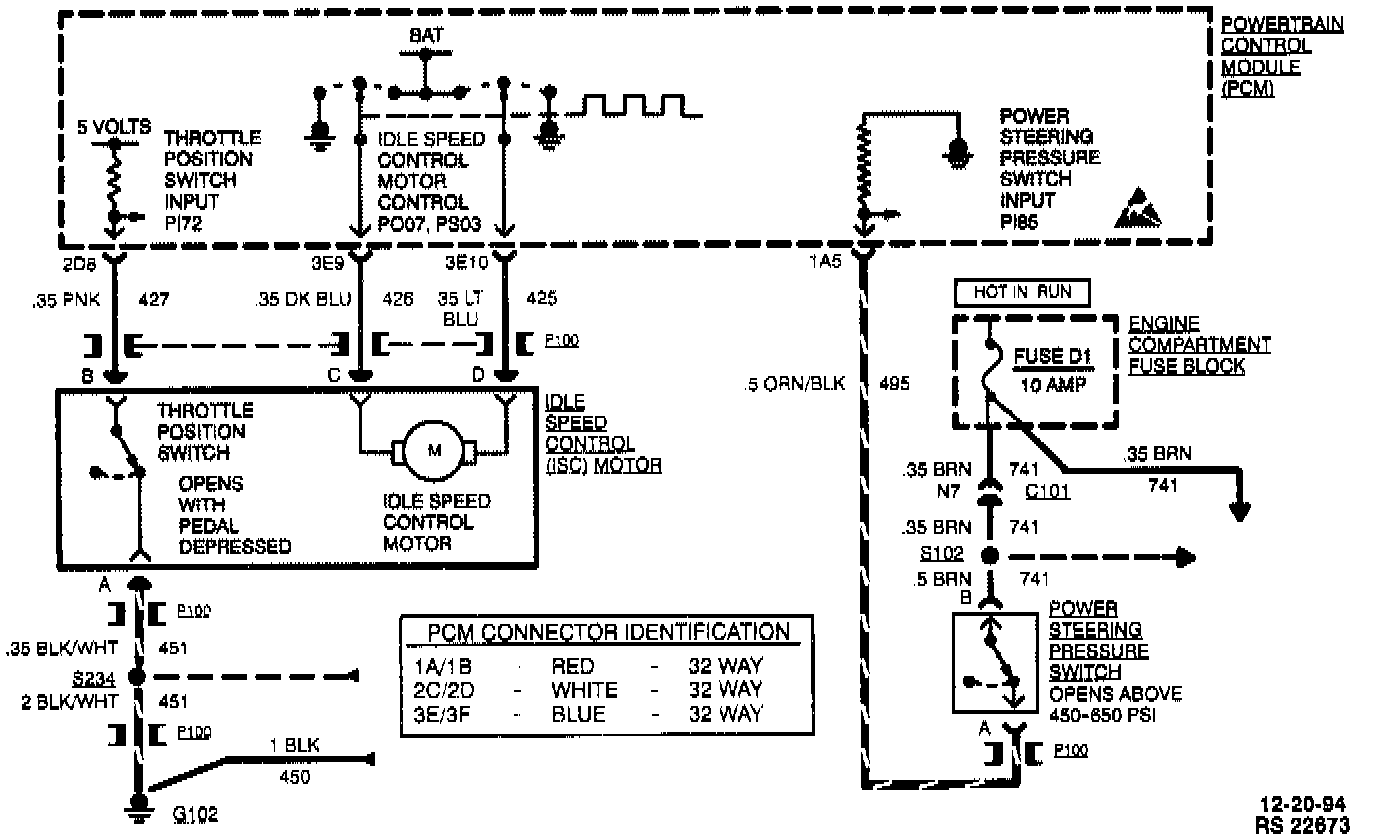

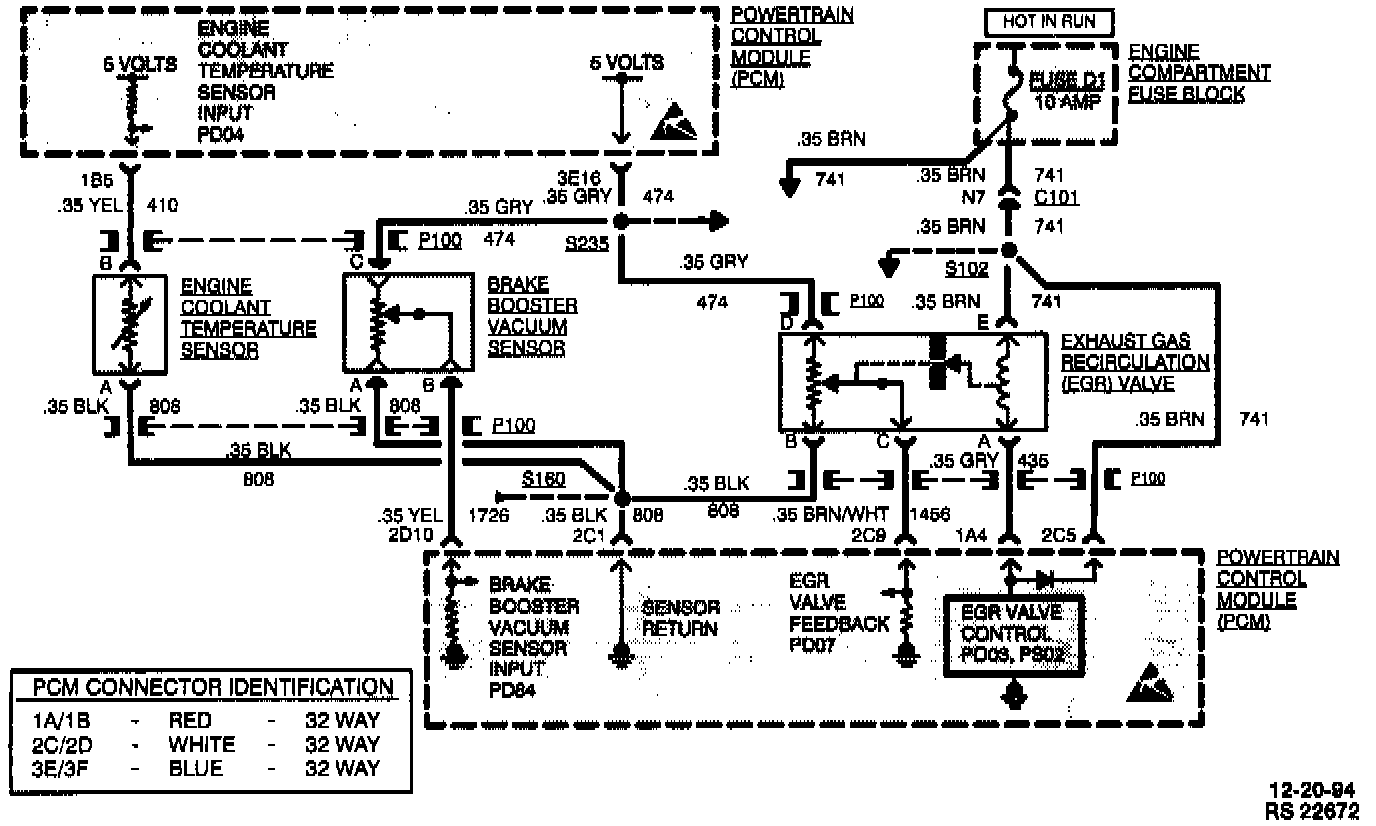

Powertrain Control Module (PCM) Circuit:
