Idle/Throttle Speed Control Unit
>>
Locations
>>
Idle Speed Control (ISC) Actuator
Idle Speed Control (ISC) Actuator

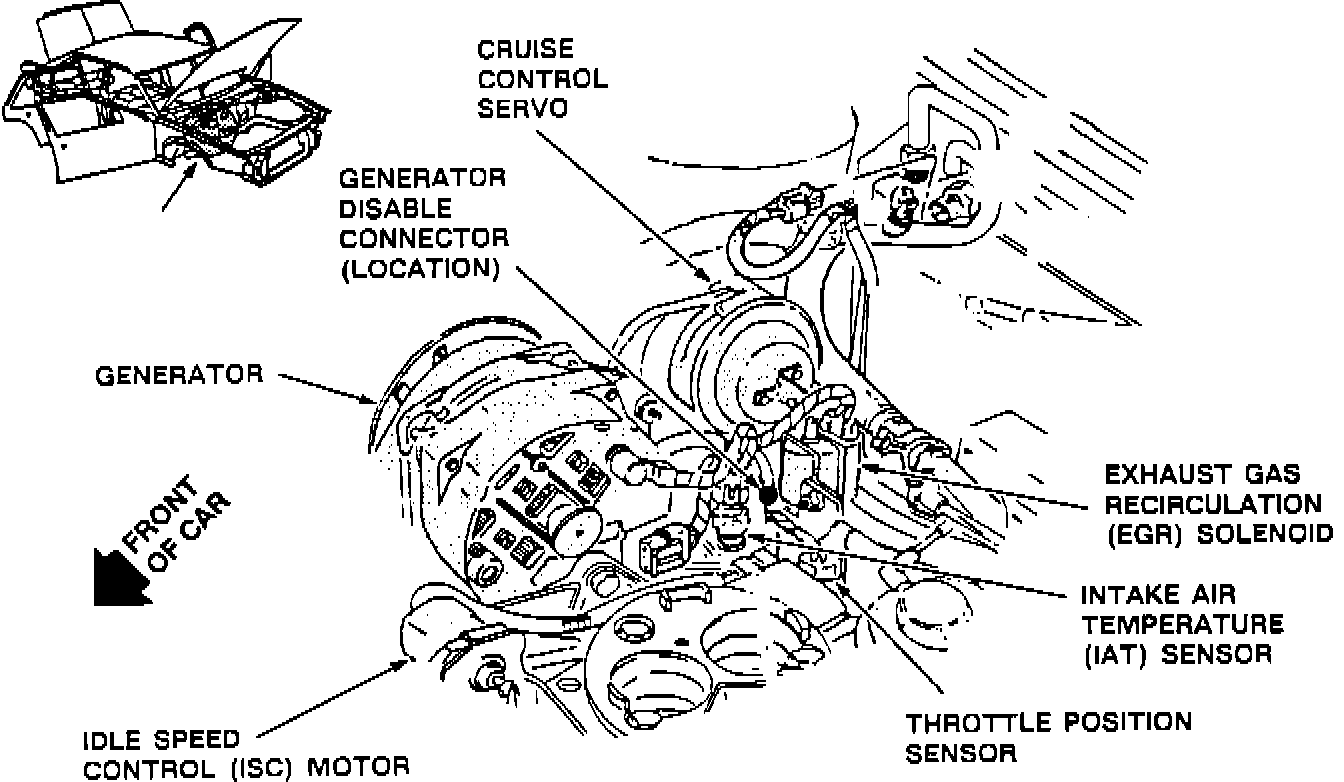

Pictorial View:
Top RH side of engine, in front of generator.
