Home >> Cadillac >> 1994 >> Seville STS V8-4.6L VIN 9 >> Repair and Diagnosis >> Wiper and Washer Systems >> Windshield Washer Switch >> Testing and Inspection >> Wiper/Washer Switch Check Chart

Wiper/Washer Switch Check Chart

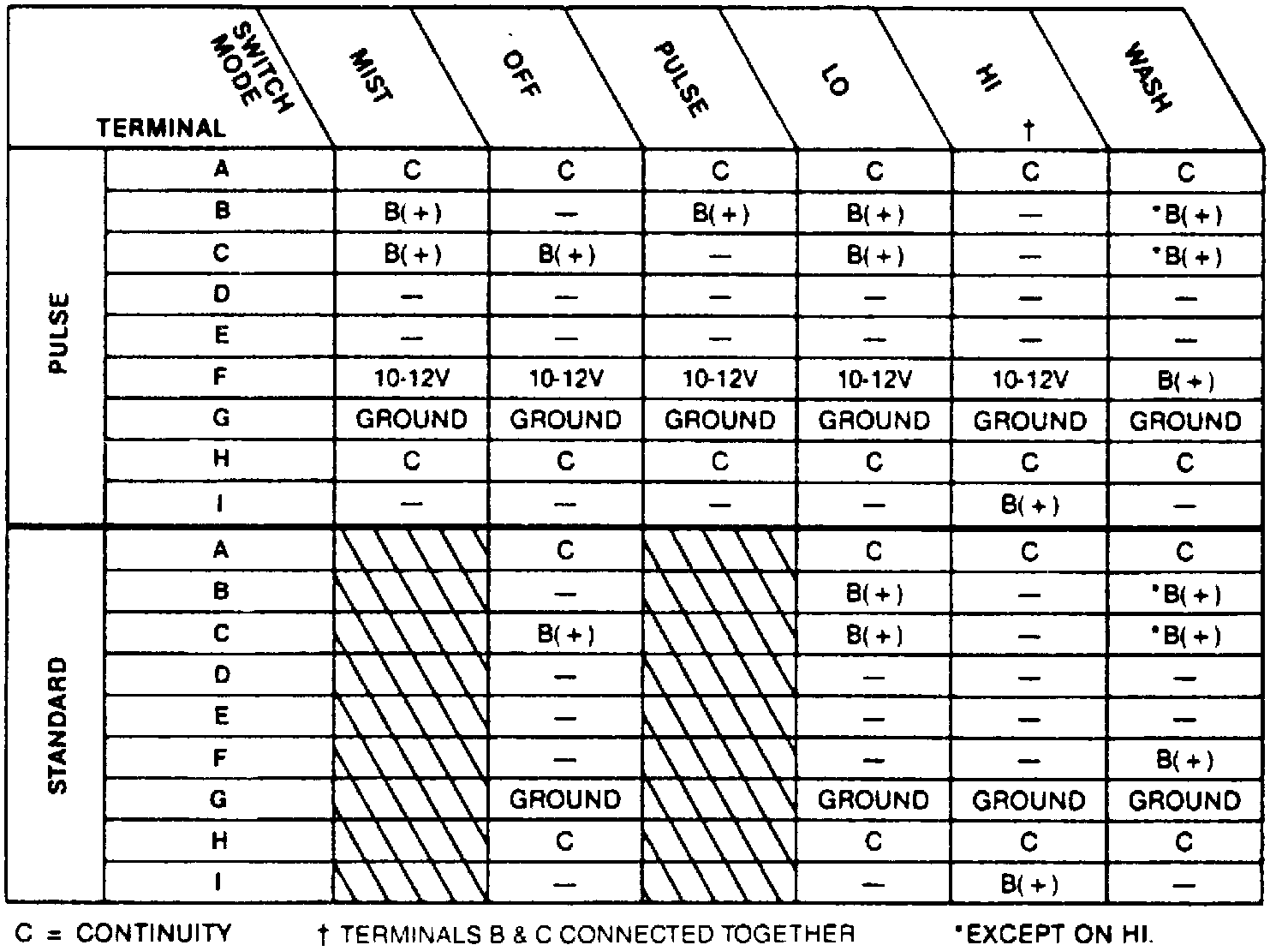

Fig. 81 Wiper/washer Switch Check Chart:
