Electronic/Powertrain Control Module (ECM/PCM)
>>
ECM/PCM Inputs/Outputs
ECM/PCM Inputs/Outputs

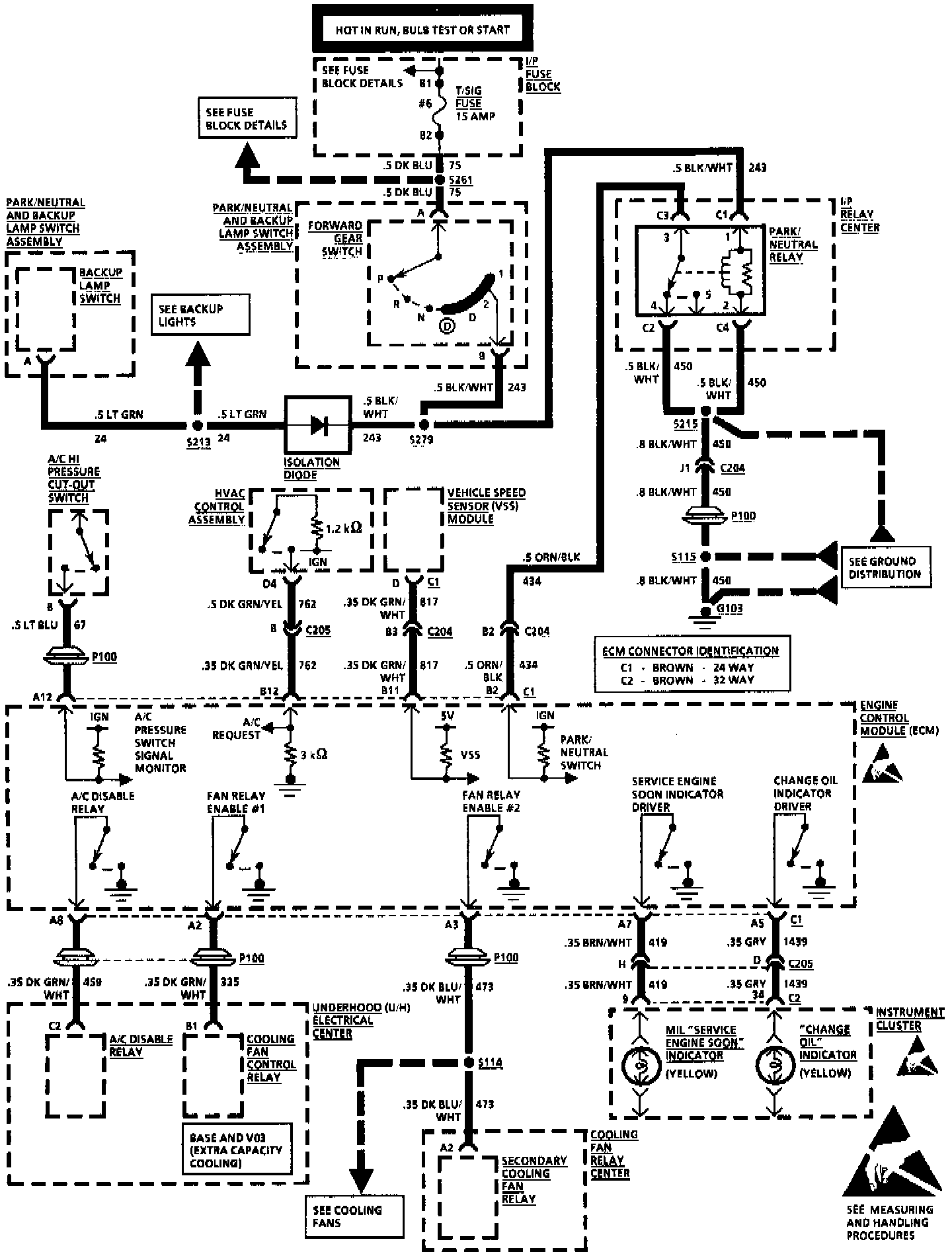

Throttle Body Injection:

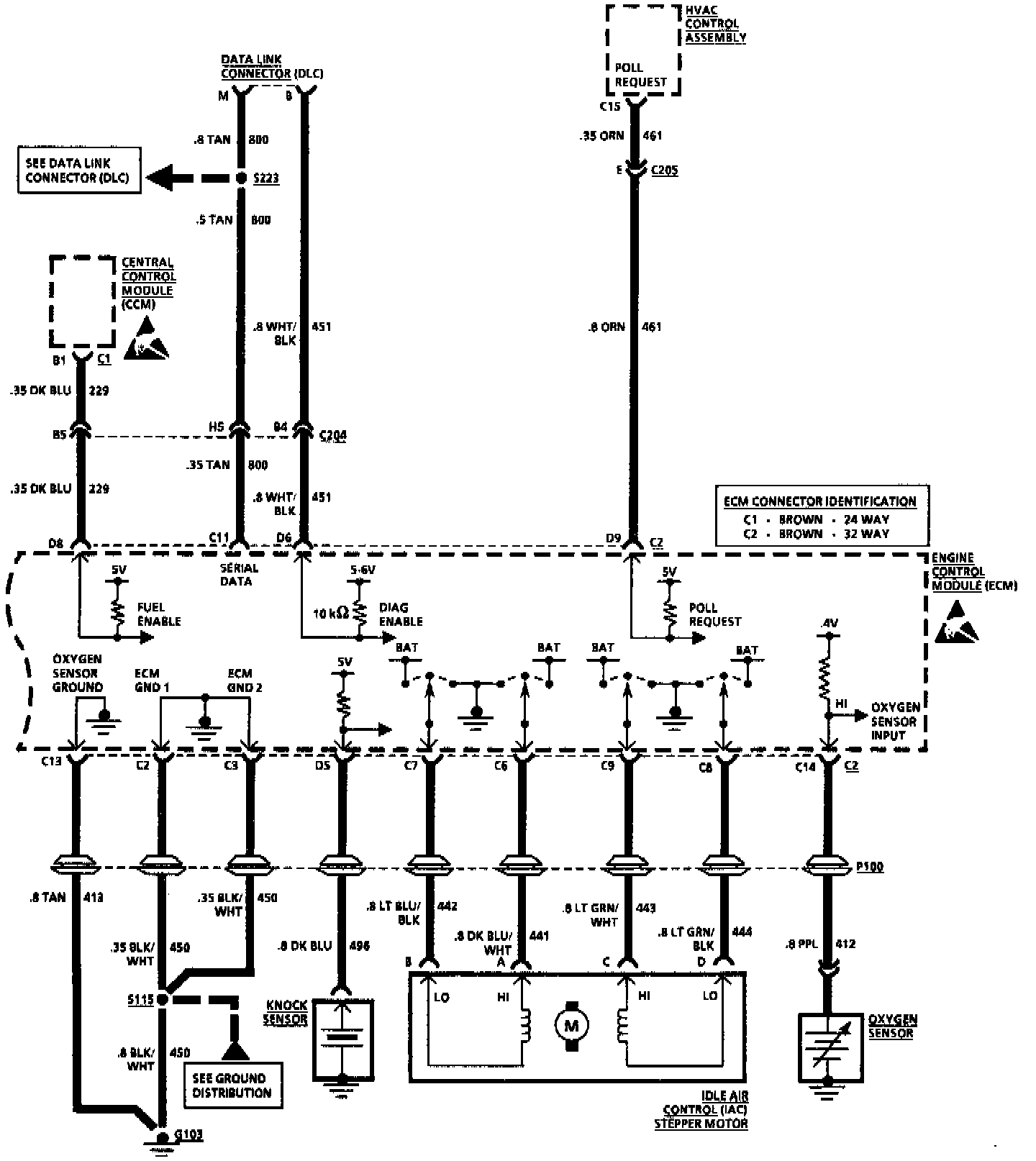

Throttle Body Injection:

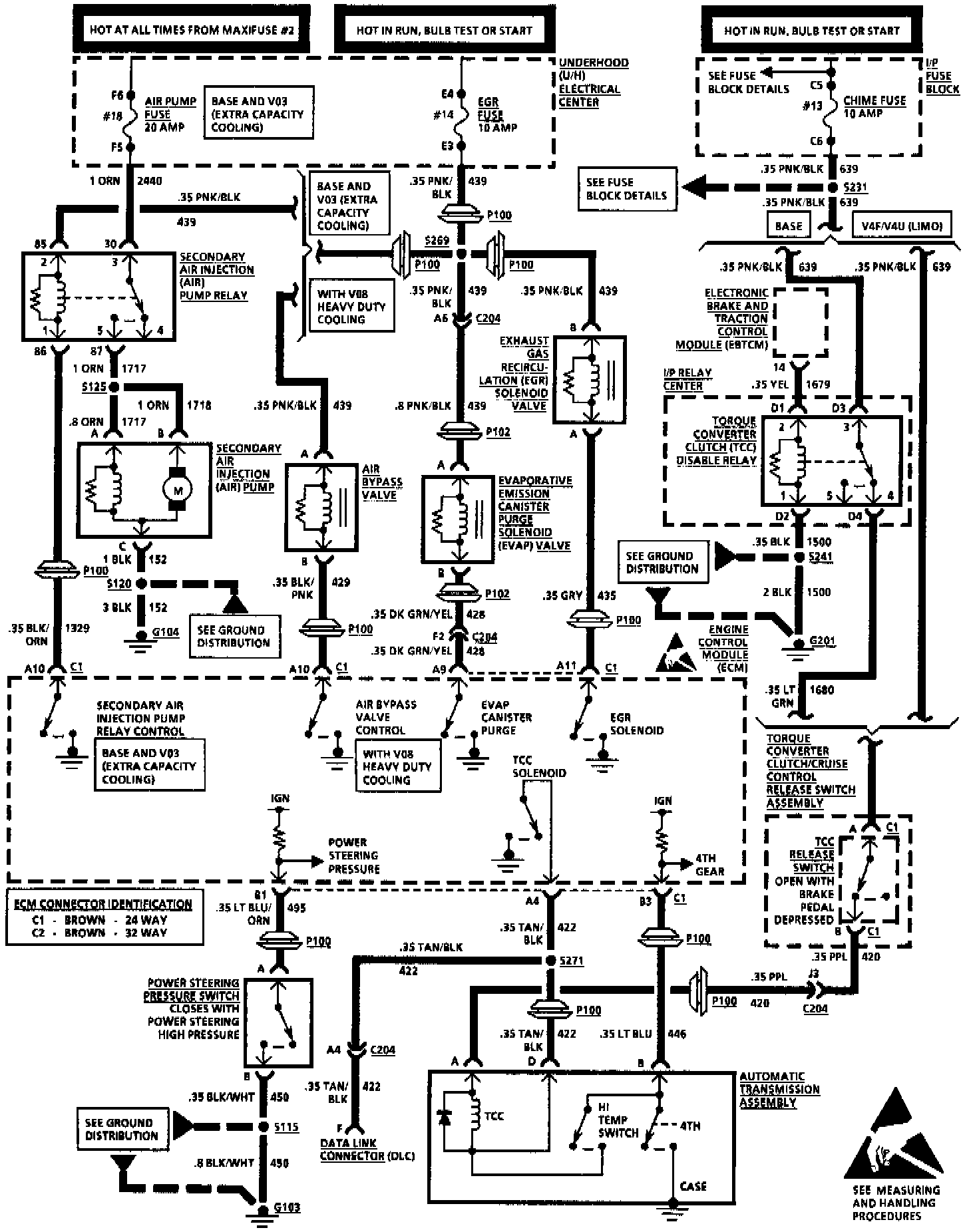

Throttle Body Injection:

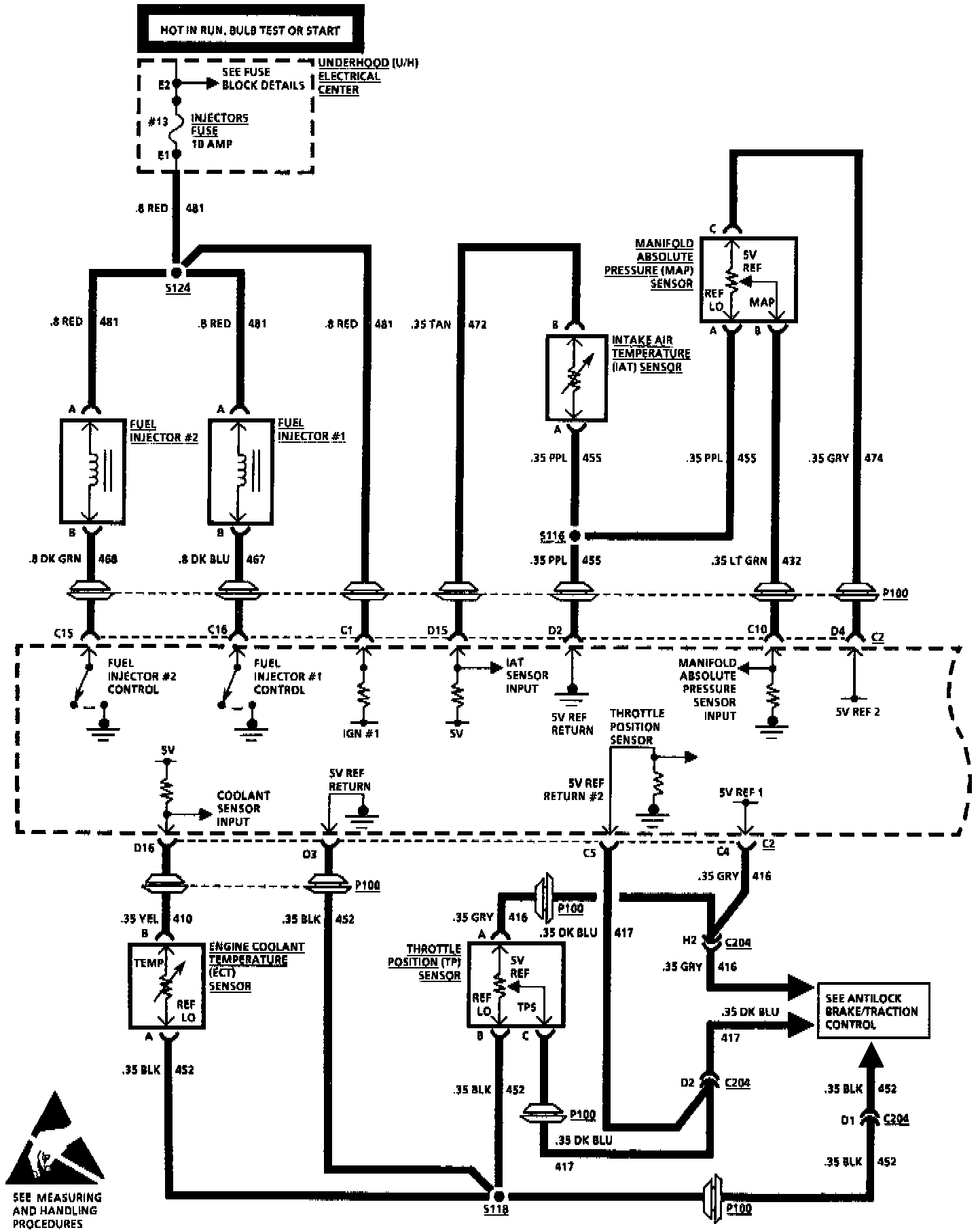

Throttle Body Injection:
