Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Cadillac
>>
1990
>>
Allante V8-273 4.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Antilock Brakes / Traction Control Systems
>>
Electronic Brake Control Module
Electronic Brake Control Module

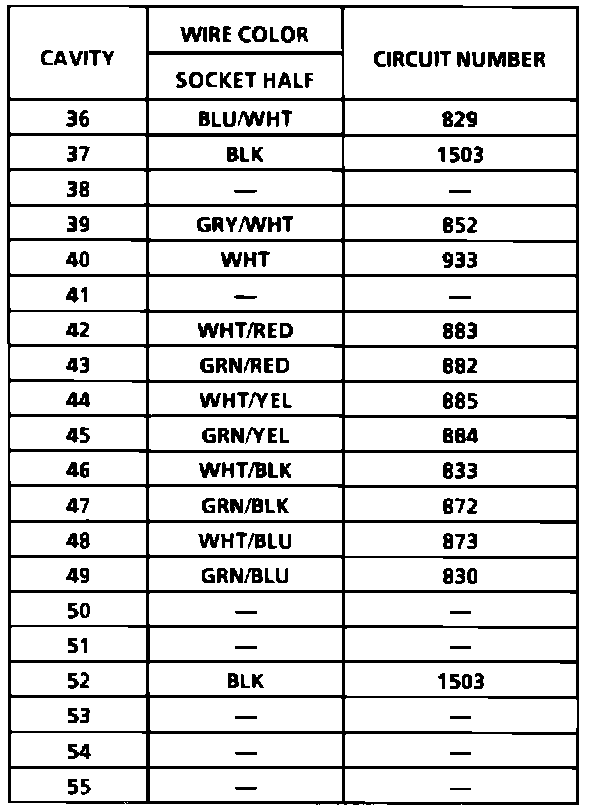

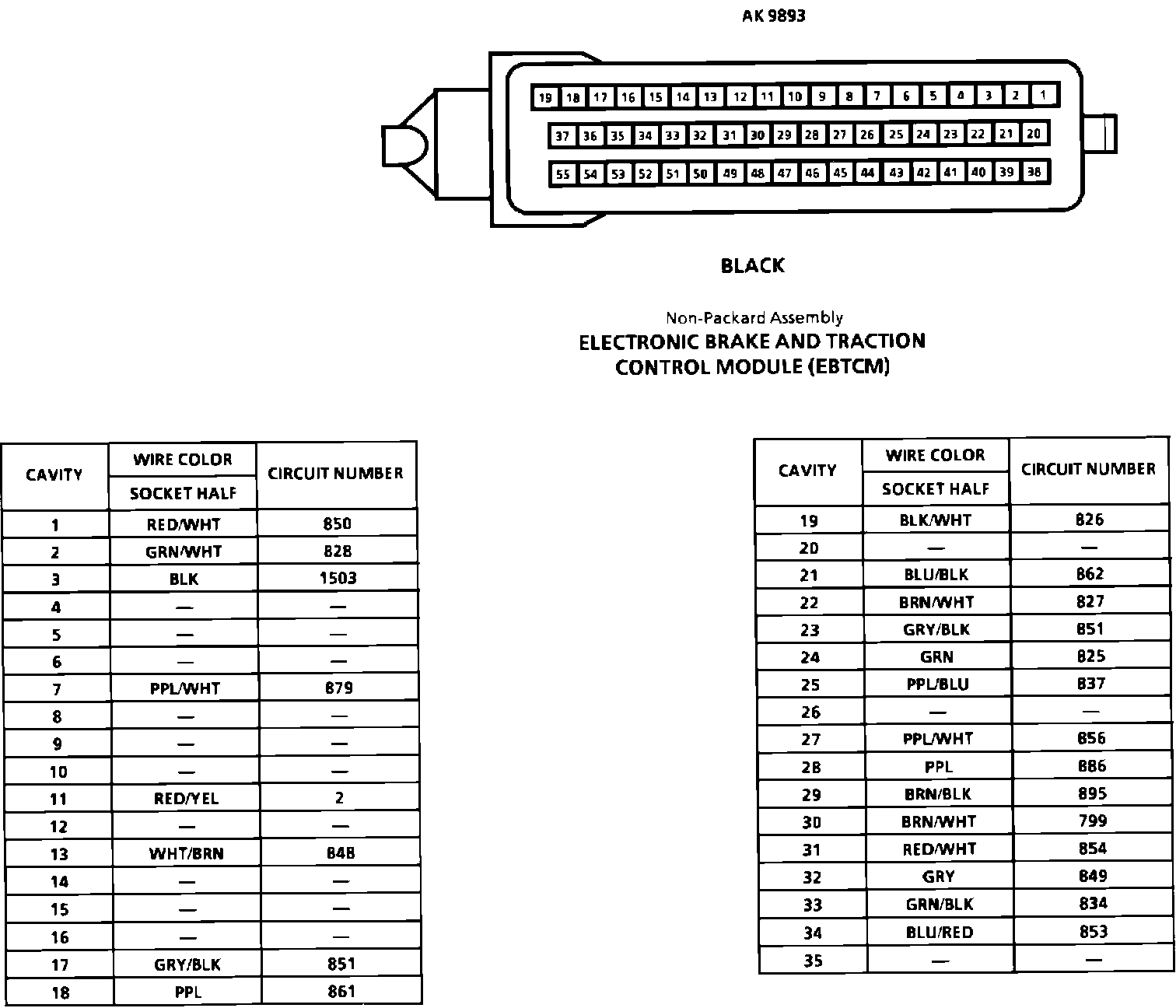

Connector View And Pinout:
Connector View And Pinout:
