Home >> Cadillac >> 1982 >> Seville V8-252 4.1L >> Repair and Diagnosis >> Powertrain Management >> Tune-up and Engine Performance Checks >> Fuel Pressure >> Testing and Inspection

Fuel Pressure: Testing and Inspection

Chart #4.:

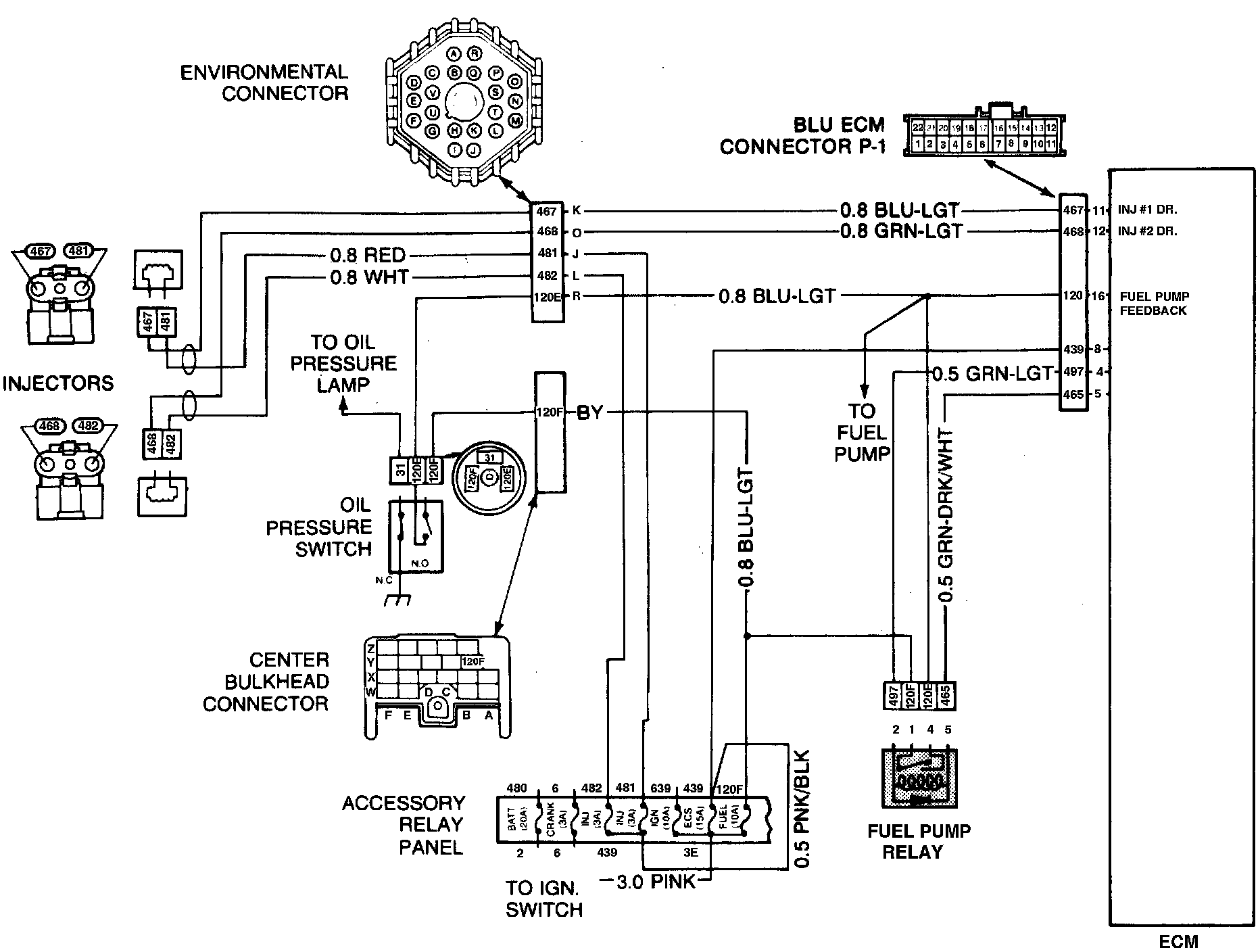

Wiring Diagram.:
