Rear Audio Control Module (ULD)
Rear Audio Control Module (ULD)
Component Connector End Views

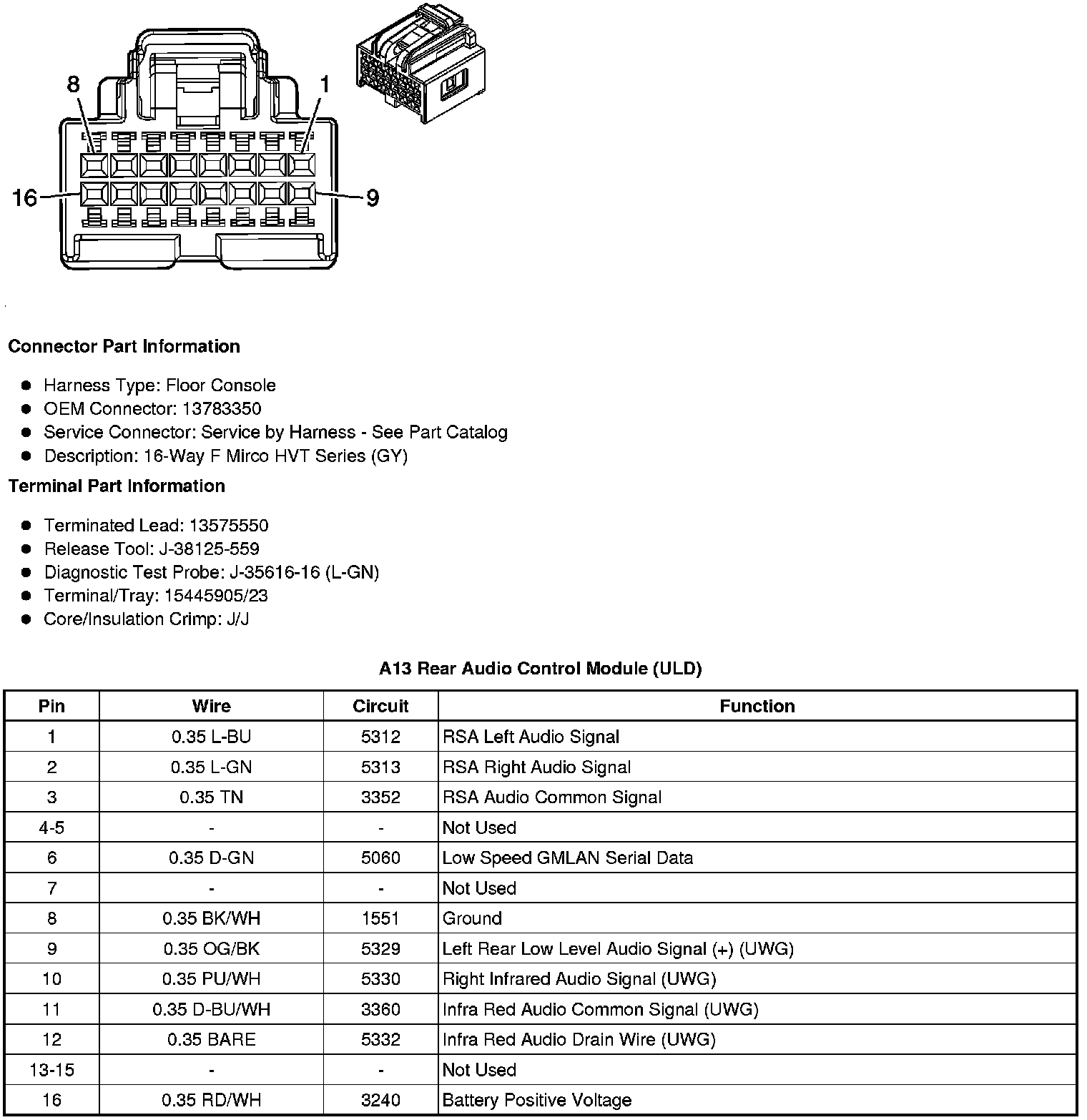

A13 Rear Audio Control Module (ULD)
