Home
>>
Cadillac Truck
>>
2010
>>
SRX AWD V6-3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

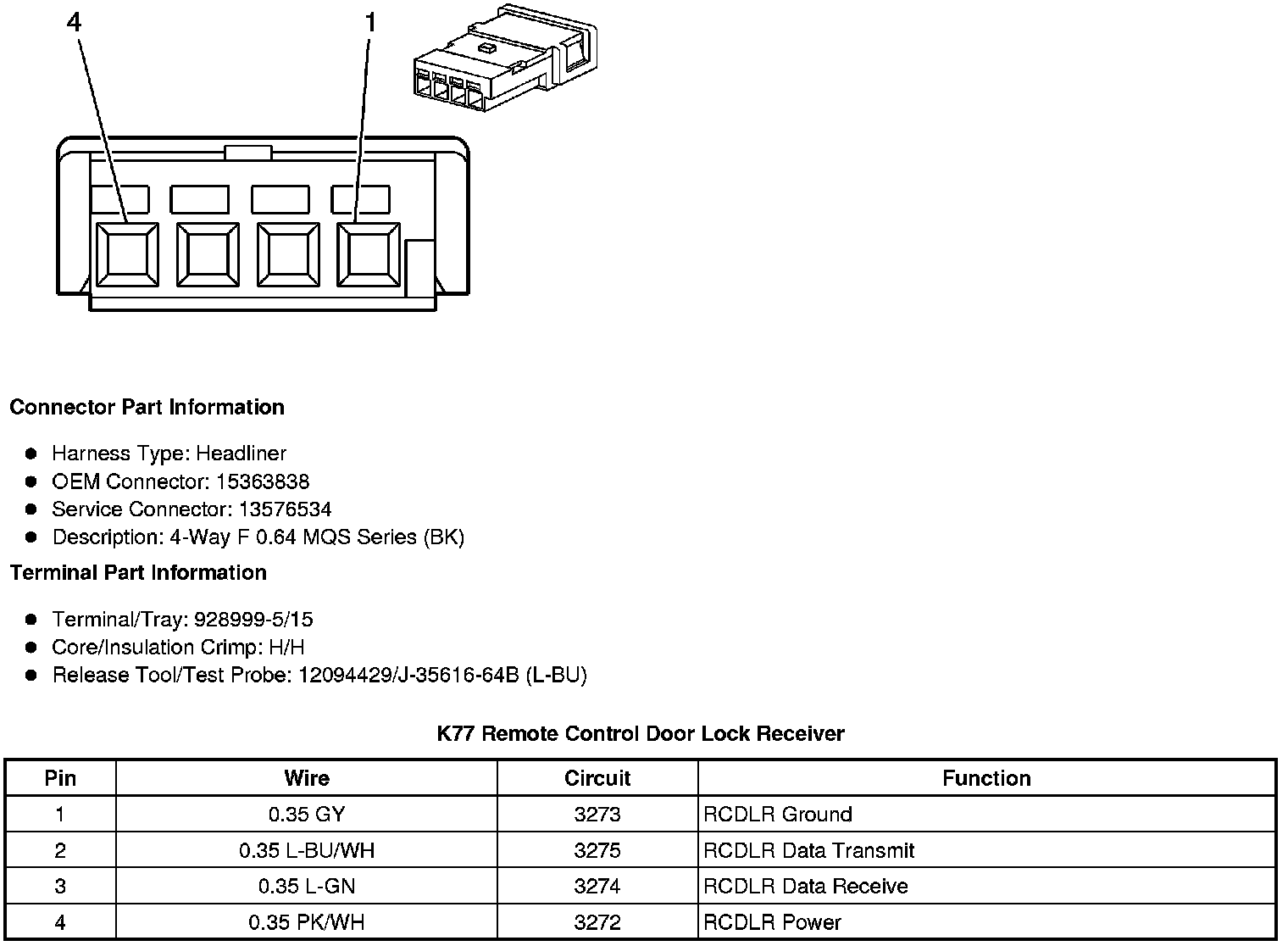

Keyless Entry Receiver
Keyless Entry Receiver
Component Connector End Views
K77
Remote Control
Door Lock Receiver
