Coolant Temperature Sensor/Switch (For Computer): Locations

Powertrain Component Views

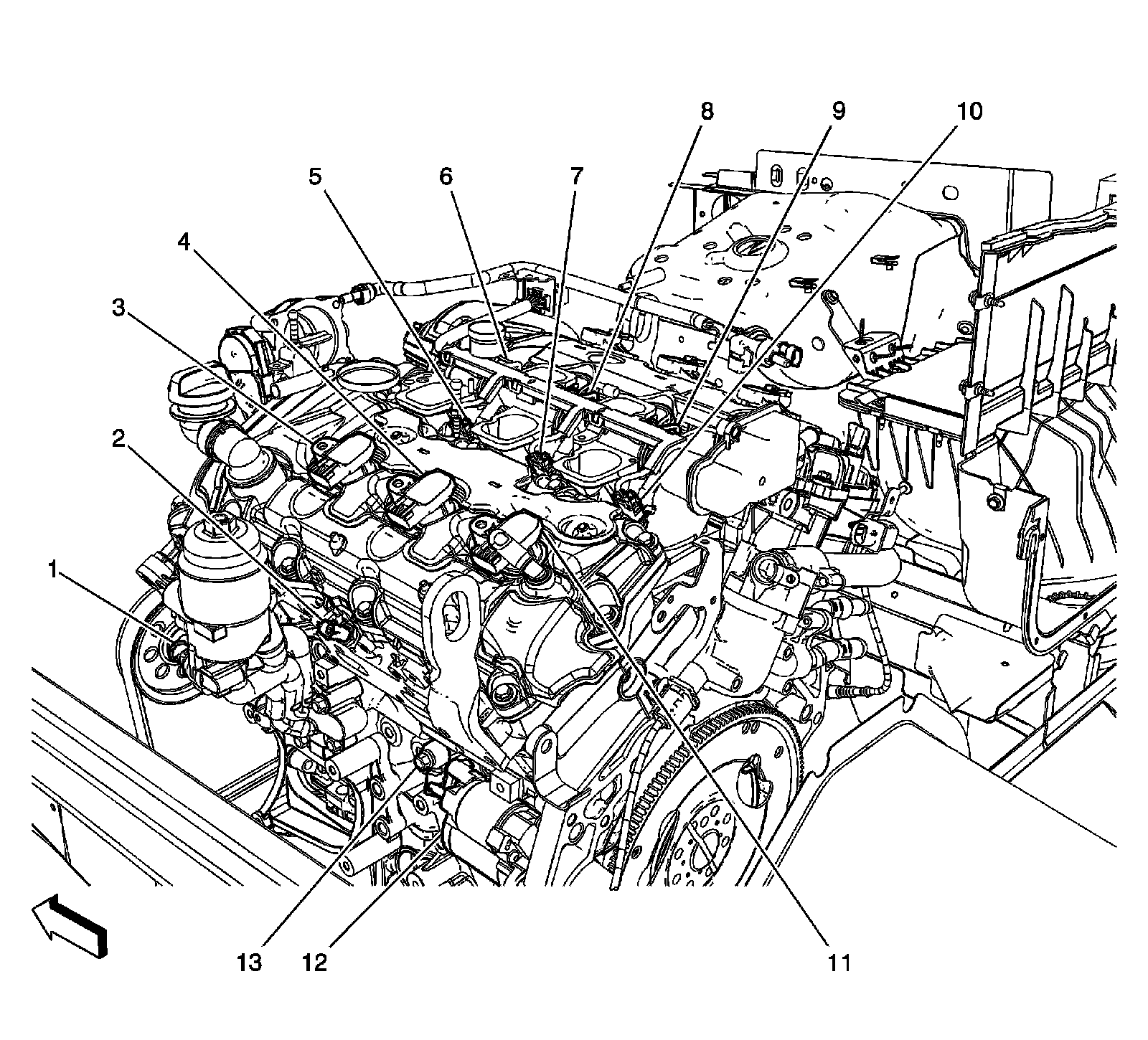

Engine Components 1 of 2 (LY7)




1 - Engine Oil Pressure (EOP) Sensor (LY7)
2 - Engine Coolant Temperature (ECT) Sensor (LY7)
3 - Ignition Coil 2
4 - Ignition Coil 4
5 - Fuel Injector 2
6 - Fuel Injector 1
7 - Fuel Injector 4
8 - Fuel Injector 3
9 - Fuel Injector 5
10 - Fuel Injector 6
11 - Ignition Coil 6
12 - Starter Motor
13 - Knock Sensor (KS) 2

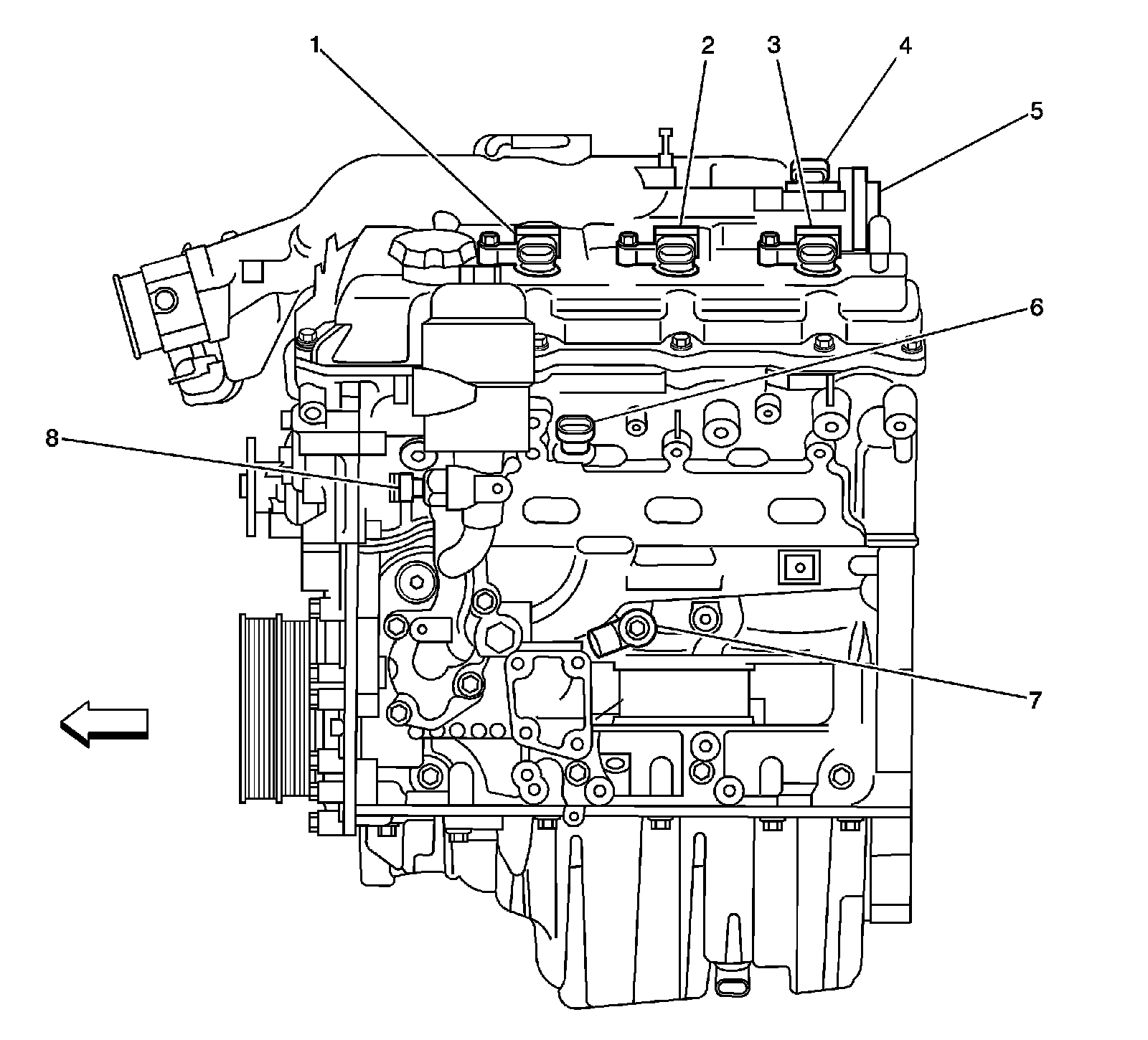

Engine Controls Components - Bank 2 (LY7)




1 - Ignition Coil 2
2 - Ignition Coil 4
3 - Ignition Coil 6
4 - Intake Manifold
5 - Intake Manifold Runner Control (IMRC) Solenoid Valve
6 - Engine Coolant Temperature (ECT) Sensor
7 - Knock Sensor (KS) 2
8 - Engine Oil Pressure (EOP) Sensor
