Map Light



Lighting Systems Connector End Views

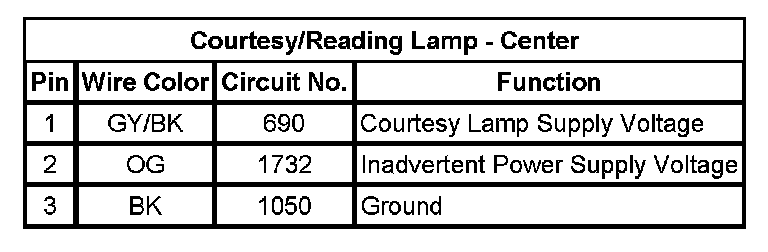

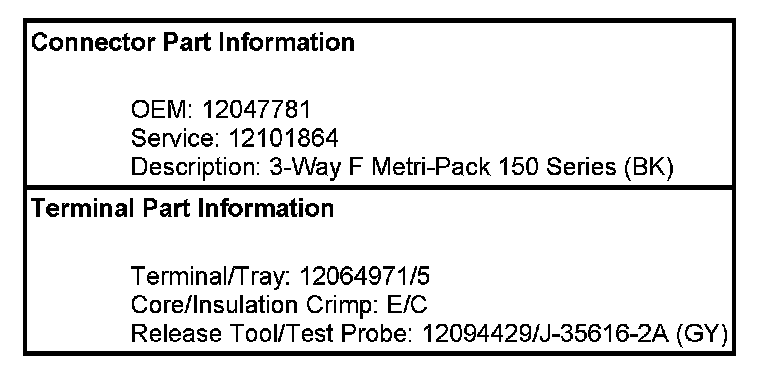

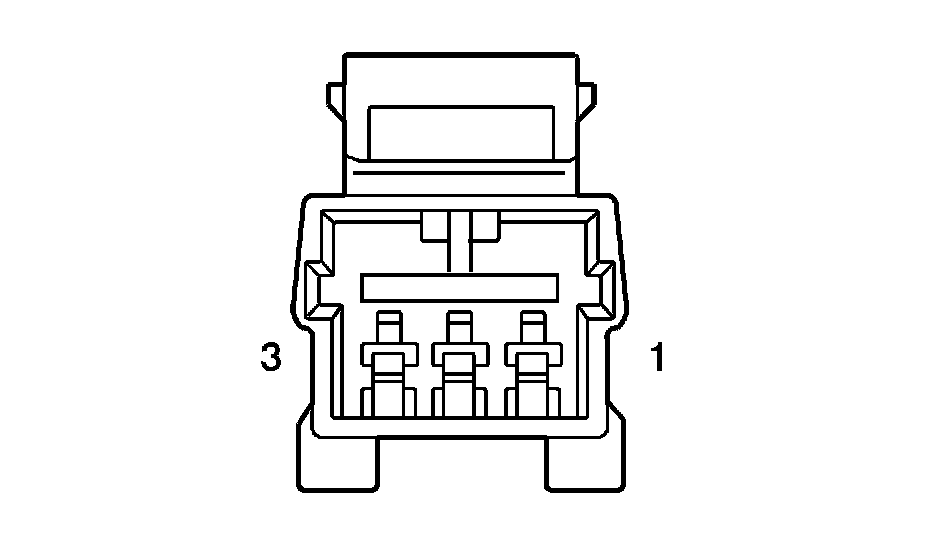

Courtesy/Reading Lamp - Center

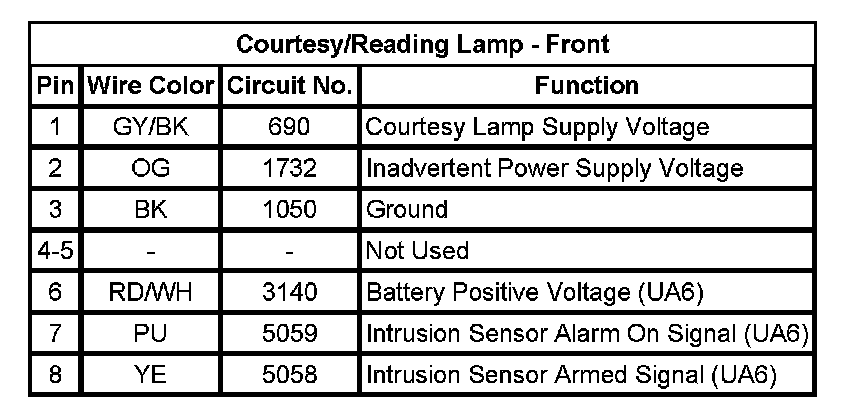

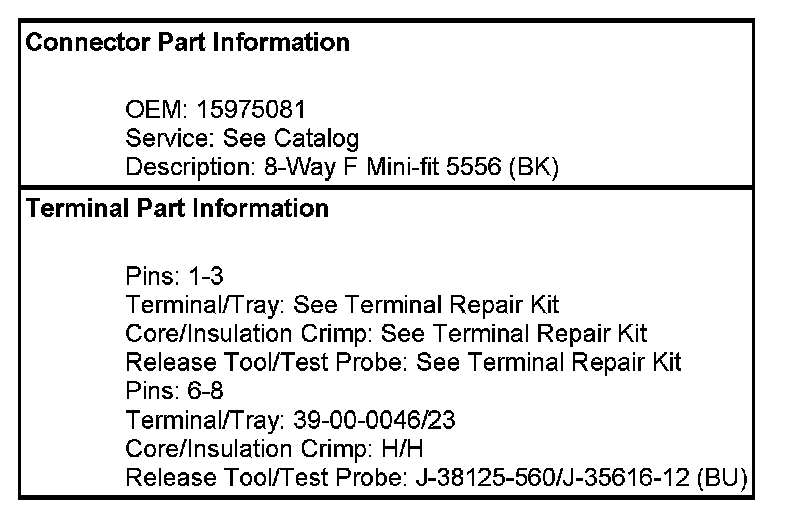

Courtesy/Reading Lamp - Front

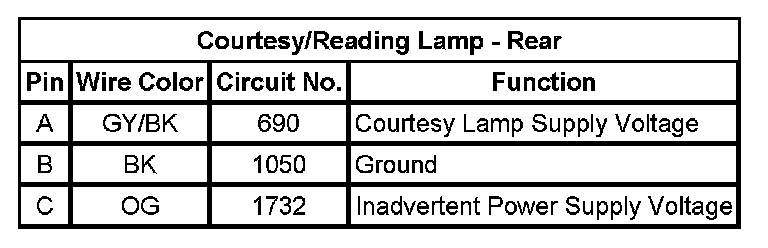

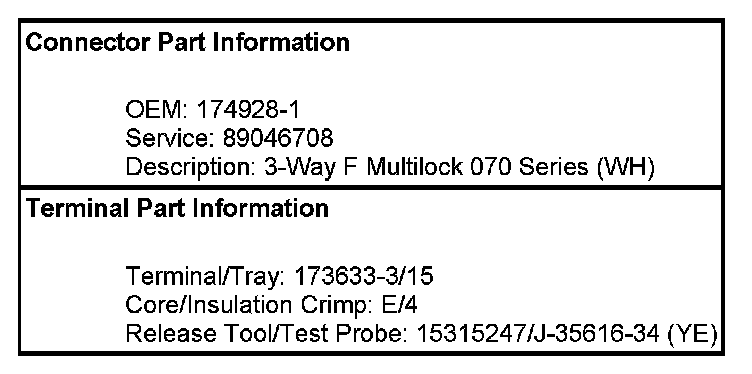

Courtesy/Reading Lamp - Rear
