Home >> Cadillac Truck >> 2007 >> Escalade AWD V8-6.2L >> Repair and Diagnosis >> Heating and Air Conditioning >> Refrigerant Pressure Sensor / Switch >> Locations

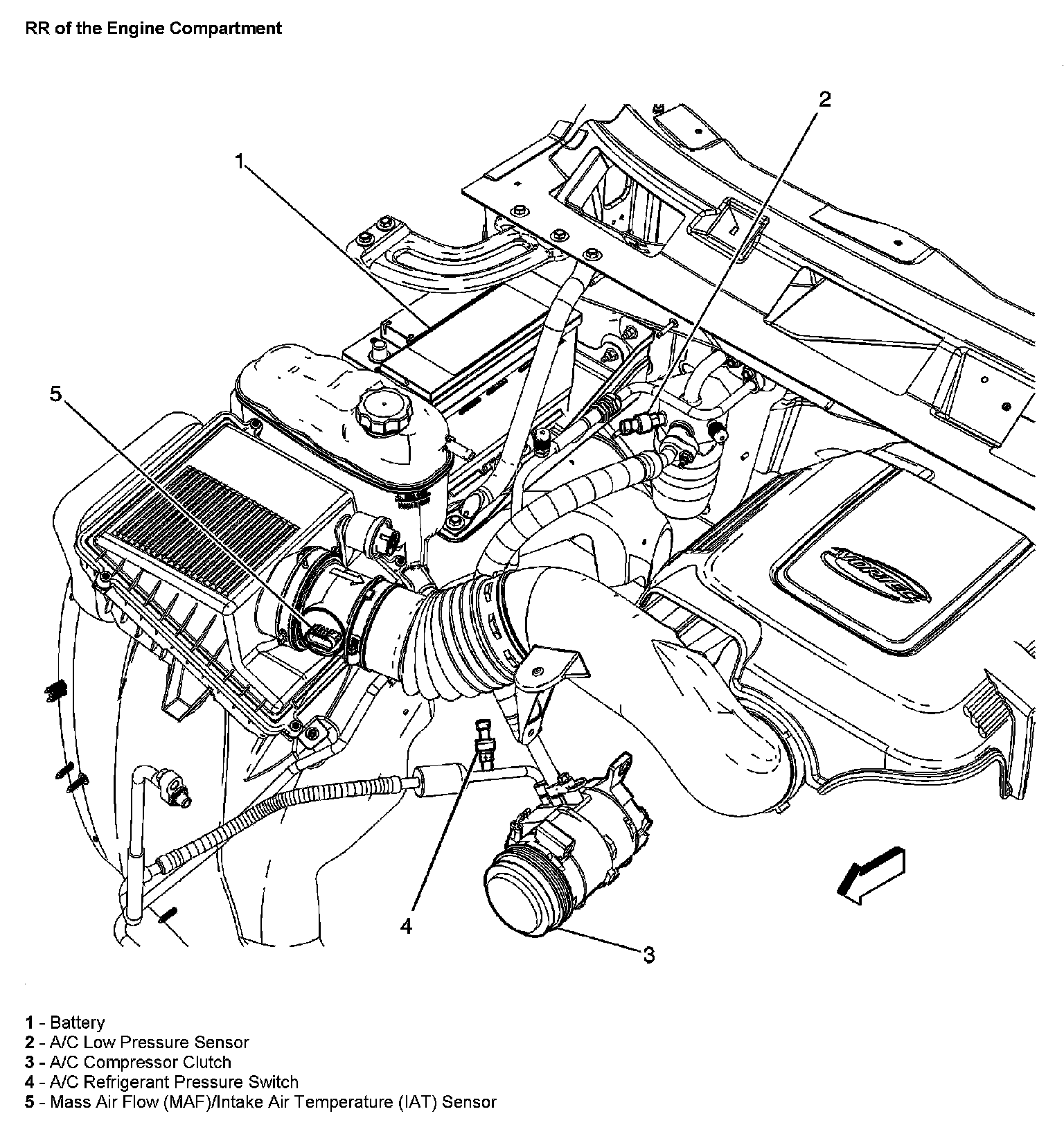

Refrigerant Pressure Sensor / Switch: Locations

RR Of The Engine Compartment:
