Home >> Cadillac Truck >> 2007 >> Escalade AWD V8-6.2L >> Repair and Diagnosis >> Body and Frame >> Body Control Systems >> Body Control Module >> Diagrams >> Auxiliary Body Control Module (XBCM) C1 (Export)

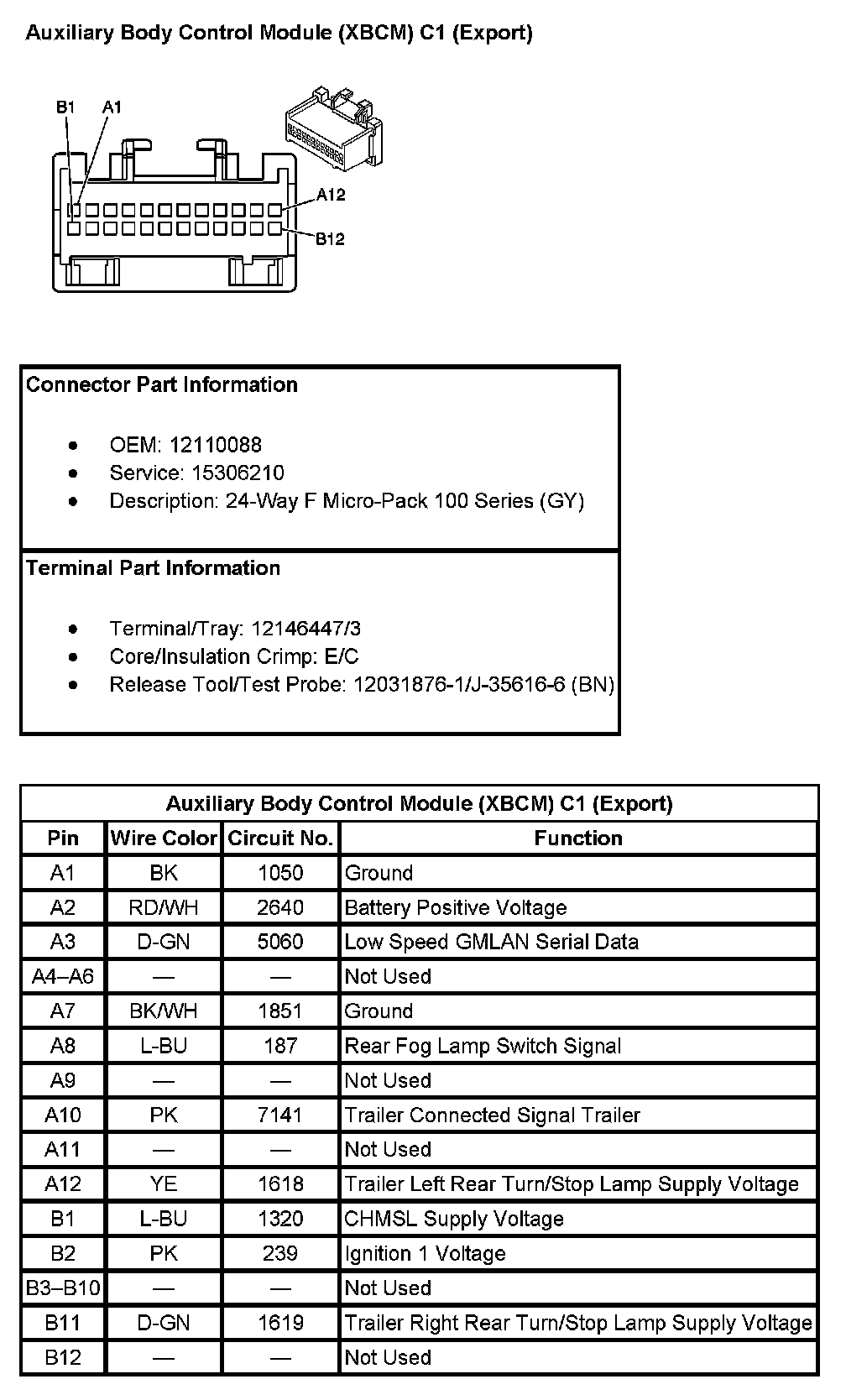

Auxiliary Body Control Module (XBCM) C1 (Export)

Auxiliary Body Control Module (XBCM) C1 (Export):
